Planning Information
Built-In Model 632
Side-by-Side Refrigerator / Freezer

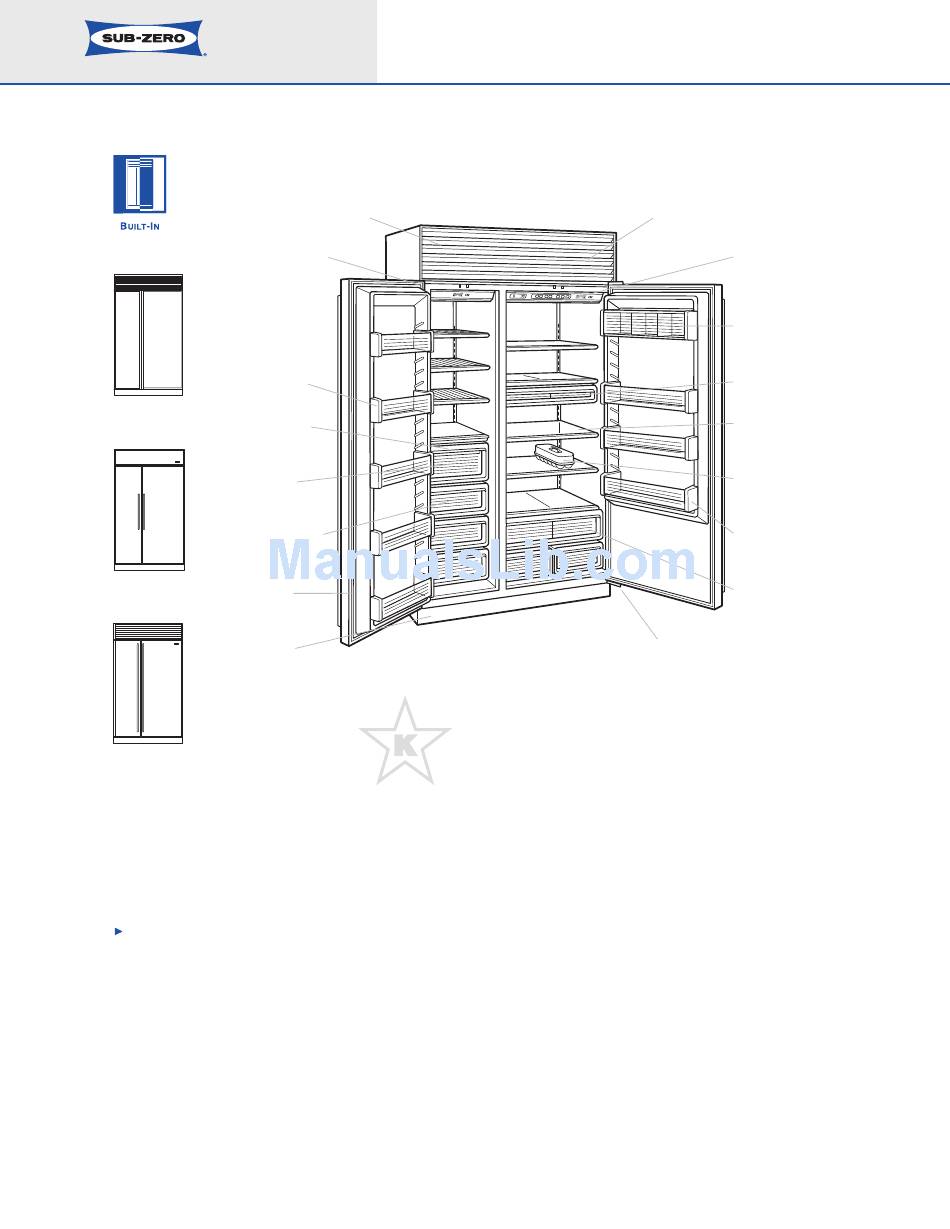

Front venting allows unit
to be completely built in
Serial and model
number plate
Adjustable
door shelves
Model 632/F
Automatic ice
Framed
maker
Ice storage
drawer
Roll-out freezer
baskets
Model 632/O
Four-sided
Overlay
magnetic gaskets
Removable
kickplate
Model 632/S (P/B)
Stainless Steel

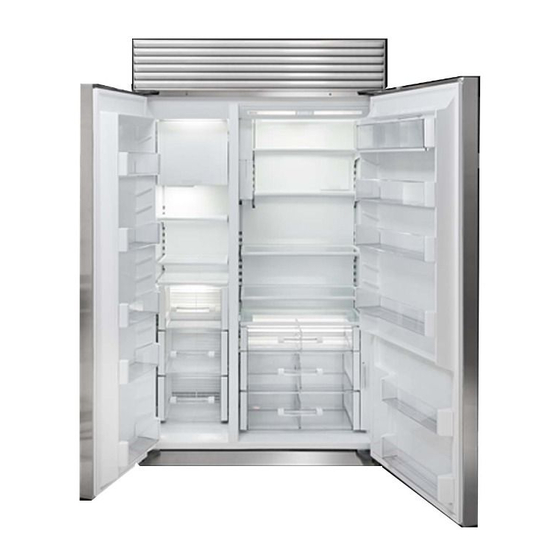

The Sub-Zero Model 632 side-by-side
refrigerator / freezer is available in your
choice of the framed, overlay or stainless
steel design application. Three stainless
steel finishes are offered—classic (/S),
platinum (/P) and carbon (/B).
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
(Stainless steel design shown)
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
P
erhaps no other model is more visible or recognizable
for Sub-Zero than the Model 632. This 48" (1219)
combination refrigerator / freezer is the standard by
which all other built-in refrigerators have been compared.
It offers you the maximum storage space—nearly
30 cu. ft. (850 L)—nearly nineteen on the refrigerator side
and almost ten on the freezer. Beauty and functionality
working together for you and your clients.
Hermetically sealed
refrigeration units
Lighted electronic
control panel
Adjustable dairy
compartment
Adjustable roll-out
utility basket
Adjustable spill-
proof glass shelves
Egg tray
Adjustable door
shelves
High humidity
crisper drawer
Door closers
1
