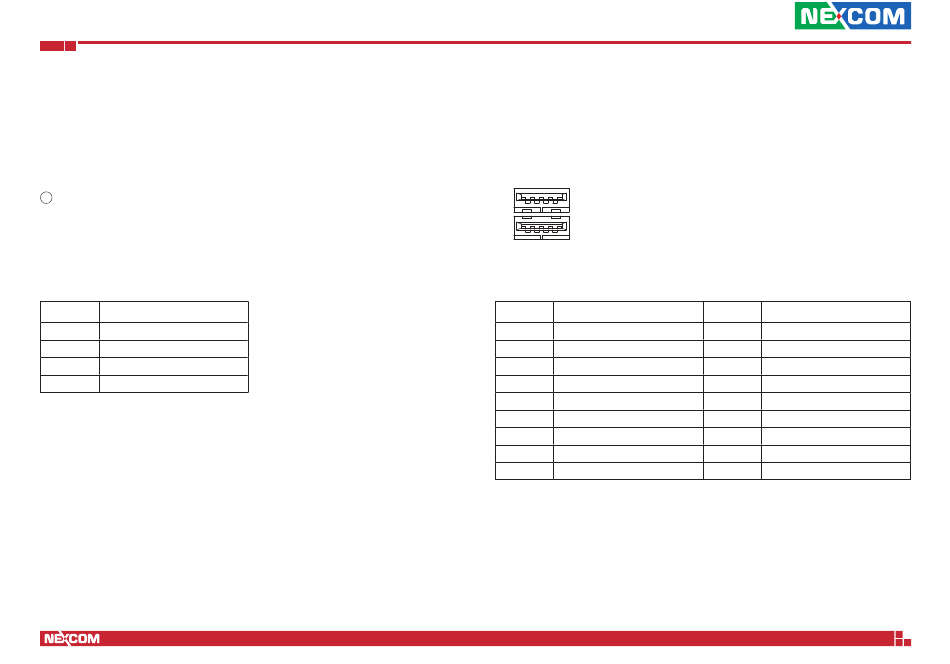

Chapter 2: Jumpers and Connectors
Reset Button
Connector number: SW1
Pin
Definition
1
GND
2
Reset
3
GND
4
GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
USB 3.0 Ports
Connector number: USB1
18
14
10
13
9
5
1
4
Pin
Definition
1
5V
2
D-
3
D+
4
GND
5
RXN
6
RXP
7
GND
8
TXN
9
TXP
21
Pin
Definition
10
5V
11
D-
12
D+
13
GND
14
RXN
15
RXP
16
GND
17
TXN
18
TXP
NSA 5190 User Manual
