Chapter 2: Jumpers and Connectors

Internal Connectors

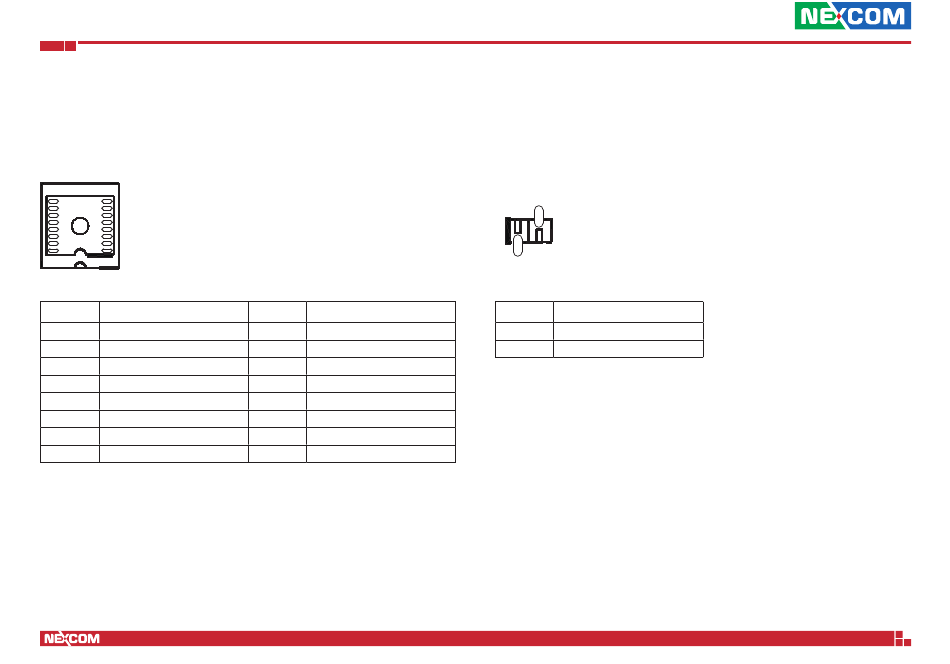

BIOS Socket (for SPI Flash)

Connector location: BIOS_J1
1
Pin Definition
1 IO3
2 3.3V
3 NC
4 NC
5 NC
6 NC
7 CS#
8 MISO
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
9 IO2
10 GND
11 NC
12 NC
13 NC
14 NC
15 MOSI
16 SCK

Power Switch

Connector type: 1x2 2-Pin (2.0 mm header)
Connector location: CN1
1
Pin Definition
1 3.3V Power button
2 GNS
9
NSA 5190 User Manual
