Chapter 2: Jumpers and Connectors

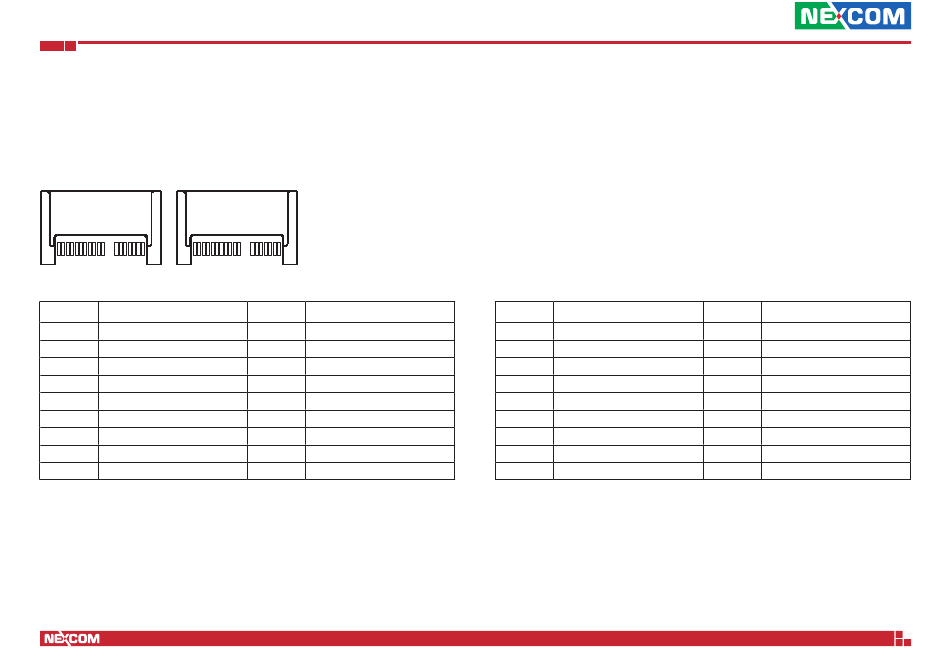

FAN Slot

Connector type: PCIe x1 slot
Connector location: FAN1, FAN2, FAN3
Top side Bottom side
B1 B18 A1
Pin Definition
A1 FAN present
A2 12V
A3 12V
A4 GND
A5 NC
A6 NC
A7 NC
A8 NC
A9 3.3V
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
A18
Pin Definition
B1 12V
B2 12V
B3 5V
B4 GND
B5 SMBCLK
B6 SMBDAT
B7 GND
B8 3.3V
B9 NC
Pin Definition
A10 3.3V
A11 NC
A12 GND
A13 NC
A14 NC
A15 GND
A16 NC
A17 NC
A18 GND
10
Pin Definition
B10 3.3V
B11 NC
B12 5V
B13 GND
B14 FAN PWM
B15 FAN TACH
B16 GND
B17 NC
B18 GND
