Planning Information
Built-In Model 601R
S I D E P A N E L S
7
23 / "
8 (606)
BEHIND FRAME
4"
(102)
3"
(76)

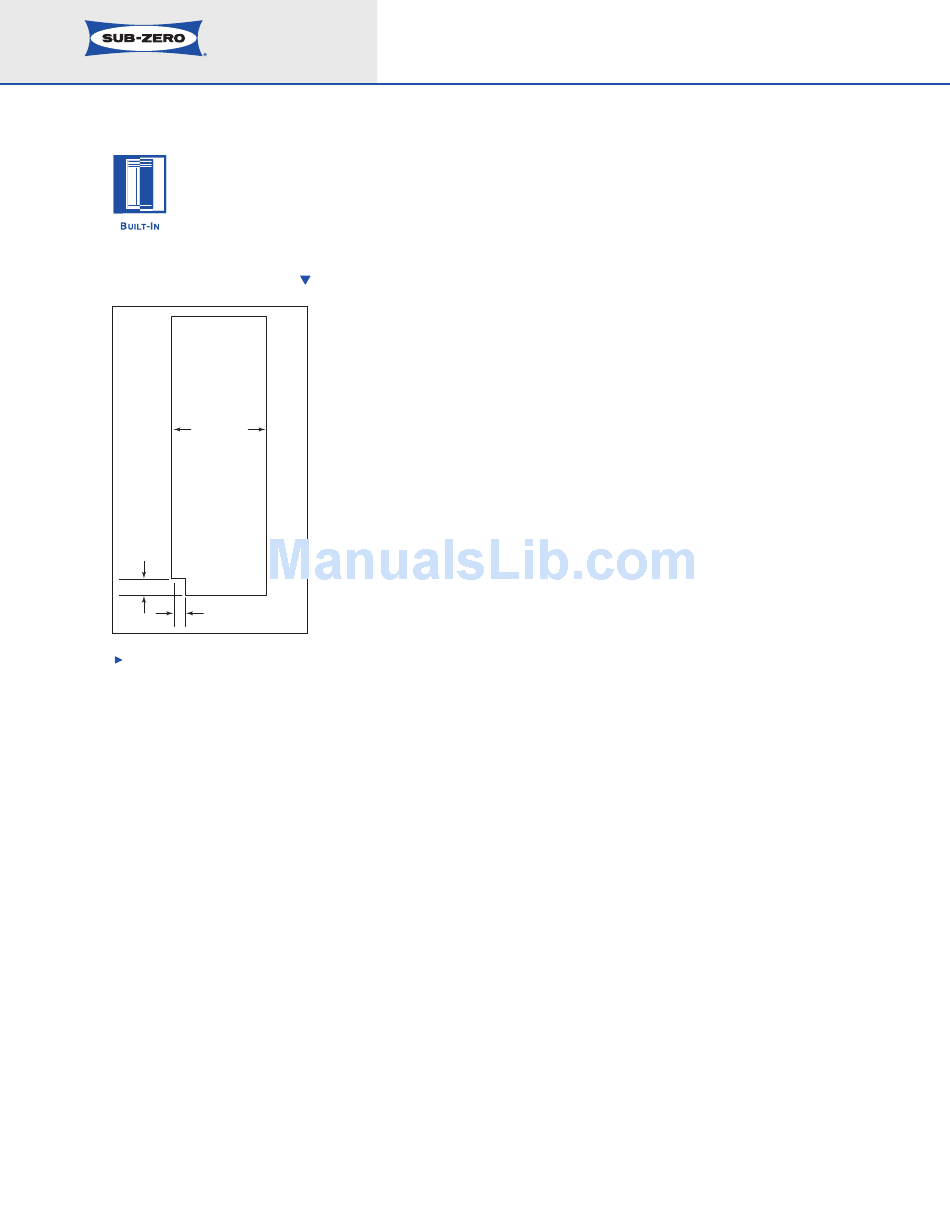

Cut-outs for grille and toe kick area
Dimensions in parentheses are in
millimeters unless otherwise specified.
S I D E P A N E L S
Side panels can be used with the framed, overlay and
stainless steel design applications. When planning for side
panels with the installation of the Built-In model, you need
to be aware of space configuration to achieve a pleasing
fit. Depending on the exact panel you are using with your
unit, the height of the panel will vary.
Cut-outs around the toe kick and grille area are required if
1
a / " (6) thick panel will be inserted into the main frame
4
channel. The panel will need to be 24" (610) deep. Refer to
the illustration on this page for placement of toe kick and
3
grille area cut-outs. If a /
8
panel will abut the main frame and should be 23
deep. The toe kick area may or may not be cut out
depending on the look you want to achieve.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
H A R D W A R E C O N S I D E R A T I O N S
Overlay models come without handle hardware. The
beauty of this design is that you can match the surround-
ing cabinet hardware. You or the cabinet manufacturer
must provide handle hardware to match the overall
decorating scheme.
The handle hardware must be installed before installing
the panel assembly. Use larger D-style handles. If screws
with thick heads are used, the screws will need to be
countersunk into the door before the panel is put into
place. Refer to the full-scale illustrations on pages 11–12.
IMPORTANT NOTE: Sub-Zero does not recommend using
single pull knobs on any of its Built-In models.
Optional stainless steel handles are available in a variety of
diameters and lengths in the classic, platinum and carbon
stainless steel finishes and polished chrome. Contact
your Sub-Zero dealer for specifics. To obtain local dealer
information, visit the Locator section of our website,
subzero.com.
" (10) thick panel is used, the
7
/ " (606)
8
