Installation Instructions
Please Read Before Installing
Overview

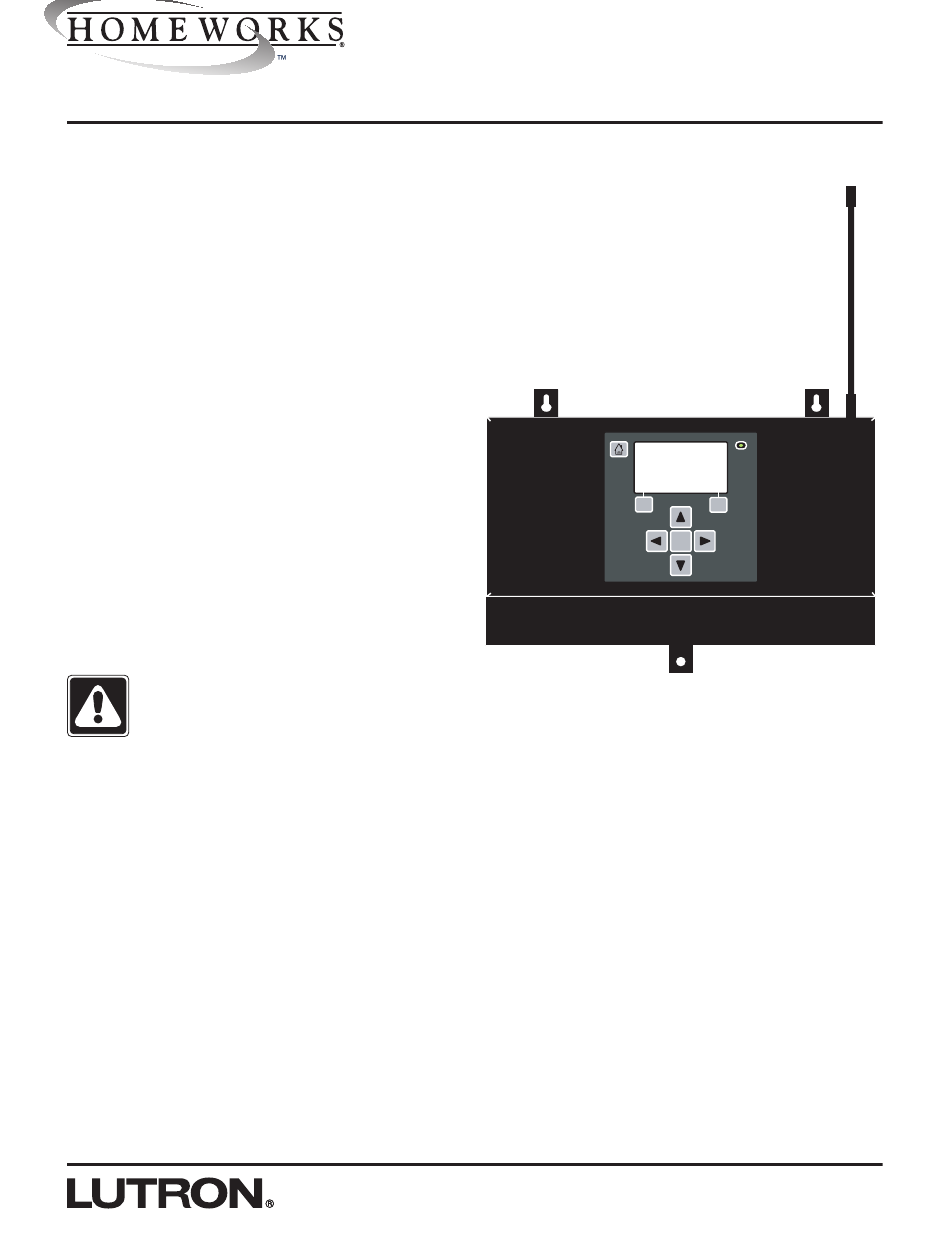

HomeWorks RF Processors comprise the major com-
munication hub of a HomeWorks radio frequency sys-
tem. Each RF Processor will support up to 32 RF
Keypads and up to 64 RF Dimmers or RF Switches.
Each RF Processor covers approximately 2500
square ft. (232m
) of living space.
2
Up to 4 RF Signal Repeaters may be used with each
processor to extend the communications range of the
system.
A maximum of 16 RF Processors may be connected
together in a system to support a total of 1024 RF
dimmers/switches and 512 RF keypads.
Important Notes
Codes: Install in accordance with all local and
national electrical codes.
Power: Use only the adapter provided by Lutron with
the RF Processor (Lutron model # T120-15DC-9-BL).
Caution - Using an adapter not rated for
the following specifications could damage
the processor and possibly overheat the
adapter.
• Input: 120/127VAC, 50/60Hz
• Output: 15VDC/0.9A Class 2
Environment: Ambient operating temperature:
0-40°C, 32-104°F, 0-90% humidity, non-condensing.
Indoor use only.
Cleaning: To clean, wipe with a clean damp cloth.
DO NOT use any chemical solutions. Do not paint
the RF Processor.
Mounting: DO NOT ground the RF Processor. DO
NOT mount the RF Processor in a metal enclosure.
RF Device Placement: RF devices that are to be
controlled by the RF Processor must be located with-
in 30 ft. (9m) of the RF Processor or an RF Signal
Repeater.
Setup: RF Processors will not function until they are
addressed and programmed. See the HomeWorks
Utility online help.
RF Processor
H-RFP-1P, H-RFP-2P
120/127VAC, 50/60Hz (15VDC/0.9A adapter)
H-RFP-1P
H-RFP-2P
*
#
OK
1
