Installation Instructions
Please Read Before Installing
Overview
The 4 Series Processor has three (3) configurable com-
munication links allowing connection of HomeWorks
Wired Keypads, HomeWorks Wired Maestro
Lighting Controls, and HomeWorks Wallbox Power
Modules. The central processor provides lighting presets,
astronomic timeclock events, security mode, vacation
mode, conditional logic, and all other HomeWorks pro-
gramming functions.
A maximum of 10 seeTouch
150 LEDs) may be powered by Link 6 on the 4 Series
Processor. To power additional keypads, or to use key-
pads on Links 4 or 5, an additional power supply is
required.
Important Notes
Codes: Install in accordance with all local and
national electrical codes.
Power: Two separate power inputs exist on this proces-
sor:
1. Processor power is provided by the 2 conductor
harness that is integral to the HWI-LV24 enclo-
sure. The processor is powered when the green
LED labeled "PROC. POWER" is on.
2. Keypads connected to Link 6 are powered by the
supplied plug-in adapter connected to the power
jack labeled "Link 6 15 V
properly when the green "POWER" LED is on. If
the red "SHORT" LED is on, Link 6 is shorted or
overloaded.
Both Processor power and Link 6 power must be
present for the processor and keypads to function
properly.
Processor Power: 12 V , 30 VA
Link 6 Power: 15 V /0.9 A Class 2/PELV
Use only the adapter provided by Lutron
with the 4 Series Processor.
Local
®
keypads (equivalent to
TM
". Link 6 is powered
4 Series Processor
TM
H4-H48-CE
12 V 30 VA

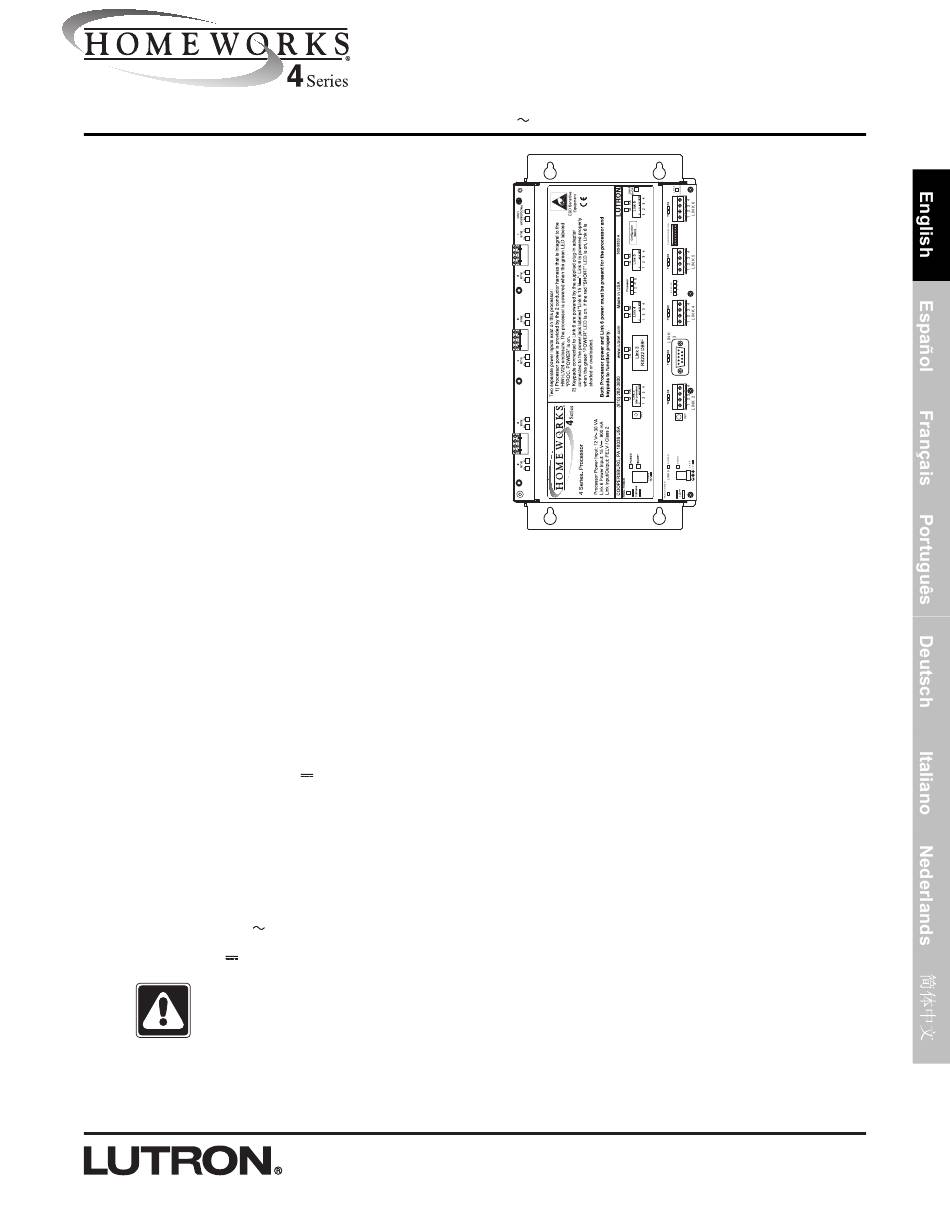

Figure 1 - H4-H48-CE
Environment: Ambient operating temperature:
0-40°C, 32-104°F, 0-90% humidity, non-condensing.
Indoor use only.
Cleaning: To clean, wipe with a clean damp cloth. DO
NOT use any chemical cleaning solutions.
ADDR0
ADDR1
ADDR2
ADDR3
9600
BOOT
1
