Installation Instructions
Please Read Before Installing
Product Overview
This RadioRA 3 wireless processor works with compatible wireless devices, including standard
and hybrid keypads, Pico controls, Radio Powr Savr sensors, RF dimmer and switch modules,
plug-in dimmers, and Triathlon, Sivoia QS wireless and Palladiom wire free shades. Other
products may also be compatible; see individual product spec sheets for details on system
compatibility.
This wireless processor must be powered by an IEEE 802.3af, IEEE 802.3at or IEEE 802.3bt
compliant LPS / SELV PoE or PoE+ power supply.

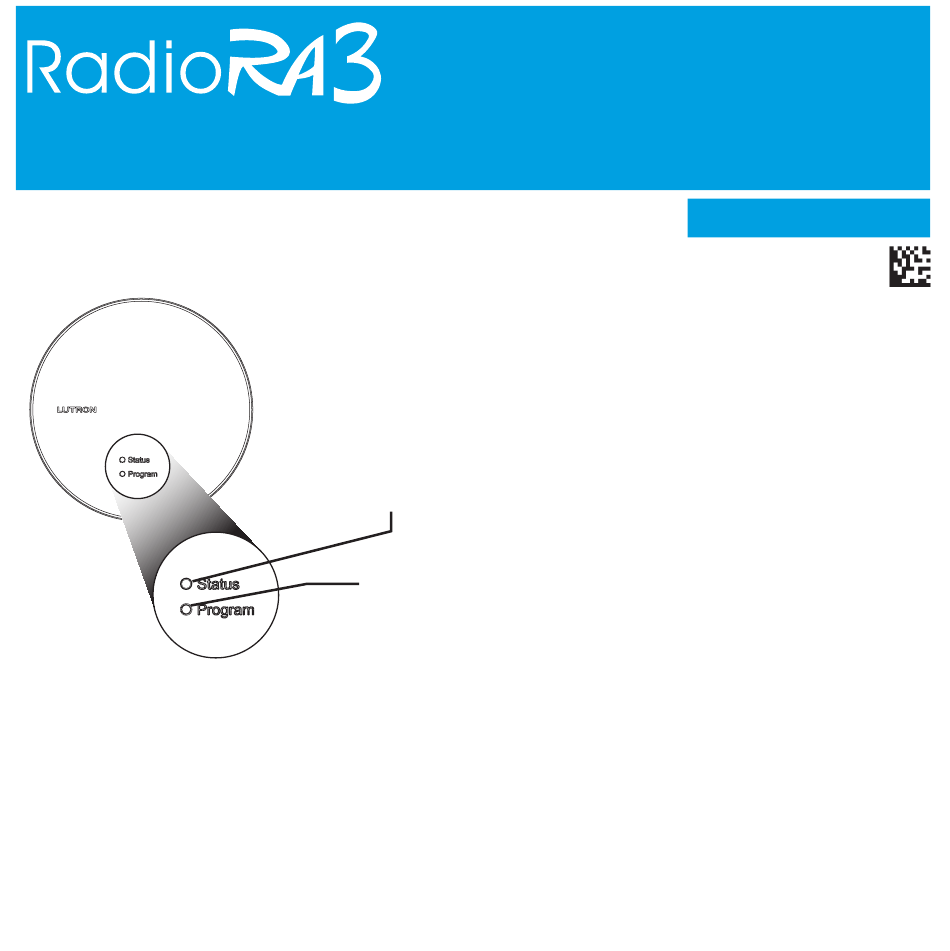

Status LED
Green = Normal operation
Blue = Firmware upgrade in process
Red = Error
Yellow = No Internet connection/access
Program Button
Used to factory reset processor
and to associate into a system
Wireless Processor
RRKE-PROC3
48 V- 100 mA
English
P/N 044411 Rev. A
12/2024
Advertisement
Related Manuals for Lutron Electronics RadioRA3
Summary of Contents for Lutron Electronics RadioRA3
- Page 1 Wireless Processor Installation Instructions RRKE-PROC3 Please Read Before Installing 48 V- 100 mA English Product Overview P/N 044411 Rev. A 12/2024 Status LED Green = Normal operation Blue = Firmware upgrade in process Red = Error Yellow = No Internet connection/access Program Button Used to factory reset processor and to associate into a system...
-
Page 2: Additional Components
Additional Components Note: Mounting adapter must be purchased separately. Available mounting adapters are: L-SMNT-WH shelf-mount, L-CMNT-WH recess-mount, and L-JMNT-WH junction box mount Included in RRKE-PROC3-KIT1 PoE injector and 1.8 m Ethernet cable region-specific plugs Ethernet cable P/N: L-POEI-G-BL Included in RRKE-PROC3-CW Components Recess-mount Junction box... - Page 3 Step 1 — Choose a Location to Install Reliability of Clear Connect wireless communication requires that the wireless processor be centrally-located and within a maximum distance of the specific wireless devices in the system. Wireless processors must be mounted 2 m away from wireless interference sources like microwaves, Wireless Access Points (WAPs), etc.
- Page 4 Step 2 — Select the Mounting Adapter for your Installation RRKE-PROC3-CW comes with a recess-mount adapter and a junction box mount adapter. For model RRKE-PROC3-KIT1, the mounting adapters are sold separately. Available mounting adapters are: L-SMNT-WH shelf-mount, L-CMNT-WH recess-mount, and L-JMNT-WH junction box mount Step 3 —...
- Page 5 Step 4b — Installation using the Junction Box Mount Adapter Ceiling installation Wall installation Junction box Junction box Mud ring Junction box Junction box mount adapter mount adapter Plug in Ethernet cable and attach processor to PoE-enabled network switch or PoE injector Junction box Junction box...
- Page 6 Step 4c — Installation using the Shelf-Mount Adapter (P/N: L-SMNT-WH, sold separately) • Hold the adapter to the wall in Horizontal Vertical the desired location • Using a pencil, mark the location of the screw holes • If using drywall, prep for anchors Level Surface •...
-
Page 7: Troubleshooting
Step 5 — System Setup For more information, please refer to the Getting Started Guide, which can be found in the RA3 Support Center: www.lutron.com/RA3support LED Diagnostics Mode / Error LED Pattern Description Normal Operation Status LED blinks green every 10 seconds Software Update Status LED blinks blue Error... -
Page 8: Customer Assistance
The Lutron logo, Lutron, Athena, Clear Connect, HomeWorks, myRoom, Palladiom, Pico, RadioRA 3, Radio Powr Savr, Sivoia QS, and Triathlon and are trademarks or registered trademarks of Lutron Electronics Co., Inc. in the US and/or other countries. Apple, Apple Watch, HomeKit, HomePod.
