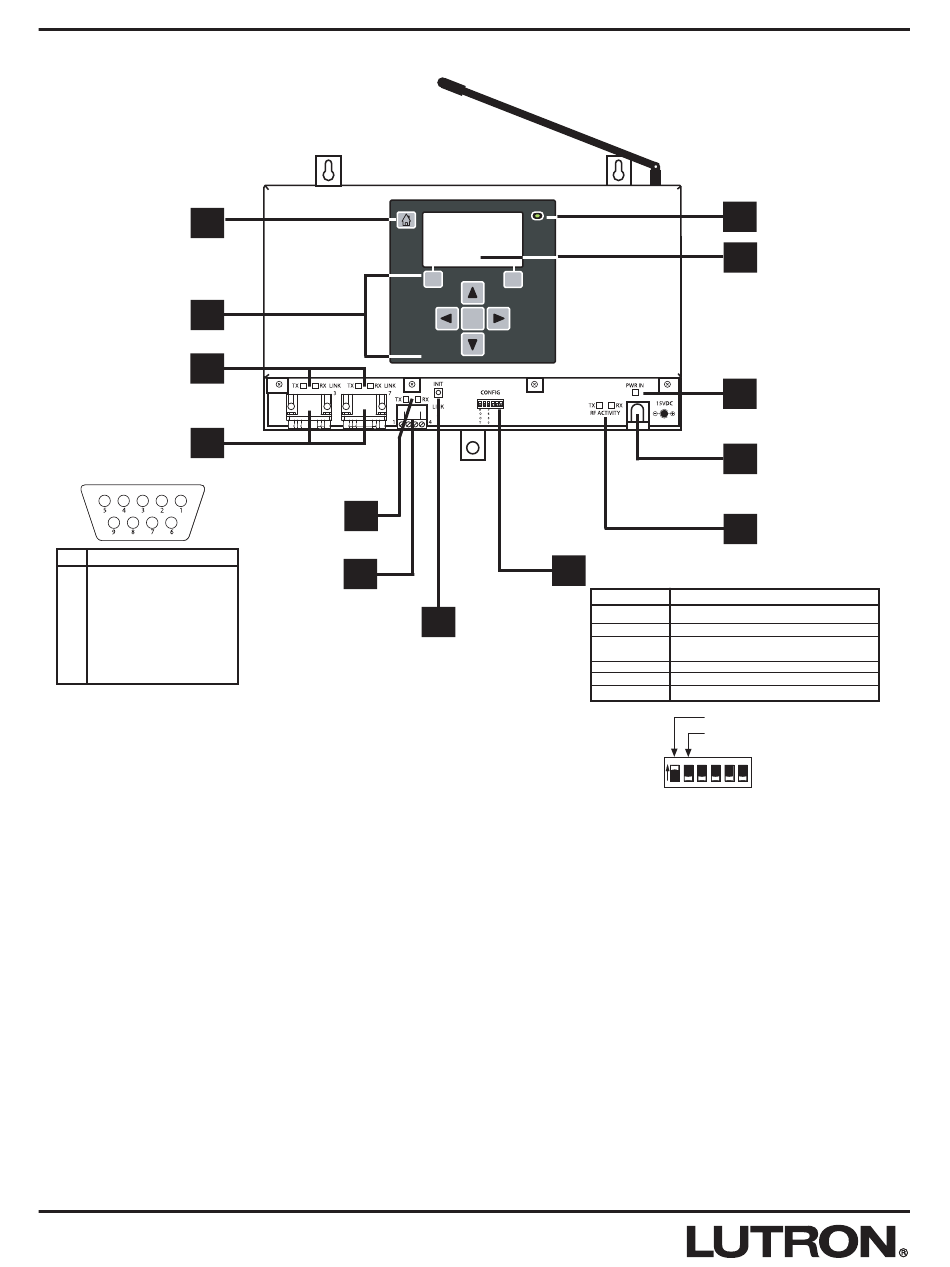

Operation

Home Key
1
Menu
2
Navigation
Keys
RS-232 Link
3
Activity LEDs
RS-232 Ports
4
(Links 3 and 7)
PIN Name Description
1 DCD Data Carrier Detect
2 TXD Transmit Data
3 RXD Receive Data
4 DSR Data Set Ready
5 GND Ground
6
DTR Data Terminal Ready
7 CTS Clear To Send
8
RTS Request To Send
9 RI Ring Indicate
1. Home Key: Returns the user to the Home Screen.
2. Menu Navigation Keys: Used to navigate the various
menus and screens for the processor.
3. RS-232 Link Activity LEDs: The LEDs will illuminate
when there are any RS-232 signals being transmitted
(TX LED) or received (RX LED) on that link.
4. RS-232 Ports (Link 3 and Link 7): Standard 9-Pin male
connectors for connecting to a computer for program-
ming, to a modem for remote programming, or to an
external control system (A/V system, HVAC, etc.).
5. Inter-Processor Link Activity LEDs: The LEDs will illu-
minate when there are any processor communication sig-
nals being transmitted (TX LED) or received (RX LED) on
that link.
6. Inter-Processor Link: Allows up to 16 processors (both
RF and Wired) to be connected together.
7. Initialize Button: Used to reset the processor.
4
*
Inter-Processor
5
Link Activity
LEDs
Inter-Processor
6
Link (Link 2)
Initialize
Button
#
OK
ON
1 2 3 4 5 6
Configuration DIP
8
Switches
DIP Switch
7
8. Configuration DIP Switches: All DIP switches should
be placed in the DOWN position for normal operation.
The HomeWorks
any subsequent changes to the DIP switches are
required.
9. RF Link Activity LEDs: The LEDs will illuminate when
there are any RF signals being transmitted (TX LED) or
received (RX LED) on that link.
10. Power Input Jack: Input jack for the 15VDC adapter.
Center pin is positive.
11. Power In LED: This LED illuminates when power from
the adapter is present at the Power Input Jack.
12. LCD Display: Displays programming and diagnostic
information. The LCD Display will shut off after 45 min-
utes of inactivity. To restore the display, simply press
any key.
13. Display Power LED: This LED will illuminate when the
LCD Display has power.
Display Power
13
LED
LCD Display
12
Power In LED
11
Power Input
10
Jack
RF Link
9
Activity LEDs
UP DOWN
Boot Mode Normal Mode
1
Not Used
2 Normal Mode
3 9600 Baud User-Configured
Baud Rate
Not Used
4 Normal Mode
Not Used
5 Normal Mode
6 Battery Disconnect Normal Mode
UP (ON)
DOWN (OFF)
ON
1 2 3 4 5 6
Utility will prompt the programmer if
®
