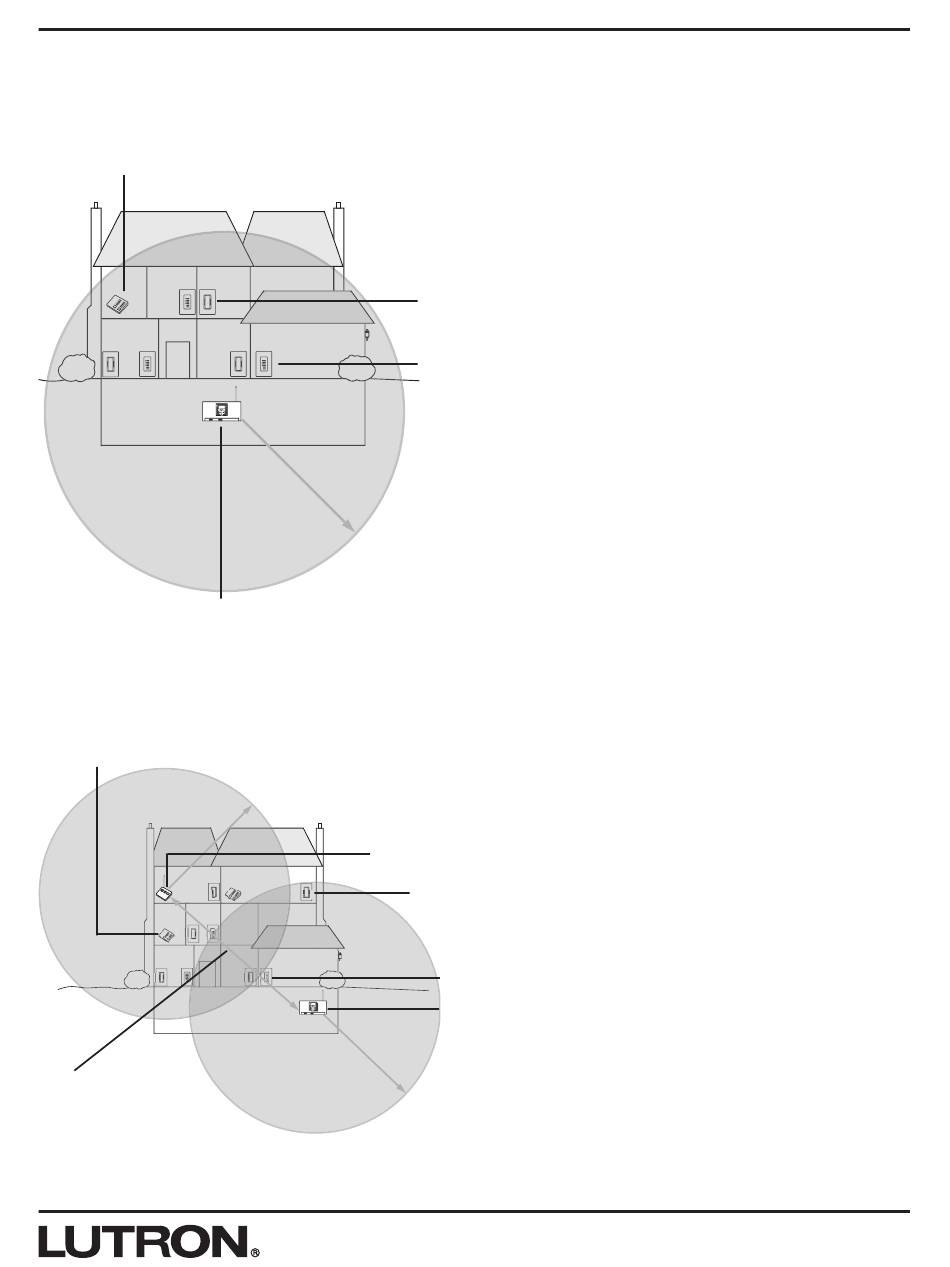

RF Coverage Diagrams
Home A: 2500 sq. ft. (232m
within 30 ft. (9m) of RF Processor
RF Tabletop
Keypad
* Start Start
RF Processor
Home B: 2500 sq. ft. (232m
RF
Tabletop
Keypad
60 ft. (18m) maximum
between RF
Processors and
Repeaters, or
between Repeaters
) or less - all RF devices
2
# #
P/N 292 153 P/N 292-153
30 ft. (9m) maximum
) or greater - some RF devices more than 30' (9m) from RF Processor
2
30 ft. (9m) maximum
RF Signal Repeater
* Sta Sta
*
1 1 2 2 3 3 4 4
RF Dimmer
RF Keypad
RF Dimmer
RF Keypad
RF
Processor
30 ft. (9m) maximum
System Communication Notes
• RF Dimmers and Keypads must be
located within 30 ft. (9m) of an RF
Signal Repeater or an RF Processor.
• RF Signal Repeater must be located
within 60 ft. (18m) of an RF Processor
or another RF Signal Repeater.
• Multiple processors or repeaters may be
necessary to provide adequate cover-
age. Up to 16 processors (with up to 4
repeaters each) may be connected
together in a system.
• RF Dimmers cannot be controlled by the
system and RF Keypads do not function
until they are addressed and pro-
grammed. See the HomeWorks
online help.
