Toren 2m
PST.110.046

Advertisement

loading
Need help?

Need help?

Do you have a question about the PST.110.046 and is the answer not in the manual?

Questions and answers

Summary of Contents for BOERPLAY PST.110.046

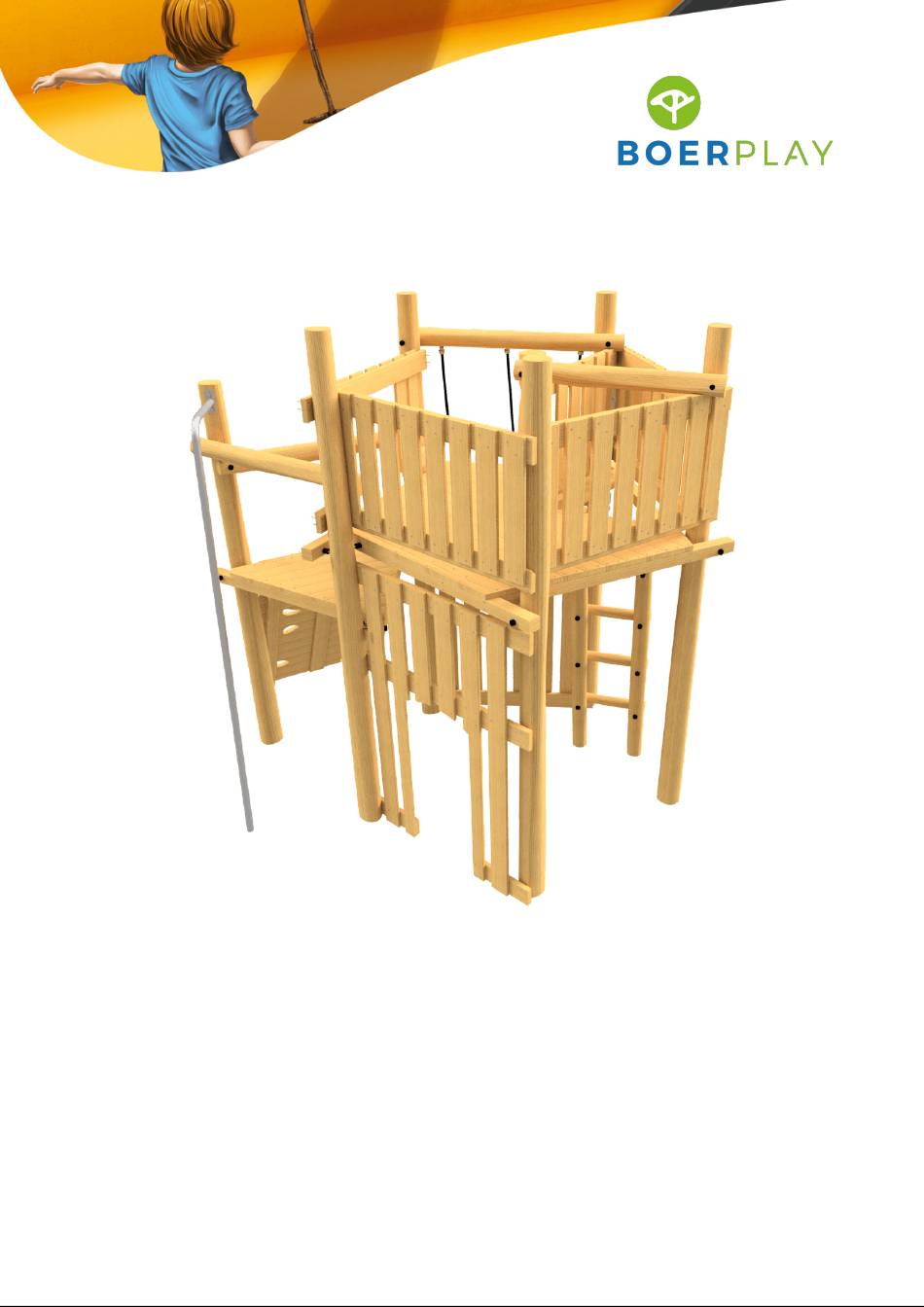

  • Page 1 Toren 2m PST.110.046...
  • Page 2 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 3,58 m 3,05 m 2,09 m 0,92 m 0,21 m 0,00 m 3,05 m 1,95 m 1,45 m 0,00 m PST 110 046 © Copyright BOERplay 30-3-2023 Revision: C...
  • Page 3 Zona libre de obstáculos Zone libre d’obstacles 6,36 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 110 046 © Copyright BOERplay 30-3-2023 Revision: C...
  • Page 4 Bodenplan Plan de superficie Plan de surface 1,19 m 0,73 m 1,45 m 2,98 m 1,07 m 0,35 m 0,23 m 0,61 m Grondmarkering Ground level marker 0,52 m 0,70 m PST 110 046 © Copyright BOERplay 30-3-2023 Revision: C...
  • Page 5 Wandje 0,70 m Adventure Play Poort 1,95 m Wand 1,95 m L = 1,1 m Railing Klimwand 1,45 m vloer Handtouw Klimtouw trio Schorsgeschikt Glijpaal 3,2 m Adventure Play Ladder1,95 m Adventure Play PST 110 046 © Copyright BOERplay 30-3-2023 Revision: C...
  • Page 6 Wandje 1,0 m easy Adventure Play Wandje 0,70 m Adventure Play Poort 1,95 m Wand 1,95 m L = 1,1 m Railing Klimwand 1,45 m vloer Handtouw Klimtouw trio Schorsgeschikt Glijpaal 3,2 m Adventure Play Ladder1,95 m Adventure Play © Copyright BOERplay Revision:...
  • Page 7 3,75 m 3,27 m 2,50 m 2,15 m 0,70 m 0,00 m 3,75 m 2,50 m 2,15 m 0,70 m 0,00 m PST 110 046 © Copyright BOERplay 30-3-2023 Revision: C...
  • Page 8 LOGBOEK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type aanduiding Adventure Play Artikelnummer PST.110.046 Naam toestel Toren 2m Maximale valhoogte 2,0 m Bouwjaar 2023 Certificaat 061503...
  • Page 9 LOGBOEK Inspectie en onderhoud Datum Tijdstip Naam Naam Geconstateerde Te vervangen inspectie inspectie uitvoerder uitvoerder gebreken onderdelen onderhoud onderhoud inspectie onderhoud Ongevallen Genomen Datum Leeftijd Vermoedelijk oorzaak letsel Opgetreden persoonlijk letsel maatregel n.a.v. ongeval slachtoffer ongeval...
  • Page 10 Inspectie en onderhoud intervallen Maanden Nr. Inspectie Onderhoud tussen controle Speeltoestel controleren op stabiliteit, goede Ontbrekende onderdelen toevoegen, verbindingen en ontbrekende onderdelen. verbindingen vastdraaien. Ontbrekende Bouten, schroeven en moeren controleren op bevestigingsmiddelen aanbrengen en ontbreken, vastzitten, corrosie en slijtage gecorrodeerde onderdelen vervangen. Vervangen van versleten onderdelen en/of Ophangingen controleren op slijtage.
  • Page 11 6. Controleer het terrein regelmatig op zaken die er niet thuis horen, onveilig zijn of uitnodigen tot verkeerd gebruik, bijvoorbeeld giftige planten, glas enz. De controle frequentie is afhankelijk van de belasting. 7. Bedenk dat slecht onderhoud leidt tot onveiligheid en aantoonbare snellere verpaupering van de speelomgeving.
  • Page 13 Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 30x30x14 Afstandsbus Pasvloer 0,59 en 0,95 vloer MAP 01 004 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 14 Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking HOUTDRAADBOUT M10 X 80 Carrosseriering M10 x 30 - VZ 8.8 Standaard plank 120x20 Lengte = 1400 MAP 02 140 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 15 A ( 1:10 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 200, RVS A2-70 Schroef Assy 6 x 120 - RVS A2-70 30x30x14 Afstandsbus Paal 14-16 Lengte =900 Grote vloer frame met mangat Alle afmetingen in mm Benaming Artikel nr.
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte = 3300 m MAP 04 330 © Copyright BOERplay 19-8-2022 Revision:...
  • Page 17 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Robinia 14-16 Zaaglengte 3,75 MAP 04 380 © Copyright BOERplay 18-7-2022 Revision:...
  • Page 18 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1300 MAP 05 130 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 19 Opening tussen plank en paal altijd kleiner dan 89 mm. Ruimte onder wandje ±40 mm, zodat er nooit kans op koordbeknelling is. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Wandje recht Adventure Play MAP 06 001 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 20 Ruimte onder wandje ±40 mm, zodat er nooit kans op koordbeknelling is. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Wandje opening <0,50 m Adventure Play MAP 06 002 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 21 Opening tussen plank en paal altijd kleiner dan 89 mm. Ruimte onder wandje ±40 mm, zodat er nooit kans op koordbeknelling is. Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Wandje recht Adventure Play MAP 06 008 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 22 Manual de ensamblado - módulo Manuel de montage - module A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Kasteel Wandje 5 MAP 06 009 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 23 Manual de ensamblado - módulo Manuel de montage - module A ( 1 : 2 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Schroef Assy 5 x 70 - RVS A2-70 Kasteel Wandje 5 MAP 06 010 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 24 Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Paal 10-12 Lengte =1100 MAP 07 110 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 25 Schroef Assy 5 x 50 - RVS A2-70 Houtdraadbout ø10 X 50 - RVS A2-70 SLUITRING Facet ring M5 - RVS A2-70 OPLOOP BEUGEL LINKS OPLOOP BEUGEL RECHTS Klimwand 1,5m Adventure Play MAP 20 145 © Copyright BOERplay 11-8-2022 Revision:...
  • Page 26 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking BORGMOER M12 - RVS A2-70 Sluitring D-sluiting 5 MM RVS Dop zwart Beschermdop M10-M12 RING KUNSTSTOF Slotbout met lip M12x120 Hercules touw Ø16 Zwart L = 500 mm Benaming MAP 29 050 Handtouw Title Tekening Opmerking...
  • Page 27 M6 x 40 - VZ 8.8 Veiligheidsschroef Pin-Torx - VZ 8.8 CARROSSERIERING M6 x 20 - VZ 8.8 Paal 10-12 Lengte =1400 Standaard plank 120x20 Lengte = 1200 Bus RVS schroefdraad touw d16 Klimtouwen Adventure Play MAP 33 195 © Copyright BOERplay 7-10-2022 Revision:...
  • Page 28 A ( 1 : 5 ) Afstand van de glijstang naar: - vloer: tussen 350 en 500mm - railing: groter dan 250mm - overige toesteldelen: groter dan 500mm Distance from the fireman's pole to: - floor: between 350 and 500mm - railing: more than 250mm - other parts of the equipment: more than 500mm Type...
  • Page 29 Openings always > 230 mm Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 220, RVS A2-70 Draadeind+borgm.+ringen+dop M12, L= 200, RVS A2-70 Paal 6 Lengte =500 Paal 10-12 Lengte =2700 MOD PST 757 001 © Copyright BOERplay 7-10-2022 Revision:...
