BOERPLAY Playhouse Farm Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Playhouse Farm
BBIE002

Advertisement

loading
Need help?

Need help?

Do you have a question about the Playhouse Farm and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY Playhouse Farm

Summary of Contents for BOERPLAY Playhouse Farm

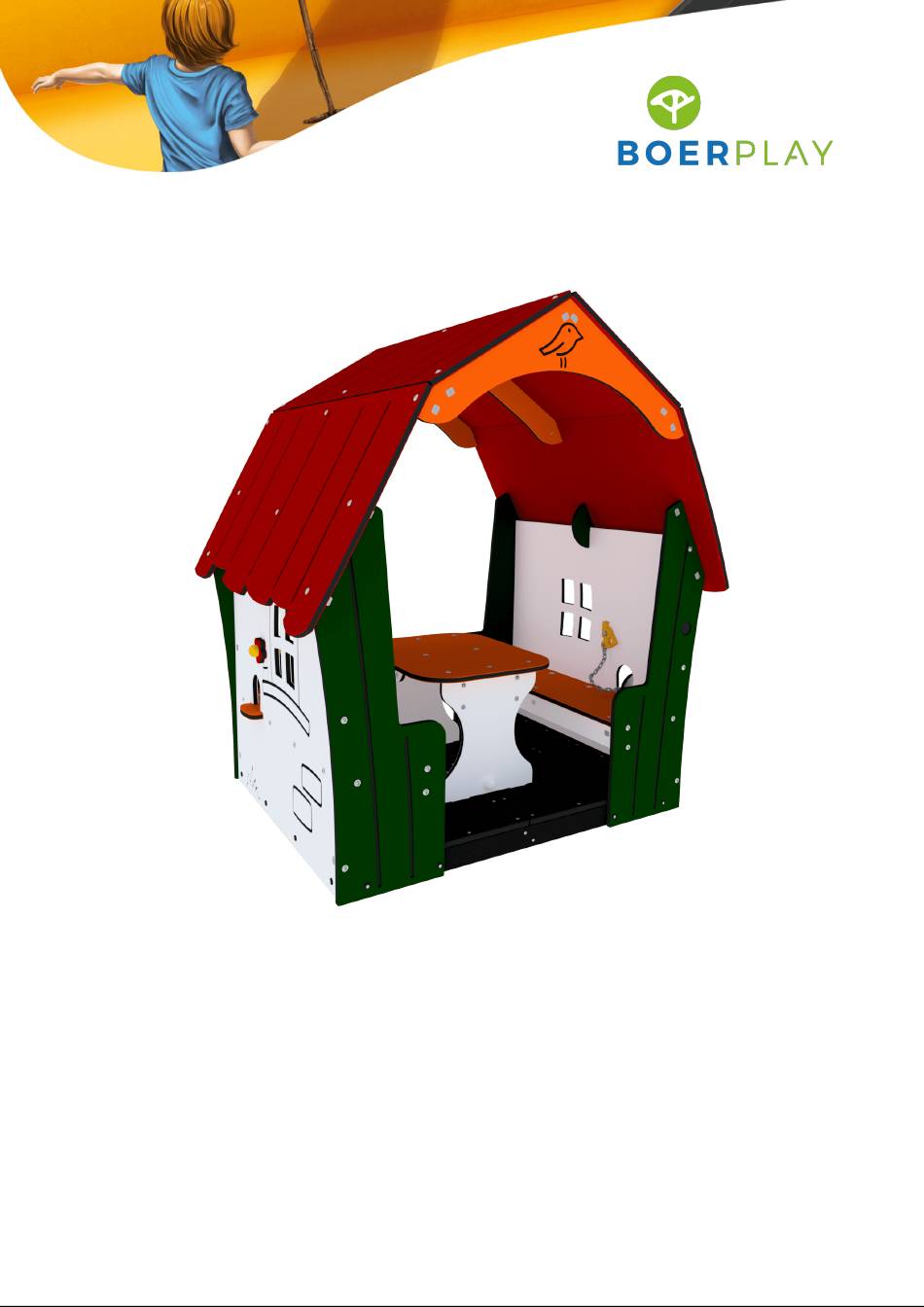

  • Page 1 Playhouse Farm BBIE002...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBI 002 © Copyright BOERplay 25-6-2020 Revision:...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 1,20 m 0,00 m 1,57 m 0,50 m 0,33 m 0,00 m BBI 002 © Copyright BOERplay 25-6-2020 Revision:...
  • Page 4 Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacle 4,45 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacle BBI 002 © Copyright BOERplay 25-6-2020 Revision:...
  • Page 5 Bodemplan Bodenplan Plan de superficie Plan de surface 1,94 m 0,58 m 1,94 m 0,20 m (4x) Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol BBI 002 © Copyright BOERplay 25-6-2020 Revision:...

  • Page 6: Assembly Manual

    - order of assembly Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.120 MOD.BBI.121 MOD.BBI.122 BBI 002 © Copyright BOERplay 25-6-2020 Revision:...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 No. 10 (2x) TX-40 No. 13 (2x) No. 17 (2x) TX-25 No. 10 No. 13 No. 17 © Copyright BOERplay Revision:...
  • Page 8 1 / 4 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.120 2 / 4 assembly manual module MOD.BBI.121 BBI 002 © Copyright BOERplay 25-6-2020 Revision:...
  • Page 9 3 / 4 assembly manual module MOD.BBI.122 4 / 4 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBI 002 © Copyright BOERplay 25-6-2020 Revision:...
  • Page 10 LOGBOOK Type indication Figura Play Article number BBIE002 Product Name Playhouse Farm Maximum fall height < 0,6 m Construction year 2023 Certificate 065247 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 11 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 12: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 13 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 15 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 120 © Copyright BOERplay 5-6-2020 Revision:...
  • Page 16 B (6x) ORE.BBI.006 ORE.BBI.008 ORE.BBI.005 ORE.BBI.005 ORE.BBI.007 B (2x) B (2x) ORE.BBI.008 ORE.BBI.006 B (6x) Detail A (4x) BSR.002.006.100 100 mm Detail B (16x) BSR.002.006.120 120 mm BSR.002.006.100 BSR.002.006.120 ORE.BBI.005 ORE.BBI.006 ORE.BBI.007 ORE.BBI.008 MOD BBI 120 © Copyright BOERplay 5-6-2020 Revision:...
  • Page 17 2 / 2 SMD.BBI.552 C (12x) C (12x) KST.BBI.028.LPE KST.BBI.027.LPE KST.BBI.028.LPE KST.BBI.027.LPE C (12x) C (12x) Detail C (48x) BSR.002.005.050 50 mm BSR.002.005.050 KST.BBI.027.LPE KST.BBI.028.LPE MOD BBI 120 © Copyright BOERplay 5-6-2020 Revision:...
  • Page 18 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 19 1 / 10 OPE.BBI.299.062 OPE.BBI.297.006 OPE.BBI.298.062 Detail A (38x) OPE.BBI.303.022 OPE.BBI.304.006 ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.297.006 OPE.BBI.298.062 OPE.BBI.299.062 OPE.BBI.303.022 OPE.BBI.304.006 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 20 2 / 10 Detail B (16x) KST.ROR.006.000 BSR.002.005.070 70 mm BSR.002.005.070 KST.ROR.006.000 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 21 BSR.030.010.002 OPE.BBI.221.032 KST.DON.010.010 Detail D (1x) BSR.023.010.080 KST.DOP.010.030 BSR.010.010.010 BSR.030.010.002 KST.DON.010.030 BSR.010.010.010 OPE.BBI.221.010 BSR.030.010.002 BSR.023.010.080 OPE.BBI.032.010 BSR.030.010.002 BSR.031.005.000 BSR.031.005.000 KET.005.002.029 KET.005.002.029 KST.DON.010.010 KST.DON.010.030 KST.DOP.010.010 KST.DOP.010.030 OPE.BBI.032.010 OPE.BBI.033.072 OPE.BBI.033.072 OPE.BBI.221.010 BSR.031.005.000 OPE.BBI.221.032 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 22 4 / 10 OPE.BBI.306.022 ✔ OPE.BBI.308.006 Detail A (16x) OPE.BBI.305.006 ✔ BSR.010.008.008 BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OME.BBI.021 BSR.052.008.060 OPE.BBI.305.006 OPE.BBI.306.022 OPE.BBI.308.006 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 23 5 / 10 Detail E (2x) KST.DOP.010.060 BSR.022.010.060 BSR.030.010.002 KST.DON.010.060 OME.MNP.209.905 ✔ ✔ BSR.022.010.060 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 OME.MNP.209.905 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 24 6 / 10 Detail F (2x) KST.DOP.010.020 BSR.010.010.010 BSR.030.010.002 KST.DON.010.020 BSR.026.010.040 BSR.010.010.010 BSR.026.010.040 BSR.030.010.002 KST.DON.010.020 KST.DOP.010.020 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 25 7 / 10 OPE.BBI.307.062 OPE.BBI.307.062 Detail A (2x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.307.062 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 26 8 / 10 OPE.BBI.301.032 Detail A (10x) ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 BSR.052.008.060 OME.BBI.021 OPE.BBI.301.032 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 27 9 / 10 OPE.BBI.302.032 OPE.BBI.310.022 Detail A (12x) OPE.BBI.300.022 ✔ BSR.010.008.008 BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OME.BBI.021 OPE.BBI.300.022 BSR.052.008.060 OPE.BBI.302.032 OPE.BBI.310.022 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 28 10 / 10 Detail A (6x) ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 BSR.052.008.060 OME.BBI.021 MOD BBI 121 © Copyright BOERplay 12-6-2020 Revision: B...
  • Page 29 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 122 © Copyright BOERplay 18-6-2020 Revision:...
  • Page 30 1 / 1 Detail A (2x) BSR.026.010.110 SME.SOL.032.372 KST.DON.010.020 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.020 BSR.010.010.010 BSR.026.010.110 BSR.030.010.002 KST.DON.010.020 KST.DOP.010.020 SME.SOL.032.372 MOD BBI 122 © Copyright BOERplay 18-6-2020 Revision:...
