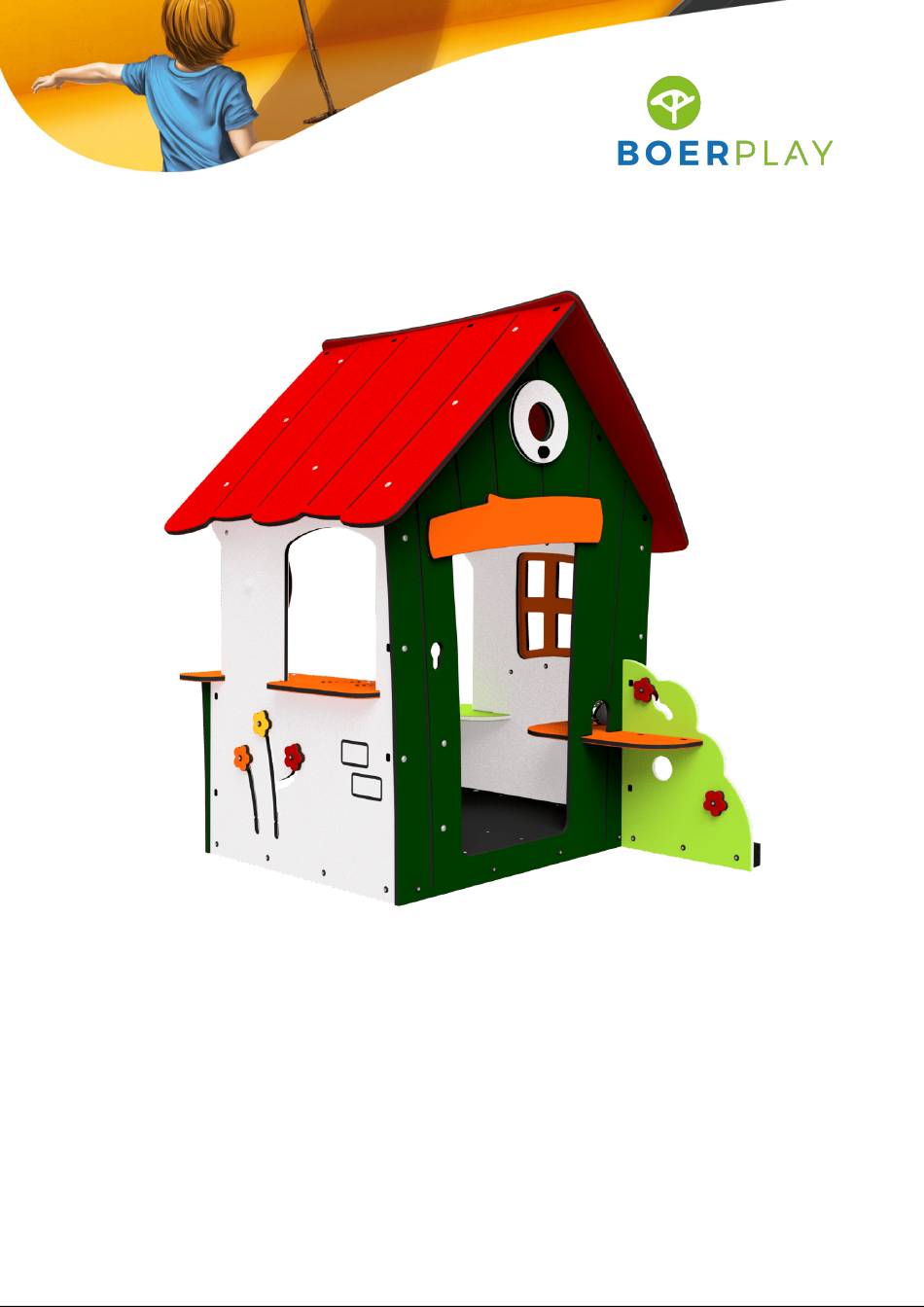

  • Page 1 Playhouse Lanuza BBIE115.H...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBI 115 H © Copyright BOERplay 28-5-2019 Revision:...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 1,54 m 1,53 m 0,33 m 0,00 m 1,74 m 0,58 m 0,39 m 0,09 m 0,00 m BBI 115 H © Copyright BOERplay 28-5-2019 Revision:...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacle 4,42 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacle BBI 115 H © Copyright BOERplay 28-5-2019 Revision:...
  • Page 5 Bodemplan Bodenplan Plan de superficie Plan de surface 0,20 m (4x) 1,80 m 0,89 m 1,74 m Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol BBI 115 H © Copyright BOERplay 28-5-2019 Revision:...

  • Page 6: Assembly Manual

    Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage - assembly manual - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD.BBI.155 MOD.BBI.157 MOD.BBI.158 BBI 115 H © Copyright BOERplay 28-5-2019 Revision:...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires TX-25 TX-40 No. 10 (2x) No. 13 (2x) No. 17 (2x) TX-25 No. 10 No. 13 No. 17 © Copyright BOERplay Revision:...
  • Page 8 1 / 4 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.155 2 / 4 assembly manual module MOD.BBI.158 BBI 115 H © Copyright BOERplay 28-5-2019 Revision:...
  • Page 9 3 / 4 assembly manual module MOD.BBI.157 4 / 4 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBI 115 H © Copyright BOERplay 28-5-2019 Revision:...
  • Page 10 LOGBOOK Type indication Figura Play Article number BBIE115.H Product Name Playhouse Lanuza Maximum fall height < 0,6 m Construction year 2023 Certificate 063193 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 11 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 12: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 13 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 15 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 28-5-2019 Revision: MOD BBI 155...
  • Page 16 1 / 1 SMD.BBI.551 A (17x) KST.BBI.017.LPE ORE.BBI.002 ORE.BBI.003 B (12x) ORE.BBI.002 ORE.BBI.003 ORE.BBI.001 Detail A (17x) BSR.002.005.050 50 mm Detail B (12x) BSR.002.006.120 BSR.002.005.050 BSR.002.006.120 KST.BBI.017.LPE ORE.BBI.001 ORE.BBI.002 ORE.BBI.003 © Copyright BOERplay 28-5-2019 Revision: MOD BBI 155...
  • Page 17 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 28-5-2019 Revision: MOD BBI 157...
  • Page 18 ✔ SME.SOL.032.372 SME.SOL.032.372 SME.SOL.032.372 ✔ Detail A (6x) Detail B (2x) KST.DOP.010.020 KST.DOP.010.020 BSR.010.010.010 BSR.010.010.010 BSR.030.010.002 BSR.030.010.002 KST.DON.010.020 KST.DON.010.020 BSR.026.010.110 BSR.026.010.090 110 mm 90 mm BSR.010.010.010 BSR.026.010.090 BSR.026.010.110 BSR.030.010.002 KST.DON.010.020 KST.DOP.010.020 SME.SOL.032.372 © Copyright BOERplay 28-5-2019 Revision: MOD BBI 157...
  • Page 19 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 20 1 / 11 OPE.BBI.005.006 OPE.BBI.122.062 OPE.BBI.069.022 Detail B (6x) Detail A (1x) BSR.030.010.002 KST.ROR.006.000 KST.DON.010.060 BSR.053.005.035 BSR.026.010.055 BSR.010.010.010 KST.DOP.010.060 35 mm 55 mm BSR.010.010.010 BSR.026.010.055 BSR.030.010.002 BSR.053.005.035 KST.DON.010.060 KST.DOP.010.060 KST.ROR.006.000 OPE.BBI.005.006 OPE.BBI.069.022 OPE.BBI.122.062 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 21 2 / 11 OPE.BBI.126.061 Detail C (2x) OPE.BBI.030.xxx KST.ROR.006.000 KST.ROR.006.000 BSR.053.005.030 BSR.053.005.030 OPE.BBI.038.090 30 mm BSR.053.005.030 KST.ROR.006.000 OPE.BBI.030.032 OPE.BBI.038.090 OPE.BBI.126.061 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 22 Detail D (1x) BSR.023.010.080 KST.DOP.010.030 BSR.010.010.010 KST.ROR.006.000 BSR.030.010.002 BSR.053.005.035 KST.DON.010.030 OPE.BBI.221.010 BSR.030.010.002 OPE.BBI.032.010 BSR.031.005.000 35 mm KET.005.002.029 BSR.010.010.010 BSR.030.010.002 BSR.031.005.000 OPE.BBI.033.072 BSR.053.005.035 BSR.031.005.000 KET.005.002.029 KST.ROR.006.000 OPE.BBI.006.022 OPE.BBI.032.010 OPE.BBI.033.072 OPE.BBI.123.006 OPE.BBI.221.010 KST.DOP.010.030 KST.DON.010.030 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C BSR.023.010.080...
  • Page 23 BSR.030.010.002 KST.ROR.006.000 BSR.053.005.035 35 mm Detail E (1x) KST.BBI.021 OPE.BBI.137.090 BSR.026.010.080 Detail F (1x) BSR.010.010.010 BSR.026.010.080 KST.DOP.010.020 BSR.030.010.002 BSR.010.010.010 BSR.053.005.035 BSR.030.010.002 KST.BBI.021 KST.BUS.012.020 KST.DON.010.020 KST.DOP.010.020 KST.ROR.006.000 OPE.BBI.119.006 OPE.BBI.125.006 KST.DON.010.020 OPE.BBI.136.022 OPE.BBI.137.090 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 24 5 / 11 Detail C (3x) OPE.BBI.030.xxx KST.ROR.006.000 KST.ROR.006.000 BSR.053.005.030 BSR.053.005.030 OPE.BBI.038.090 OPE.BBI.030.010 30 mm KST.ROR.006.000 OPE.BBI.038.090 BSR.053.005.030 OPE.BBI.030.022 OPE.BBI.030.032 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 25 6 / 11 MOD.BBI.155 OPE.BBI.124.022 Detail G (4x) Detail H (7x) KST.ROR.006.000 ✔ BSR.010.008.008 BSR.002.005.070 OME.BBI.021 BSR.052.008.060 70 mm BSR.002.005.070 BSR.010.008.008 BSR.052.008.060 KST.ROR.006.000 OME.BBI.021 OPE.BBI.124.022 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 26 7 / 11 Detail H (4x) KST.ROR.006.000 Detail G (3x) BSR.002.005.070 ✔ 70 mm BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.002.005.070 BSR.010.008.008 BSR.052.008.060 KST.ROR.006.000 OME.BBI.021 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 27 8 / 11 ✔ OPE.BBI.130.022 OPE.BBI.133.006 Detail G (5x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.130.022 OPE.BBI.133.006 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 28 9 / 11 OPE.BBI.132.061 OPE.BBI.129.062 Detail H (8x) Detail G (11x) KST.ROR.006.000 ✔ BSR.002.005.070 BSR.010.008.008 OME.BBI.021 BSR.052.008.060 70 mm BSR.002.005.070 BSR.010.008.008 BSR.052.008.060 KST.ROR.006.000 OME.BBI.021 OPE.BBI.129.062 OPE.BBI.132.061 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 29 10 / 11 Detail I (2x) OPE.BBI.022.006 OPE.BBI.131.062 Detail G (4x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.022.006 OPE.BBI.131.062 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
  • Page 30 11 / 11 OPE.BBI.127.032 OPE.BBI.128.032 Detail G (18x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBI.127.032 OPE.BBI.128.032 MOD BBI 158 © Copyright BOERplay 28-2-2020 Revision: C...
