1100,
1200
FINALDRIVE 152
FRONT AXLE AND STEERING
Axle (2 Wheel Drive) 1
Axle (4 Wheel Drive) 3
Manual Steering Gear 15
Power Steering
HYDRAULIC SYSTEM
Adjustments. 175
Control Valve 185
Filter 170
Lift Arm Housing 180
Pump 174
Testing 172
Trouble-Shooting 171
POWER TAKE-OFF 163
TRANSMISSION
Hydrostatic
Nonsynchromesh 105
Synchromesh

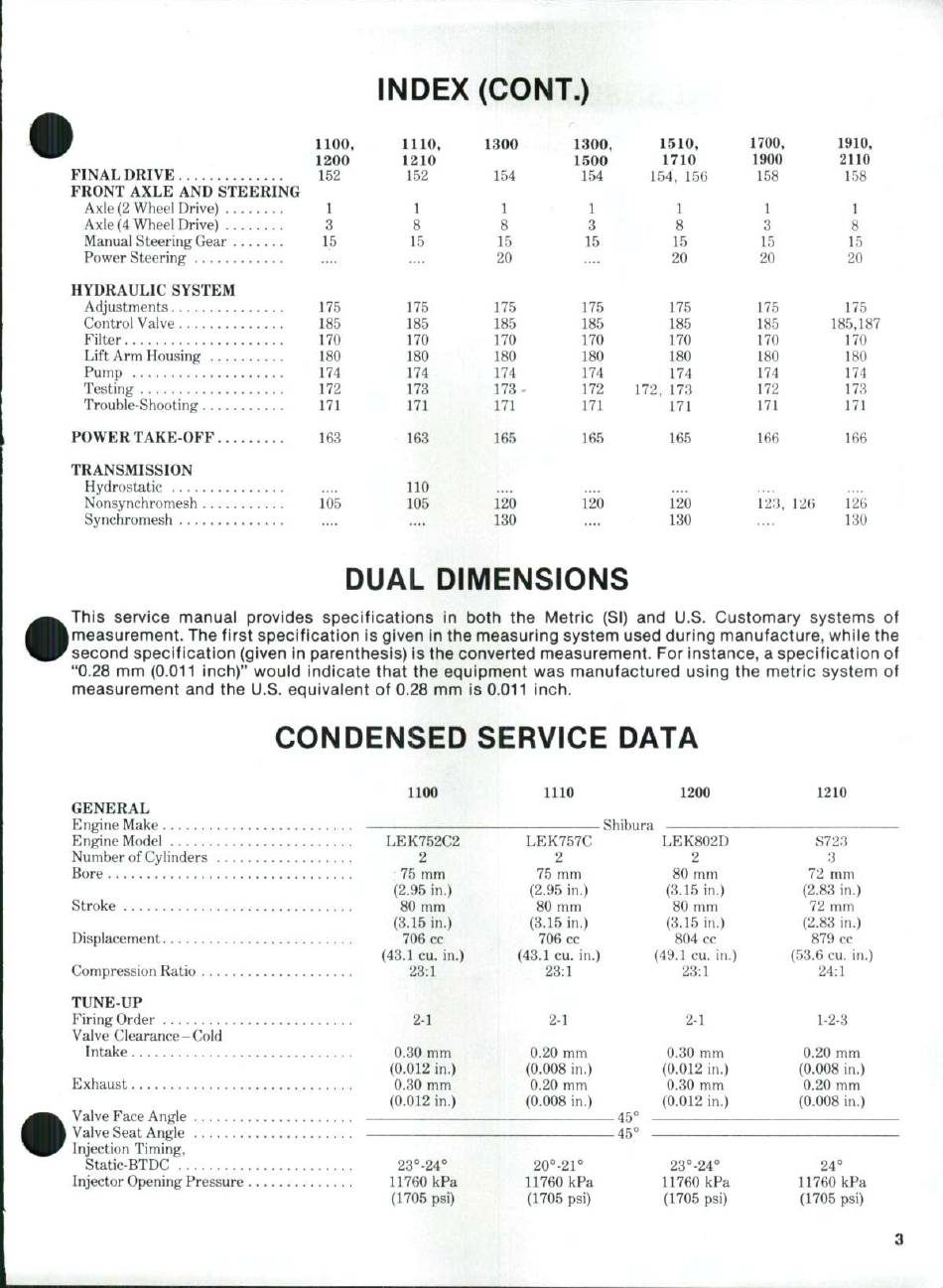

INDEX (CONT.)
1110,
1210
152
1
8
15
175
185
170
180
174
173
171
1300
154
1
8
15
20
175
185
170
180
174
173 •
171
1300,
1500
154
1
3
15
175
185
170
180
174
172
171
1510,
1710
154, 156
1
8
15
20
175
185
170
180
174
172, 173
171
1700,
1900
158
1
3
15
20
175
185
170
180
174
172
171
1910,
2110
158
1
8
15
20
175
185,187
170
180
174
173
171
163
110
105
165
120
130
165
120
165
120
130
166 166
123, 12(> 126
130
DUAL DIMENSIONS
This service manuai provides specifications in both the Metric (SI) and U.S. Customary systems of
measurement. The first specification is given in the measuring system used during manufacture, whiie the
second specification (given in parenthesis) is the converted measurement. For instance, a specification of
"0.28 mm (0.011 inch)" wouid indicate that the equipment was manufactured using the metric system of
measurement and the U.S. equivaient of 0.28 mm is 0.011 inch.
CONDENSED SERVICE DATA
1100
GENERAL
Engine Make
Engine Model LEK752C2
Number of Cylinders 2
Bore 75 mm
(2.95 in.)
Stroke 80 mm
(3.15 in.)
Displacement 706 cc
(43.1 cu. in.)
Compression Ratio 23:1
TUNE-UP
Firing Order 2-1
Valve Clearance-Cold
Intake 0.30 mm
(0.012 in.)
Exhaust 0.30 mm
(0.012 in.)
Valve Face Angle
Valve Seat Angle
Injection Timing,
Static-BTDC 23''-24°
Injector Opening Pressure 11760 kPa
(1705 psi)
1110 1200 1210
LEK757C
2
75 mm
(2.95 in.)
80 mm
(3.15 in.)
706 cc
(43.1 cu. in.)
23:1
LEK802D
2
80 mm
(3.15 in.)
80 mm
(3.15 in.)
804 cc
(49.1 cu. in.)
23:1
S723
3
72 mm
(2.83 in.)
72 mm
(2.83 in.)
879 cc
(53.6 cu. in.)
24:1
2-1
0.20 mm
(0.008 in.)
0.20 mm
(0.008 in.)
-45°
-45°
2-1
0.30 mm
(0.012 in.)
0.30 mm
(0.012 in.)
11760 kPa
(1705 psi)
11760 kPa
(1705 psi)
1-2-3
0.20 m m
(0.008 in.)
0.20 m m
(0.008 in.)
24°
11760 kPa
(1705 psi)
