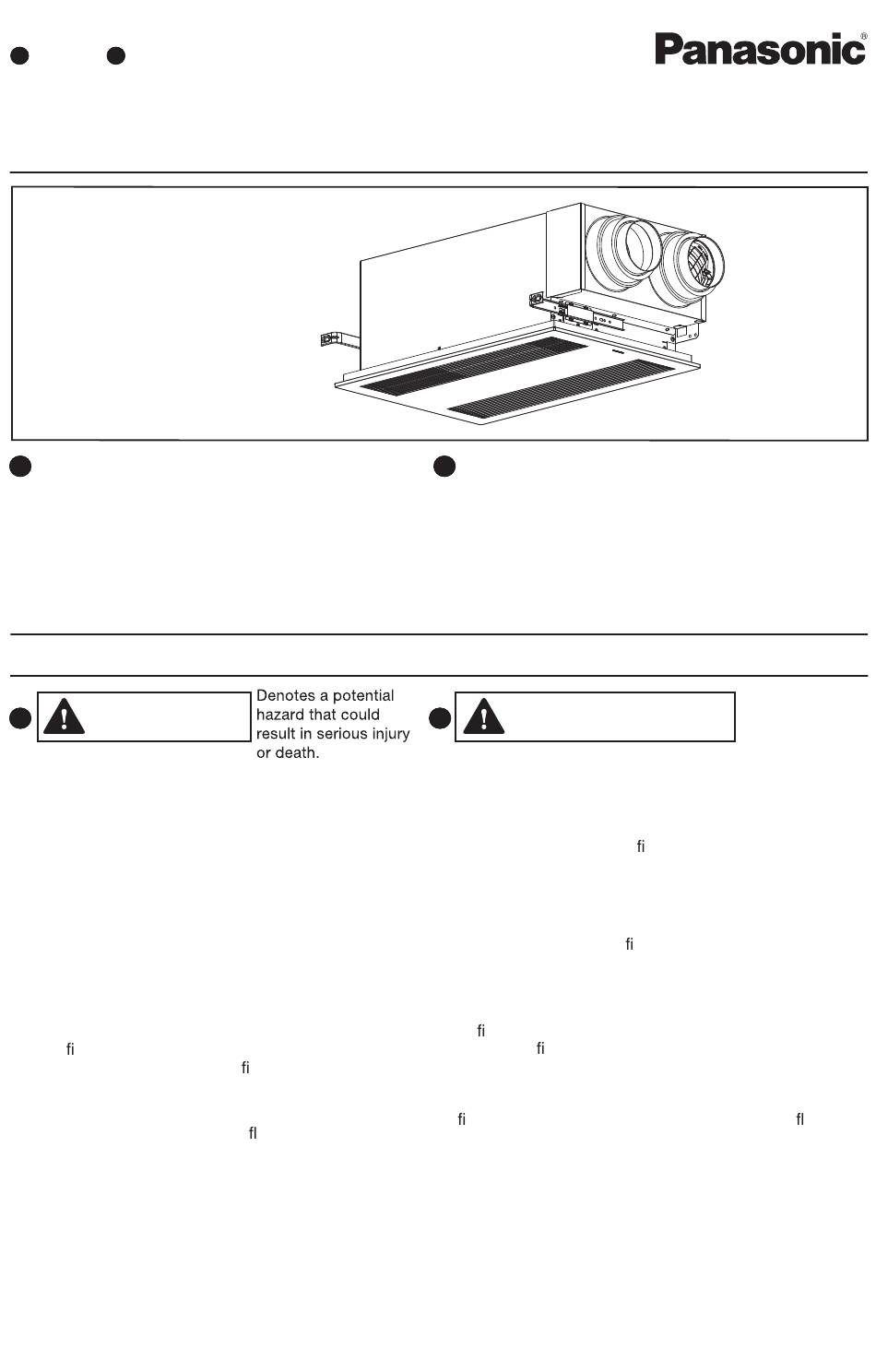

Installation guide
Guide d'installation
Model No.
N° de modèle
FV-06VE1
READ AND SAVE THESE INSTRUCTIONS
EN
Thank you for purchasing this Panasonic product. Please
carefully read the "IMPORTANT SAFETY INFORMATION".
Failure to comply with instructions could result in
personal injury or property damage. Please explain to
users how to operate and maintain the product after
installation, and present this booklet to users. Please
retain this booklet for future reference.
IMPORTANT SAFETY INFORMATION / CONSIGNES IMPORTANTES DE SÉCURITÉ
WARNING
EN
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING :
1. Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact the
manufacturer.
2. Before servicing or cleaning unit, switch power off
at service panel and lock the service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning
device,such as a tag, to the service panel.
3. Installation work and electrical wiring must be done
by quali ed person(s) in accordance with all applicable
codes and standards, including re-rated construction.
4. Sufficient air is needed for proper combustion and
exhausting of gases through the ue (chimney) of fuel
burning equipment to prevent back drafting. Follow the
heating equipment manufacturer's guideline and safety
standards such as those published by the National
Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE) and the local code authorities.
Spot Energy Recovery Ventilator
Ventilateur ponctuel récupérateur d'énergie
LIRE ET CONSERVER CE MANUEL
FR
Nous vous remercions d'avoir acheté ce produit Panasonic.
Veuillez lire attentivement les « CONSIGNES IMPORTANTES
DE SÉCURITÉ ». Le non-respect des présentes instructions
peut donner lieu à des blessures corporelles ou des dommages
matériels. Veuillez expliquer aux utilisateurs comment utiliser
et effectuer l'entretien de ce produit après l'installation et leur
présenter ce guide. Veuillez conserver ce guide pour référence
ultérieure.
FR
AFIN DE RÉDUIRE LE RISQUE D'INCENDIE, DE
CHOCS ÉLECTRIQUES OU DE BLESSURES,
OBSERVER LES MESURES SUIVANTES :
1. N'utiliser l'appareil qu'aux ns prévues et recommandées
par son fabricant. Pour toute question, communiquer avec
ce demier.
2. Avant de nettoyer ou de faire la maintenance de l'appareil,
couper l'alimentation sur le panneau de service et verr ouiller
le dispositif d'alimentation a n de prévenir tout rétablissement
accidentel. Si le verrouillage n'est pas possible, poser un avis
très visible sur le panneau de service.
3. Con er l'installation et les connexions électriques à une
personne quali ée. L'installation doit être conforme aux
codes et normes applicables, y compris les normes en
matière de parement pare-feu.
4. A n de prévenir tout risque de contre-tirage, un ot d'air
suffisant est requis pour assurer la combustion et l'évecuation
des gaz à travers la cheminée de tout appareil de combustion.
Suivre les instructions du manufacturier de l'équipement de
chauffage et observer les normes de sécurité en vigueur en
matière de prévention des incendies de même que celles des
codes locaux.
Lors d'une découpe dans un mur ou un plafond ou lors de
leur perçage, prendre garde à ne pas endommager le
câblage électrique et toute autre installation cachée.
AVERTISSEMENT
Indique un danger
pontentiel qui pourrait
entraîner des blessures
graves ou la mort.
Need help?
Do you have a question about the FV-06VE1 and is the answer not in the manual?
Questions and answers
Please anyone someone, spec the switch for the FV-06VE1. I do not want a smart switch. What brand is the switch? What model is the switch? Where do I buy the switch? I have been on hold endlessly with Panasonic tech support. I have received no response. I have also left two messages for Panasonic tech support.
The recommended switch for the Panasonic FV-06VE1 is the Switch PCB Assy, part number FFV06VE1053.
This answer is automatically generated

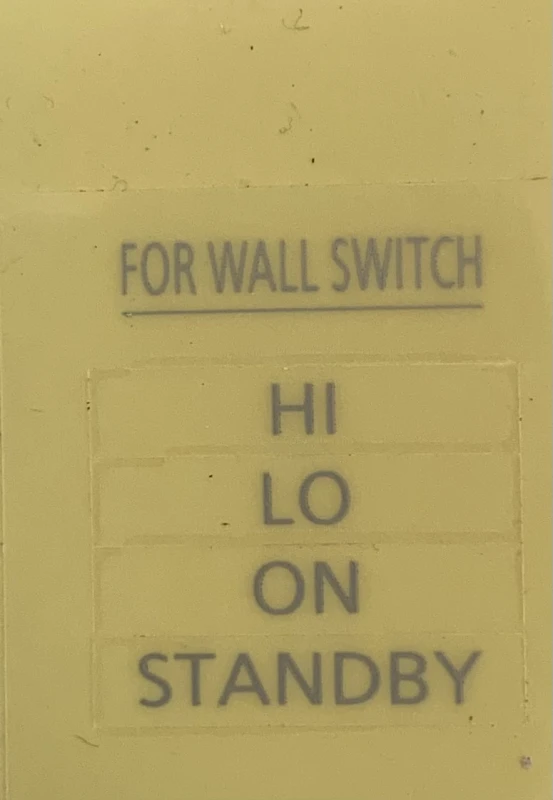

Can someone specify, please, a single switch to control our FV-06VE1? I'd like ON/OFF on one rocker and HI/LO on the other. Also, since I'm not an electrician, please help with a simple direction as to where to place the pair of red wires, where to place the blue wires, and where to place the high voltage wires, all of them into the back of the switch. Thanks.

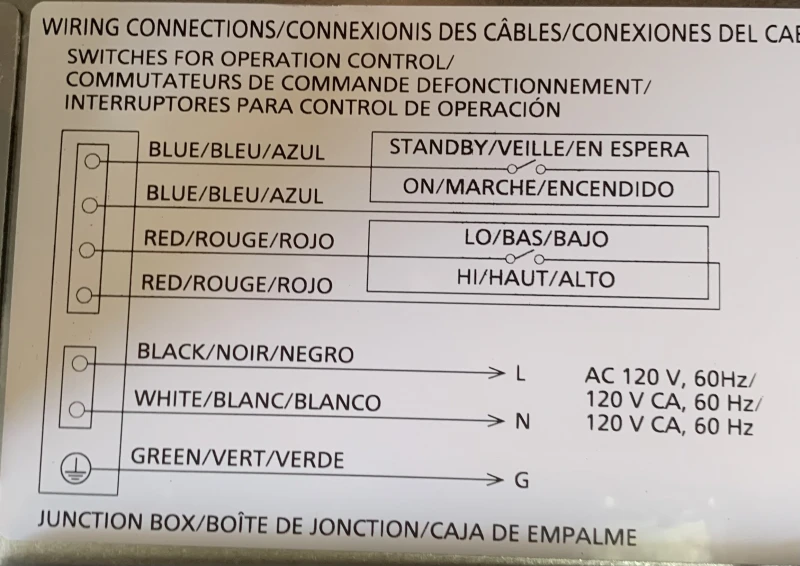

The Panasonic FV-06VE1 can be controlled using a wall switch with ON/OFF and HI/LO functions. The wiring configuration should follow these guidelines:
1. Switch Configuration:
- Use a 3-position wall switch to control ON/OFF and HI/LO functions.
2. Wiring Connections:
- Red wire: Connect to the HI position of the switch.
- Blue wire: Connect to the LO position of the switch.
- High voltage wires (Black and White):
- Black wire (Line): Connect to the power source (120V AC, 60Hz).
- White wire (Neutral): Connect to the neutral from the power source.
Ensure that all electrical connections comply with safety codes and are performed by a qualified electrician.
This answer is automatically generated

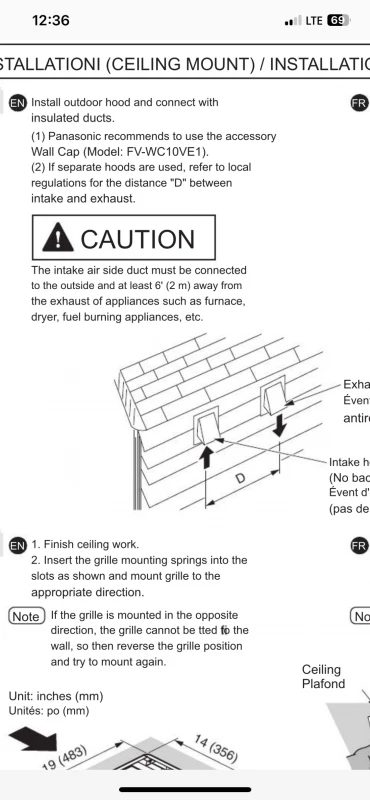

What is your recommendation for how far apart the stale exit needs to be from the fresh air input on the exterior of the house? This would be your dimension "D" as shown in the photo, attached b
The recommended distance "D" between the stale air exit and the fresh air input for the Panasonic FV-06VE1 is at least 6 feet (2 meters).
This answer is automatically generated
@The Mr. Anderson Mr. Anderson, thank you for your prompt response. To be clear, we have no need for a smart switch. But I remain confused. Where do I buy the switch that accommodates all of the wires shown in the diagram, below? Thanks for helping!
How far apart does the stale exit need to be from the fresh air input on tvv by e exterior of the house?
The required distance between the stale air exit and the fresh air input for the Panasonic FV-06VE1 is at least 6 feet (2 meters).
This answer is automatically generated
