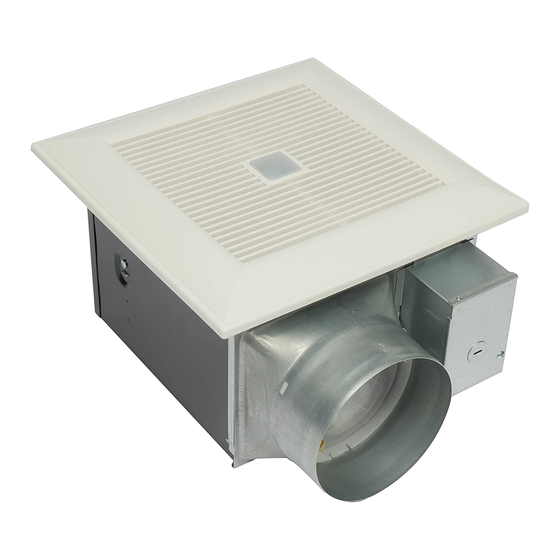

Panasonic FV-05-11VKS1 Service Manual
Bathroom exhaust fan
Hide thumbs
Also See for FV-05-11VKS1:
- Installation instructions manual (12 pages) ,
- Installation insrtuctions (12 pages)
Advertisement
Service Manual
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are
marked by
in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without permission of manufacture.
We suggest to handle such parts after the static electricity prevention.
It is forbidden to touch the PCB parts by bare hands during the repairing process.
CONTENTS
1. Specifications
2. Parts Identification
3.Wiring Diagram
4. Parts List
FV-05-11VKS1
WARNING
IMPORTANT SAFETY NOTICE
PEG1312055CE
Version:1301
Ventilating Fan
(North America Market)
PAGE
1
2~5
6
7~8
Advertisement
Table of Contents
Related Manuals for Panasonic FV-05-11VKS1
Summary of Contents for Panasonic FV-05-11VKS1
- Page 1 Service Manual Ventilating Fan (North America Market) FV-05-11VKS1 WARNING This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
-
Page 2: Specifications
0.1"WG Model No. (k ) g direction (Hz) (sones) (rpm) (inches) (CFM) <0.3 Exhaust FV-05-11VKS1 <0.3 10.6(4.8) 4 or 6 HVI Certified performance based on HVI Procedures 915,916,and 920. Specifications for Multi Speed fans Duct Air volume Voltage Frequency Noise... -
Page 3: Parts Identification
2.Parts Identification FV-05-11VKS1 Main Body Section (3pcs) (3pcs) (4pcs) (5pcs) (23) (2pcs) Main PCB Section (3pcs) Base PCB Section (2pcs) Ornamental Cover... - Page 4 2.Parts Identification FV-05-11VKS1 Main PCB Section (3pcs) (4pcs) Base PCB Section (2pcs) Condensation Sensor Module Sensor Cover (2pcs) Nite-Glo LED Night Light Module Motion Sensor Module 1,Please note that above parts with(No.31,32,33) are the optional parts base on different customer’s request.
- Page 5 2.Parts Identification FV-05-11VKS1 Packing Section...
-
Page 6: Parts Identification
2.Parts Identification FV-05-11VKS1 Main Label 08VSL3082 E78414 LISTED Not for use in cooking area-See installation instructions Non destiné à la zone de cuisson -Voir instructions d’installation. No usar en áreas donde cocine - Consulte las instrucciones de instalación. -
Page 7: Wiring Diagram
3.Wiring Diagram FV-05-11VKS1 Fan body Junction box Switch for power (114°C Fuse) Black Live DC-Motor (Power supply) Thermally Neutral White protected AC120V 60Hz Multi-Speed switch Hi/Low switch:When plug in Multi-Speed module; On/Off switch:When plug in Pulg ‘N Play other Plug’N Play modules. -
Page 8: Parts List
4.Parts List FV-05-11VKS1 Main Body Section Part No. Part Name Q'ty Remark FFV1600138S Frame Assembly FFV0000147S Adapter Assembly FFV0900053S Connector Plate FFV1340008S Earth Lead Wire Assembly FFV0900051S Connector Assembly FFV2800021S Junction Cover FFV0800001S Casing Support FFV3702255S Motor Assembly FFV4620109S Motor Lead Wire Assembly... -
Page 9: Parts List
4.Parts List FV-05-11VKS1 Base PCB Section Part No. Part Name Q'ty Remark 25 FFV5530071S Multi-Speed Module 26 FFV0900063S Connector Cover 27 FFV0410001S Base PCB Cover 28 FFV5530072S Variable Speed Switch 29 FFV0410002S Base PCB Assembly 30 FFV0410003S Base PCB Box...
