BOERPLAY Multi-play equipment Bornite 1,5-2,0m Installation Instructions Manual
  1. Manuals
  2. Brands
  3. BOERPLAY Manuals
  4. Play Sets & Playground Equipment
  5. Multi-play equipment Bornite 1,5-2,0m
  6. Installation instructions manual

BOERPLAY Multi-play equipment Bornite 1,5-2,0m Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

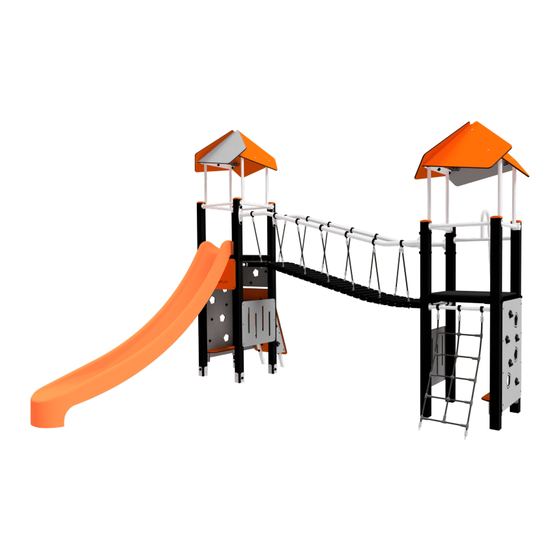

Multi-play equipment Bornite
1,5-2,0m
BBPE213.7UP

Advertisement

loading
Need help?

Need help?

Do you have a question about the Multi-play equipment Bornite 1,5-2,0m and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY Multi-play equipment Bornite 1,5-2,0m

Summary of Contents for BOERPLAY Multi-play equipment Bornite 1,5-2,0m

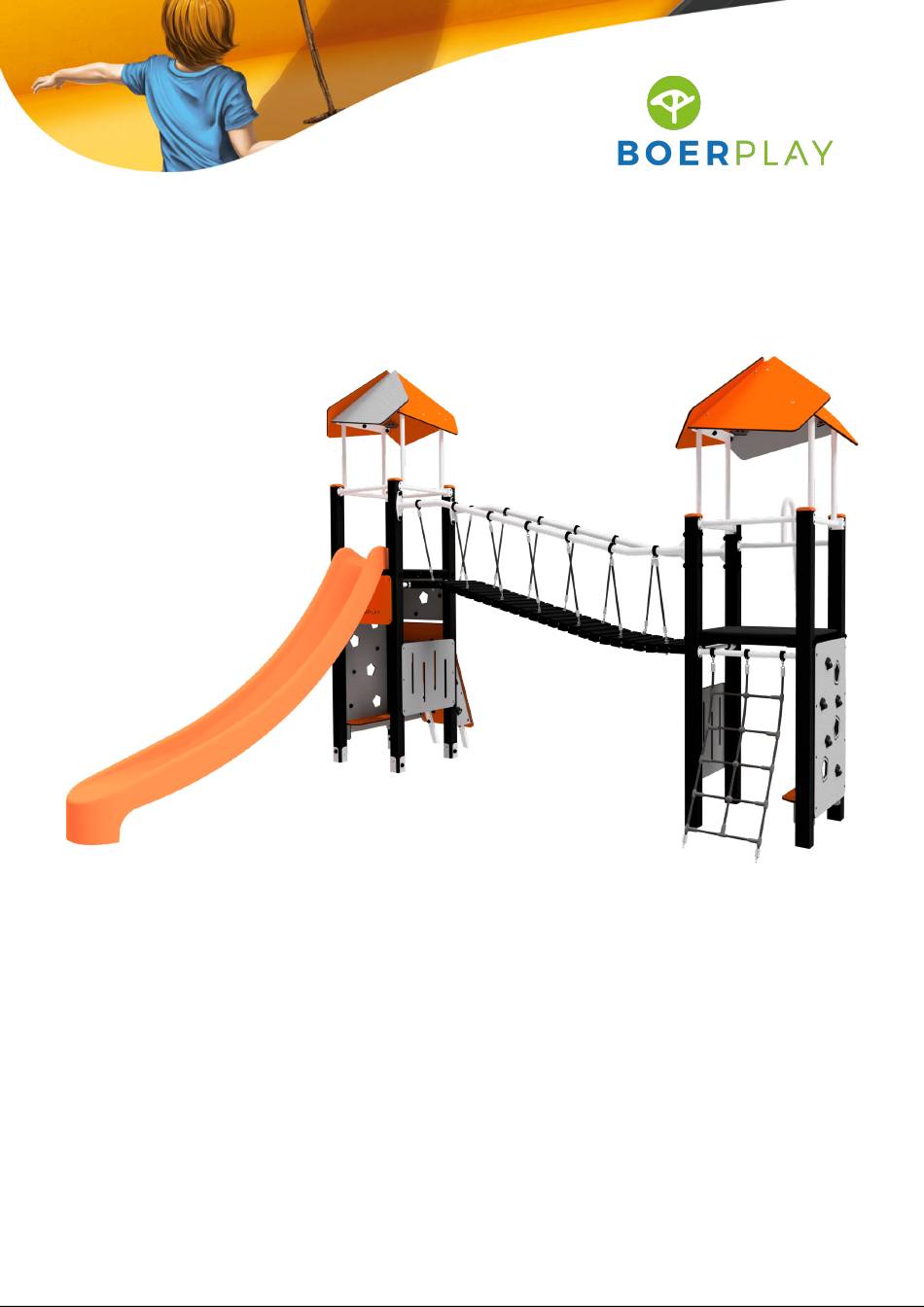

  • Page 1 Multi-play equipment Bornite 1,5-2,0m BBPE213.7UP...
  • Page 2 Il est conseillé de ne pas orienter de FR - Important ! l’équipement avec toboggans vers le sud. Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 4,91 m 3,97 m 3,47 m 2,82 m 2,32 m 1,95 m 1,45 m 0,00 m 0,00 m BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 4 0,50 m 1,00 m 1,85 m 1,85 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 5 2,07 m Detail (8x) Detail (1x) Detail (2x) Detail (1x) 0,6 m 0,8 m 0,3 m 0,35 m 0,3 m 0,3 m 0,3 m 0,5 m 0,7 m 0,6 m 0,7 m BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 6 Manual de ensamblado - módulo Manuel de montage - module MOD.BBP.008.x MOD.BBP.009.x MOD.BBP.015.x MOD.BBP.016.x MOD.BBP.046.x MOD.BBP.203.x MOD.BBP.742.x MOD.BBP.746.x MOD.BBP.750.x MOD.BBP.768.x MOD.BBP.769.x MOD.BBP.771.x MOD.BBP.773.x MOD.BBP.774.x MOD.BBP.784.x MOD.BBP.798.x MOD.BBP.806.B MOD.BBP.808 8 x 25L MOD.BBP.833.x BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 7 Ø12 mm 40 kg > 4,5 m Ø4.8 mm Only for metal posts Alleen voor metalen staanders Nur für Pfosten aus Metall Solo para postes de metal Seulement pour poteaux en métal BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 8 Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois / 14 ✔ ✔ MOD.BBP.806.B Aluminium posts Aluminium staanders Pfosten aus Aluminium Postes de aluminio Poteaux en aluminium ✔ BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 9 / 14 ✔ MOD.BBP.009.x 3,48 m ✔ MOD.BBP.798.x 2,59 m MOD.BBP.016.x 0,00 m / 14 MOD.BBP.771.x MOD.BBP.750.x BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 10 / 14 MOD.BBP.046.x MOD.BBP.742.x MOD.BBP.769.x / 14 ✔ ✔ Aluminium posts MOD.BBP.806.B Aluminium staanders Pfosten aus Aluminium Postes de aluminio Poteaux en aluminium ✔ BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 11 MOD.BBP.009.x / 14 ✔ ✔ MOD.BBP.016.x / 14 MOD.BBP.203.x MOD.BBP.784.x BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 12 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 13 / 14 4,5 m 40 kg > MOD.BBP.773.x MOD.BBP.773.x MOD.BBP.833.x BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 14 / 14 MOD.BBP.008.x MOD.BBP.774.x / 14 MOD.BBP.015.x BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 15 ¡Importante! Asegúrese de que el concreto esté lo suficientemente endurecido antes de cerrar el agujero Important! Assurez-vous que le béton est suffisamment durci avant de fermer le trou / 14 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBP 213 7xP © Copyright BOERplay 1-9-2022 Revision: A...
  • Page 16 LOGBOOK Type indication Rocks Article number BBPE213.7UP Product Name Multi-play equipment Bornite 1,5-2,0m Maximum fall height 2,0 m Construction year 2023 Certificate 149385 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 17 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
  • Page 18 Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 19 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 20 Certificate Playground Equipment Certificate of approval issued by Keurmerkinstituut (Certification Institute), appointed by ministerial disposal of 16 November 2020, nr. 1778239-213859-VGP. Certificate number: 149424 File number: 17292 Concerns: Playground equipment Bergkristal Description: Basic Play Rocks- BBP.213.7xy Owner/keeper: Boer speeltoestellen b.v. Postbus 10 4255 ZG Nieuwendijk The Netherlands...
  • Page 21 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 806 B © Copyright BOERplay 7-2-2022 Revision:...
  • Page 22 1 / 1 SMD.BBP.072 A (4x) ! max. 12 Nm ! Detail A (4x) KST.DOP.010.060 BSV.021.010.190 KST.DON.010.060 BSV.030.010.002 BSV.010.010.010 KST.DOP.010.060 BSV.010.010.010 BSV.021.010.190 BSV.030.010.002 BSV.030.010.002 KST.DON.010.060 KST.DON.010.060 KST.DOP.010.060 SMD.BBP.072 MOD BBP 806 B © Copyright BOERplay 7-2-2022 Revision:...
  • Page 23 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module © Copyright BOERplay 29-8-2022 Revision: MOD BBP 008 x...
  • Page 24 20 mm KST.BBP.004.xxx xxx: 203 Orange Oranje / Orange / Naranja / Orange xxx: 502 Blue Blauw / Blau / Azul / Bleu A = A A mm A mm 0 mm © Copyright BOERplay 29-8-2022 Revision: MOD BBP 008 x...
  • Page 25 Ø11 mm (2x) Ø3 x 40mm A (2x) Detail A (2x) BSR.023.010.050 Detail B (1x) BSR.030.010.002 BSR.002.005.050 BSR.035.010.030 BSR.002.005.050 BSR.011.010.020 BSR.011.010.020 KST.ROR.006.000 BSR.023.010.050 BSR.030.010.002 BSR.035.010.030 KST.ROR.006.000 © Copyright BOERplay 29-8-2022 Revision: MOD BBP 008 x...
  • Page 26 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...
  • Page 27 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...
  • Page 28 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 29 Poteaux en plastique ou en bois OME.KAP.100.xxx xxx: 204 Orange RAL2004 Oranje / Orange / Naranja / Orange xxx: 524 Light blue RAL5024 Licht blauw, Hellblau, Azul claro, Bleu clair BSR.002.005.050 OME.KAP.100.xxx MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 30 Plastique ORE.BBP.076 A (4x) SME.BBP.018 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A (4x) BSR.026.010.120 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 BSR.026.010.120 KST.DOP.010.060 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 ORE.BBP.076 SME.BBP.018 © Copyright BOERplay 19-9-2022 Revision: A MOD BBP 746 x...
  • Page 31 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 798 G22 © Copyright BOERplay 22-9-2023 Revision:...
  • Page 32 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 798 G22 © Copyright BOERplay 22-9-2023 Revision:...
  • Page 33 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 771 G72 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 34 OPE.BBP.283.072 A (3x) 7 mm Detail A (3x) KST.DOP.006.030 BSR.024.010.055 BSR.002.005.030 KST.KNP.010.090 KST.DON.010.060 BSR.002.005.030 BSR.010.010.010 BSR.030.010.002 BSR.024.010.055 BSR.030.010.002 BSR.010.010.010 KST.DON.010.060 KST.DOP.006.030 KST.DOP.010.060 KST.DOP.010.060 KST.KNP.010.090 OPE.BBP.283.xxx MOD BBP 771 G72 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 35 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 771 G72 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 36 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 833 x © Copyright BOERplay 12-7-2022 Revision: A...
  • Page 37 SME.BBP.146.916 Detail A (8x) KST.DOP.010.060 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.021.010.130 BSR.021.010.130 BSR.030.010.002 KST.DOP.010.060 KST.DON.010.060 KST.DOP.010.060 SME.BBP.146.916 MOD BBP 833 x © Copyright BOERplay 12-7-2022 Revision: A...
  • Page 38 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 833 x © Copyright BOERplay 12-7-2022 Revision: A...
  • Page 39 D (7x) D (7x) C (2x) Detail C (4x) C (2x) BSR.025.006.030 Detail D (14x) BSR.030.006.002 BSR.011.006.012 BSR.025.006.030 BSR.025.006.030 SME.BBP.077.905 BSR.030.006.002 BSR.030.006.002 BSR.030.006.002 SMD.BBP.079 SME.BBP.145.905 SME.BBP.077.905 BSR.030.006.002 SME.BBP.145.905 BSR.011.006.012 BSR.011.006.012 SNT.BBP.062.xxx MOD BBP 833 x © Copyright BOERplay 12-7-2022 Revision: A...
  • Page 40 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 773 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 41 (2x) OPE.BBP.328.022 OPE.BBP.329.022 ✔ OPE.BBP.329.072 OPE.BBP.328.xxx OPE.BBP.329.xxx MOD BBP 773 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 42 A (8x) Detail B (16x) Detail A (8x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 OPE.BBP.288.072 BSR.052.008.060 OME.BBI.021 OPE.BBP.288.xxx MOD BBP 773 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 43 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 773 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 44 MOD.BBP.808 ... m 40 kg > Check 'order of assembly' controleer 'Montagevolgorde' überprüfen Sie die ,Montagereihenfolge' verifica el 'Orden de esemblado'   vérifiez Ordre de montage MOD BBP 773 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 45 Detail D (6x) D (6x) BSR.024.010.040 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.024.010.040 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 Remove NL Verwijder DE Entfernen ES Eliminar FR Supprimez MOD BBP 773 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 46 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 808 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 47 BSV.015.016.045 OPE.BBP.332.xxx BSR.030.016.003 BSR.021.016.040 BSV.015.016.045 BSR.021.016.040 BSR.030.016.003 OPE.BBP.332.xxx MOD BBP 808 © Copyright BOERplay 3-8-2022 Revision:...
  • Page 48 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 016 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 49 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 016 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 50 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 51 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 52 Detail B (3x) SME.BBP.077.xxx xxx: 320 Red Rood / Rot / Rojo / Rouge xxx: 905 Black Zwart / Schwarz / Negro / Noir BSR.011.006.012 BSR.011.006.012 BSR.030.006.002 BSR.025.006.030 BSR.030.006.002 SME.BBP.077.xxx BSR.030.006.002 SNT.BBP.057.xxx BSR.025.006.030 MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 53 Detail C (2x) BSV.020.006.040 BSV.035.006.020 BSV.035.006.020 BSV.010.006.006 KST.APL.075 BSV.010.006.006 BSV.020.006.040 BSV.035.006.020 KST.APL.075 MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 54 ✔ 0,49 m MOD BBP 203 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 55 Manuel de montage - module Kunststoff Plastico Plastique ORE.BBP.080 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A 50 mm ø3mm x 30 BSR.002.005.050 BSR.002.005.050 OME.VRB.903.VZP OME.VRB.903.VZP ORE.BBP.080 MOD BBP 742 x © Copyright BOERplay 19-1-2022 Revision:...
  • Page 56 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 750 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 57 OPE.BBP.236.072 A (5x) Detail A (5x) 7 mm KST.DOP.006.030 BSR.024.010.055 BSR.002.005.030 KST.KNP.010.090 Black Zwart Schwarz Negro Noir KST.DON.010.060 BSR.002.005.030 BSR.030.010.002 BSR.010.010.010 BSR.024.010.055 BSR.030.010.002 BSR.010.010.010 KST.DON.010.060 KST.DOP.006.030 KST.DOP.010.060 KST.DOP.010.060 KST.KNP.010.090 OPE.BBP.236.xxx MOD BBP 750 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 58 B (2x) Detail B (2x) OPE.BBP.311.072 ✔ BSR.010.008.008 BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OME.BBI.021 BSR.052.008.060 OPE.BBP.299.xxx OPE.BBP.311.xxx B (2x) OPE.BBP.322.072 Detail B (2x) OPE.BBP.341.072 ✔ BSR.010.008.008 BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OME.BBI.021 BSR.052.008.060 OPE.BBP.322.xxx OPE.BBP.341.xxx MOD BBP 750 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 59 B (3x) Detail B (3x) ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 BSR.052.008.060 OME.BBI.021 MOD BBP 750 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 60 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 KST.ROR.006.000 BSR.014.005.053 MOD BBP 750 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 61 Plastique ORE.BBP.078 A (6x) SME.BBP.018 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A (4x) BSR.026.010.120 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 BSR.010.010.010 KST.DOP.010.060 BSR.026.010.120 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 ORE.BBP.078 SME.BBP.018 MOD BBP 768 x © Copyright BOERplay 13-6-2023 Revision: A...
  • Page 62 Manuel de montage - module Kunststoff Plastico Plastique ORE.BBP.079 Ground level Maaiveld Bodennahe Nivel del suelo Niveau au sol Detail A 50 mm ø3mm x 30 BSR.002.005.050 BSR.002.005.050 OME.VRB.903.VZP OME.VRB.903.VZP ORE.BBP.079 MOD BBP 769 x © Copyright BOERplay 3-12-2021 Revision:...
  • Page 63 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 774 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 64 OPE.BBP.284.022 A (8x) OME.BBP.500.916 ORE.BBP.071 Detail B (2x) Detail A (8x) 80 mm BSR.030.010.002 BSR.030.010.002 BSR.010.010.010 BSR.024.010.080 BSR.021.010.130 BSR.010.010.010 BSR.021.010.130 BSR.024.010.080 KST.DOP.010.060 BSR.030.010.002 BSR.010.010.010 KST.DON.010.060 KST.DOP.010.060 BSR.030.010.002 OME.BBP.500.916 OPE.BBP.284.xxx ORE.BBP.071 KST.DON.010.060 MOD BBP 774 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 65 OPE.BBP.239.072 Detail C (2x) ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 BSR.052.008.060 OME.BBI.021 OPE.BBP.239.xxx MOD BBP 774 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 66 C (8x) OPE.BBP.285.072 OPE.BBP.285.072 Detail C (8x) ✔ BSR.010.008.008 OME.BBI.021 BSR.052.008.060 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 OPE.BBP.285.xxx MOD BBP 774 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 67 D (10x) Detail D (10x) KST.DOP.006.030 BSR.024.010.055 BSR.002.005.030 KST.KNP.010.090 KST.DON.010.060 BSR.002.005.030 BSR.030.010.002 BSR.010.010.010 BSR.024.010.055 BSR.010.010.010 BSR.030.010.002 KST.DON.010.060 KST.DOP.006.030 KST.DOP.010.060 KST.DOP.010.060 KST.KNP.010.090 MOD BBP 774 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 68 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 774 G22 © Copyright BOERplay 21-9-2023 Revision:...
  • Page 69 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 784 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 70 OPE.BBP.301.072 A (5x) Detail A (5x) 7 mm KST.DOP.006.030 BSR.024.010.055 BSR.002.005.030 KST.KNP.010.090 Black Zwart Schwarz Negro Noir KST.DON.010.060 BSR.002.005.030 BSR.030.010.002 BSR.010.010.010 BSR.024.010.055 BSR.030.010.002 BSR.010.010.010 KST.DON.010.060 KST.DOP.006.030 KST.DOP.010.060 KST.DOP.010.060 KST.KNP.010.090 OPE.BBP.301.xxx MOD BBP 784 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 71 B (2x) Detail B (2x) OPE.BBP.311.072 ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 OME.BBI.021 BSR.052.008.060 OPE.BBP.299.xxx OPE.BBP.311.xxx B (2x) OPE.BBP.322.072 Detail B (2x) OPE.BBP.341.072 ✔ BSR.010.008.008 BSR.010.008.008 OME.BBI.021 BSR.052.008.060 OME.BBI.021 OPE.BBP.322.xxx BSR.052.008.060 OPE.BBP.341.xxx MOD BBP 784 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 72 B (3x) Detail B (3x) ✔ BSR.010.008.008 OME.BBI.021 BSR.010.008.008 BSR.052.008.060 BSR.052.008.060 OME.BBI.021 MOD BBP 784 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 73 Postes de plástico o madera Postes de metal Poteaux en plastique ou en bois Poteaux en métal 30 mm 70 mm BSR.014.005.053 BSR.002.005.070 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.070 BSR.014.005.053 KST.ROR.006.000 MOD BBP 784 G22 © Copyright BOERplay 21-9-2023 Revision: A...
  • Page 74 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 015 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 75 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 015 x © Copyright BOERplay 24-2-2022 Revision:...

This manual is also suitable for:

Bbpe213.7up
