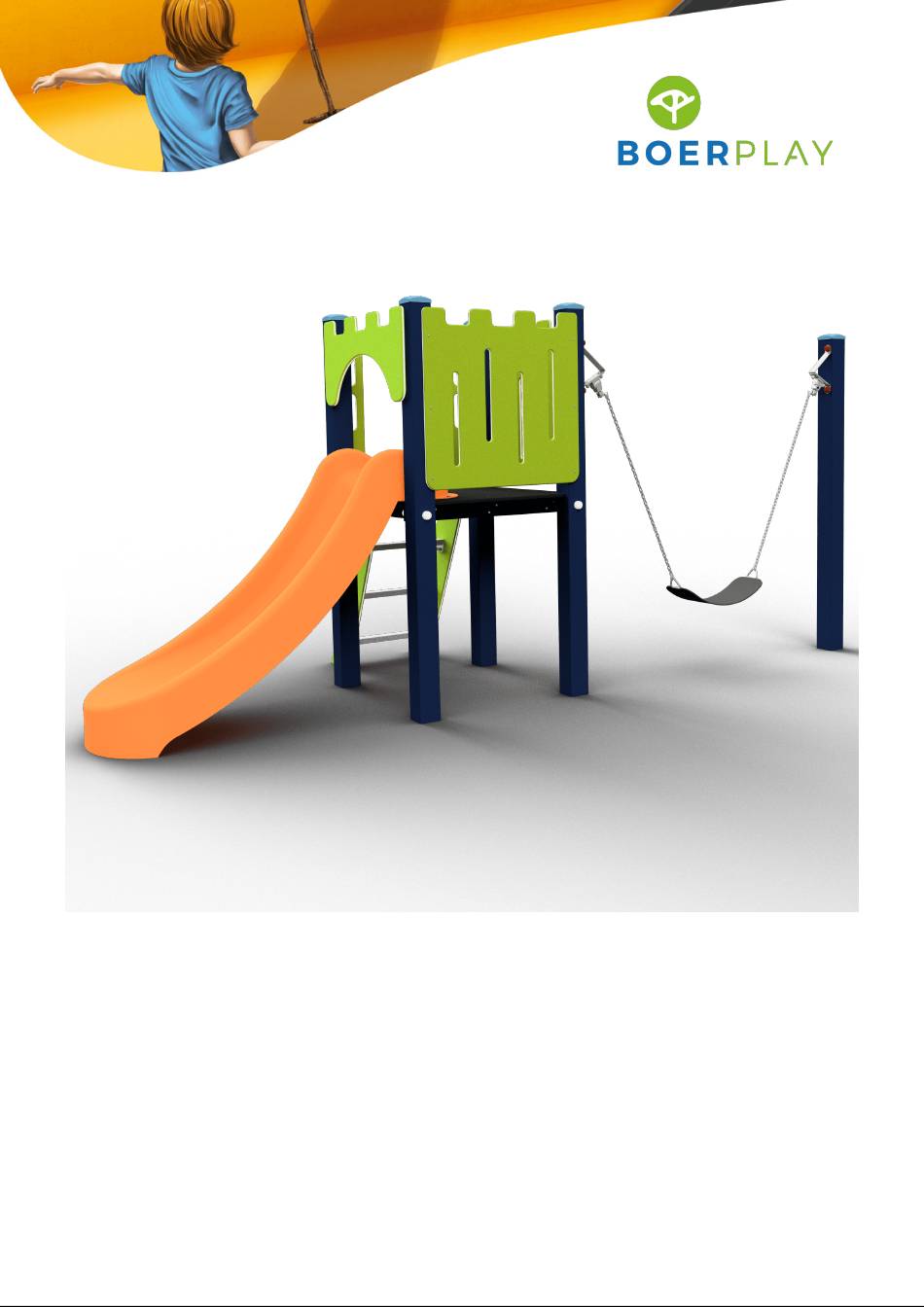

  • Page 1 Multi-play equipment Playcastle BBPE170.2AP...
  • Page 2 1,46 m 0,92 m 0,95 m 0,52 m 0,12 m 0,00 m 1,82 m 1,62 m 1,18 m 0,95 m 0,35 m 0,15 m 0,00 m * Vloerhoogte (Floor height) Benaming TOE BBP 170 2AP B Kasteel 1 toren Title Tekening Opmerking Basic Play...
  • Page 3 0,50 m 1,05 m 1,51 m 4,82 m 6,32 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE BBP 170 2AP B Kasteel 1 toren Title Tekening Opmerking Basic Play Drawing Comment Datum Obstakelvrije zone Obstacle free zone 4-12-2018 Date...
  • Page 4 0,81 m 0,41 m 0,39 m 2,27 m 0,30 m 0,51 m Grondmarkering Ground level marker 0,50 m Benaming TOE BBP 170 2AP B Kasteel 1 toren Title Tekening Opmerking Basic Play Drawing Comment Datum Bodemplan Groundplan 4-12-2018 Date...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
  • Page 6 1,82 m 1,78 m 0,95 m 0,00 m Voor (Front) 1,82 m 1,77 m 1,62 m 1,56 m 0,00 m Rechts (Right) Benaming TOE BBP 170 2AP B Kasteel 1 toren Title Tekening Opmerking Basic Play Drawing Comment Datum Afmetingen Dimensions 4-12-2018 Date...
  • Page 7 1,82 m 1,77 m 1,62 m 0,95 m 0,00 m Achter (Back) 1,82 m 1,77 m 1,70 m 1,62 m 0,35 m 0,00 m Links (Left) Benaming TOE BBP 170 2AP B Kasteel 1 toren Title Tekening Opmerking Basic Play Drawing Comment Datum...
  • Page 8 LOGBOOK Type indication Basic Play Article number BBPE170.2AP Product Name Multi-play equipment Playcastle Maximum fall height 1,0 m Construction year 2023 Certificate 142798 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 10: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Klinknagel bolkop 4,8 x 18 - RVS A2-70 Staander 2,3m 0,95m vloer Voetplaat 100 x 100 Benaming MOD BBP 001 A Staander 0,95m Title Tekening Opmerking Boer Basics Drawing Comment BOER Datum Samenstelling module Assembly module 8-10-2014 Date SPEELTOESTELLEN...
  • Page 14 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking SLUITRING M10 VZ Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 190 - VZ 8.8 Beschermdop M10-M12 Donut wit Dop wit Beschermdop M10-M12 VLOER BOER BASIC PLAY Schroef Assy 6 x 120 - RVS A2-70 Schroef Assy 5 x 50 - RVS A2-70 Vloerplaat...
  • Page 15 Type Progr. Bew. Rev. Benaming Volgnr Opmerking SCHROEF 5 x 50 Let op: toestel bij voorkeur niet met DOPMOER BORG RVS M10 de glijbaan op het zuiden plaatsen. Bolkopbout ISO 7380 M10 x 50 - RVS A2-70 SLUITRING Attention: it is advisable not to oriënt Carrosserie ring M10 - RVS A2-70 playground equipment with the slide...
  • Page 16 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Blindklinknagel bolkop 4.8 X 30 - Huls ALU, trekpen staal Schroef Assy 5 x 50 - RVS A2-70 Borgdopmoer M10 - RVS A2-70 SLOTBOUT M10 x 90 M10 x 40 - RVS A2-70 Slotbout SLUITRING Hoekje rood...
  • Page 17 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 18 Poteaux en plastique ou en bois OME.KAP.100.xxx xxx: 204 Orange RAL2004 Oranje / Orange / Naranja / Orange xxx: 524 Light blue RAL5024 Licht blauw, Hellblau, Azul claro, Bleu clair BSR.002.005.050 OME.KAP.100.xxx MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 19 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klinknagel bolkop 4,8 x 30 - RVS A2-70 Kasteelwand Streep Basic Play Benaming MOD BBP 017 A Kasteelwand Spleten Title Tekening Opmerking Boer Basic play Drawing Comment Datum Samenstelling module Assembly module 23-2-2018 Date...
  • Page 20 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Blindklinknagel bolkop 4.8 X 30 - Huls ALU, trekpen staal Kasteelpoort Basic Play Benaming MOD BBP 051 A Kasteelpoort Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Samenstelling module Assembly module 7-10-2014 Date SPEELTOESTELLEN...
  • Page 21 Type Progr. Bew. Rev. Benaming Volgnr Opmerking Klinknagel bolkop 4,8 x 18 - RVS A2-70 Staander Peuterschommel Voetplaat 100 x 100 Benaming MOD BBP 534 A Staander peuterschommel Title Tekening Opmerking Boer Basics Drawing Comment Datum Samenstelling module Assembly module 3-12-2018 Date...
  • Page 22 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Borgmoer M10 - RVS A2-70 M10 - RVS A2-70 Borgdopmoer Zeskantbout M10 x 120 - RVS A2-70 Bolkopbout ISO 7380 M10 x 20 - RVS A2-70 SLUITRING Schommelscharnier RVS A2-70 interplay donut M10 rood 84395000022 interplay dop M10 rood 84395000024...
  • Page 23 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgdopmoer M10 - VZ 8.8 Slotbout M10 x 130 - VZ 8.8 SLUITRING M10 VZ Verankering Basic play Benaming Verankeringsstang MOD BBP 536 G Title Tekening Opmerking Boer Basic Play Drawing Comment Datum Samenstelling module Assembly module 22-11-2023 Date...
