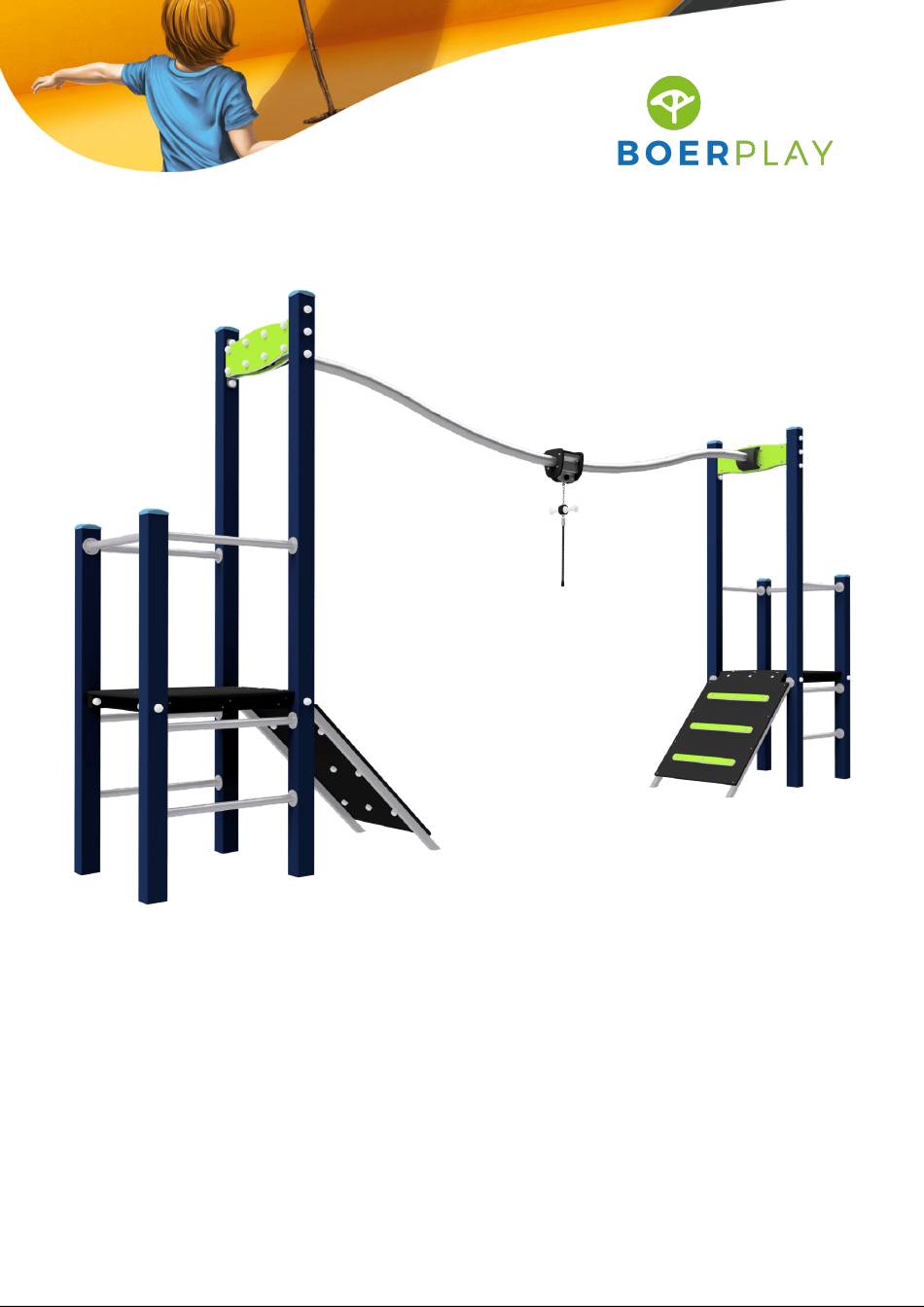

  • Page 1 Trackride BBPE055.5A...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBP 055 5A © Copyright BOERplay 7-12-2020 Revision: A...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 3,02 m 2,84 m 2,34 m 1,82 m 2,08 m 1,72 m 1,54 m 0,95 m 0,42 m 0,00 m 0,00 m BBP 055 5A © Copyright BOERplay 7-12-2020 Revision: A...
  • Page 4 Zona libre de obstáculos 4,00 m Zone libre d’obstacles Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles BBP 055 5A © Copyright BOERplay 7-12-2020 Revision: A...
  • Page 5 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois BBP 055 5A © Copyright BOERplay 7-12-2020 Revision: A...

  • Page 6: Assembly Manual

    Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD.BBP.001.A MOD.BBP.004.A MOD.BBP.009.A MOD.BBP.046.A MOD.BBP.699.A MOD.BBP.700.A MOD.BBP.707.G MOD.BBP.708.A MOD.BBP.700.A MOD.BBP.009.A MOD.BBP.707.G MOD.BBP.001.A MOD.BBP.699.A MOD.BBP.708.A MOD.BBP.004.A BBP 055 5A © Copyright BOERplay 7-12-2020 Revision: A...
  • Page 7 Benodigde gereedschappen Benötigtes Werkzeug Herramientas requeridas Outils nécessaires no 17 no 5 no 6 Ø5mm Ø10mm © Copyright BOERplay Revision:...
  • Page 8 ✔ ✔ Ø12mm (3x) ✔ Ø18mm (3x) Ø18mm (3x) 2,24 m 2,24 m 2,25 m 1,45 m 1,34 m 1,35 m 0,94 m 0,95 m 0,00 m 0,00 m 0,00 m BBP 055 5A © Copyright BOERplay 7-12-2020 Revision: A...
  • Page 9 2 / 5 assembly manual module MOD.BBP.707.G 3 / 5 assembly manual module MOD.BBP.700.A BBP 055 5A © Copyright BOERplay 7-12-2020 Revision: A...
  • Page 10 4 / 5 assembly manual module MOD.BBP.708.A 5 / 5 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBP 055 5A © Copyright BOERplay 7-12-2020 Revision: A...
  • Page 11 LOGBOOK Type indication Basic Play Article number BBPE055.5A Product Name Trackride Maximum fall height 1,0 m Construction year 2023 Certificate 065613 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 12 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 13: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 14 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 16 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Klinknagel bolkop 4,8 x 18 - RVS A2-70 Staander 2,3m 0,95m vloer Voetplaat 100 x 100 Benaming MOD BBP 001 A Staander 0,95m Title Tekening Opmerking Boer Basics Drawing Comment BOER Datum Samenstelling module Assembly module 8-10-2014 Date SPEELTOESTELLEN...
  • Page 17 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking SLUITRING M10 VZ Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 190 - VZ 8.8 Beschermdop M10-M12 Donut wit Dop wit Beschermdop M10-M12 VLOER BOER BASIC PLAY Schroef Assy 6 x 120 - RVS A2-70 Schroef Assy 5 x 50 - RVS A2-70 Vloerplaat...
  • Page 18 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...
  • Page 19 Postes de metal Postes de plástico o madera Poteaux en métal Poteaux en plastique ou en bois 18 mm 50 mm BSR.014.005.052 BSR.002.005.050 KST.ROR.006.000 ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 KST.ROR.006.000 MOD BBP 009 x © Copyright BOERplay 22-2-2022 Revision: A...
  • Page 20 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 21 Poteaux en plastique ou en bois OME.KAP.100.xxx xxx: 204 Orange RAL2004 Oranje / Orange / Naranja / Orange xxx: 524 Light blue RAL5024 Licht blauw, Hellblau, Azul claro, Bleu clair BSR.002.005.050 OME.KAP.100.xxx MOD BBP 046 x © Copyright BOERplay 24-2-2022 Revision:...
  • Page 22 Benaming Opmerking Klinknagel bolkop 4,8 x 18 - RVS A2-70 Staander trackride 0,95 m vloer Voetplaat 100 x 100 Benaming MOD BBP 699 A Staander module trackride Title Tekening Opmerking BasicPlay Drawing Comment Datum Samenstelling module Assembly module 7-12-2020 Date...
  • Page 23 Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module BSR.010.010.010 BSR.021.010.120 BSR.021.010.130 BSR.023.010.070 BSR.023.010.100 BSR.030.010.002 BSR.034.010.002 BSR.035.010.030 KST.BBI.024 KST.DON.010.020 KST.DOP.010.020 KST.ROR.010.000 OME.BBI.109.320 OME.BBI.177.320 OPE.BBI.171.061 OPE.BBI.172.061 SME.BBI.030.372 MOD BBP 700 A © Copyright BOERplay 7-12-2020 Revision:...
  • Page 24 1 /4 (2x) SME.BBI.030.372 Detail A (6x) KST.DOP.010.020 BSR.010.010.010 BSR.030.010.002 KST.DON.010.020 OME.BBI.177.320 KST.DON.010.020 BSR.030.010.002 BSR.021.010.130 KST.DOP.010.020 BSR.010.010.010 BSR.021.010.130 BSR.030.010.002 KST.DON.010.020 KST.DOP.010.020 OME.BBI.177.320 SME.BBI.030.372 MOD BBP 700 A © Copyright BOERplay 7-12-2020 Revision:...
  • Page 25 2 / 4 OPE.BBI.172.061 KST.BBI.024 MOD.BBP.709.G OPE.BBI.172.061 KST.BBI.024 KST.BBI.024 OME.BBI.109.320 OPE.BBI.172.061 SME.BBI.030.372 MOD.BBP.709.G MOD BBP 700 A © Copyright BOERplay 7-12-2020 Revision:...
  • Page 26 3 /4 (2x) BSR.023.010.070 BSR.035.010.030 BSR.034.010.002 BSR.010.010.010 BSR.010.010.010 BSR.034.010.002 KST.ROR.010.000 KST.ROR.010.000 BSR.034.010.002 BSR.010.010.010 BSR.021.010.120 BSR.021.010.120 BSR.023.010.070 BSR.034.010.002 BSR.035.010.030 KST.ROR.010.000 MOD BBP 700 A © Copyright BOERplay 7-12-2020 Revision:...
  • Page 27 4 /4 (2x) OPE.BBI.171.061 Detail B (8x) KST.DOP.010.020 BSR.010.010.010 BSR.030.010.002 KST.DON.010.020 BSR.030.010.002 BSR.023.010.100 BSR.010.010.010 BSR.023.010.100 BSR.030.010.002 KST.DON.010.020 KST.DOP.010.020 OPE.BBI.171.061 MOD BBP 700 A © Copyright BOERplay 7-12-2020 Revision:...
  • Page 28 M10 x 40 - RVS A2-70 Slotbout SLUITRING Beschermdop M10-M12 Donut wit Dop wit Beschermdop M10-M12 Dakbeugel 138° Ukkepuk Oploop trackride Anti slip strook Steun oploop Basic Play Steun oploop rechts Basic Play Benaming MOD BBP 708 A Oploopwand Trackride...
  • Page 29 M10 x 40 - RVS A2-70 Slotbout SLUITRING Beschermdop M10-M12 Donut wit Dop wit Beschermdop M10-M12 Dakbeugel 138° Ukkepuk Oploop trackride Anti slip strook Steun oploop Basic Play Steun oploop rechts Basic Play Benaming MOD BBP 708 A Oploopwand Trackride...
  • Page 30 Manual de ensamblado - módulo Manuel de montage - module BSR.010.010.010 BSR.023.008.035 BSR.023.010.060 BSR.023.010.070 BSR.030.010.002 DRD.WHL.040.020 KST.DON.010.060 KST.DOP.010.060 OME.PKN.159 OPE.BBI.196.090 OPE.BBI.197.090 SME.BBI.033.320 OPE.BBI.454.090 BSR.002.005.035 SME.BBI.044.320 BSR.033.016.038 BSR.031.005.000 OPE.BBI.443.090 KST.310.183.403 OME.BBI.169.320 KST.RNG.005.008 BSR.070.010.070 SNT.BBP.047 KET.005.002.018 MOD BBP 707 G © Copyright BOERplay 11-2-2021 Revision: A...
  • Page 31 1 / 5 OPE.BBI.454.090 BSR.033.016.038 SME.BBI.044.320 BSR.002.005.035 SMD.BBI.611: OPE.BBI.454.090 BSR.002.005.035 SME.BBI.044.320 BSR.033.016.038 2 /5 (2x) BSR.010.010.010 BSR.030.010.002 DRD.WHL.040.020 BSR.030.010.002 OME.PKN.159 BSR.030.010.002 BSR.023.010.060 SME.BBI.033.320 BSR.010.010.010 BSR.023.010.060 BSR.030.010.002 DRD.WHL.040.020 OME.PKN.159 SME.BBI.033.320 MOD BBP 707 G © Copyright BOERplay 11-2-2021 Revision: A...
  • Page 32 3 / 5 OPE.BBI.197.090 OPE.BBI.196.090 BSR.023.008.035 BSR.023.008.035 OPE.BBI.196.090 OPE.BBI.197.090 4 / 5 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.023.010.070 BSR.030.010.002 BSR.010.010.010 BSR.023.010.070 BSR.030.010.002 KST.DON.010.060 KST.DOP.010.060 MOD BBP 707 G © Copyright BOERplay 11-2-2021 Revision: A...
  • Page 33 5 / 5 KST.RNG.005.008 BSR.031.005.000 KET.005.002.018 BSR.031.005.000 KST.RNG.005.008 KST.310.183.403 KST.RNG.005.008 BSR.031.005.000 OPE.BBI.443.090 BSR.070.010.070 OME.BBI.169.320 Loctite Glue Lijm Kleben Pegamento Colle SNT.BBP.047 SMD.BBI.699: BSR.031.005.000 OPE.BBI.443.090 KST.310.183.403 OME.BBI.169.320 KST.RNG.005.008 BSR.070.010.070 SNT.BBP.047 KET.005.002.018 MOD BBP 707 G © Copyright BOERplay 11-2-2021 Revision: A...
