BOERPLAY Traffic light Installation Instructions Manual

Hide thumbs Also See for Traffic light:

Advertisement

Quick Links

Download this manual
Traffic light
BBIE003.B

Advertisement

loading
Need help?

Need help?

Do you have a question about the Traffic light and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY Traffic light

Summary of Contents for BOERPLAY Traffic light

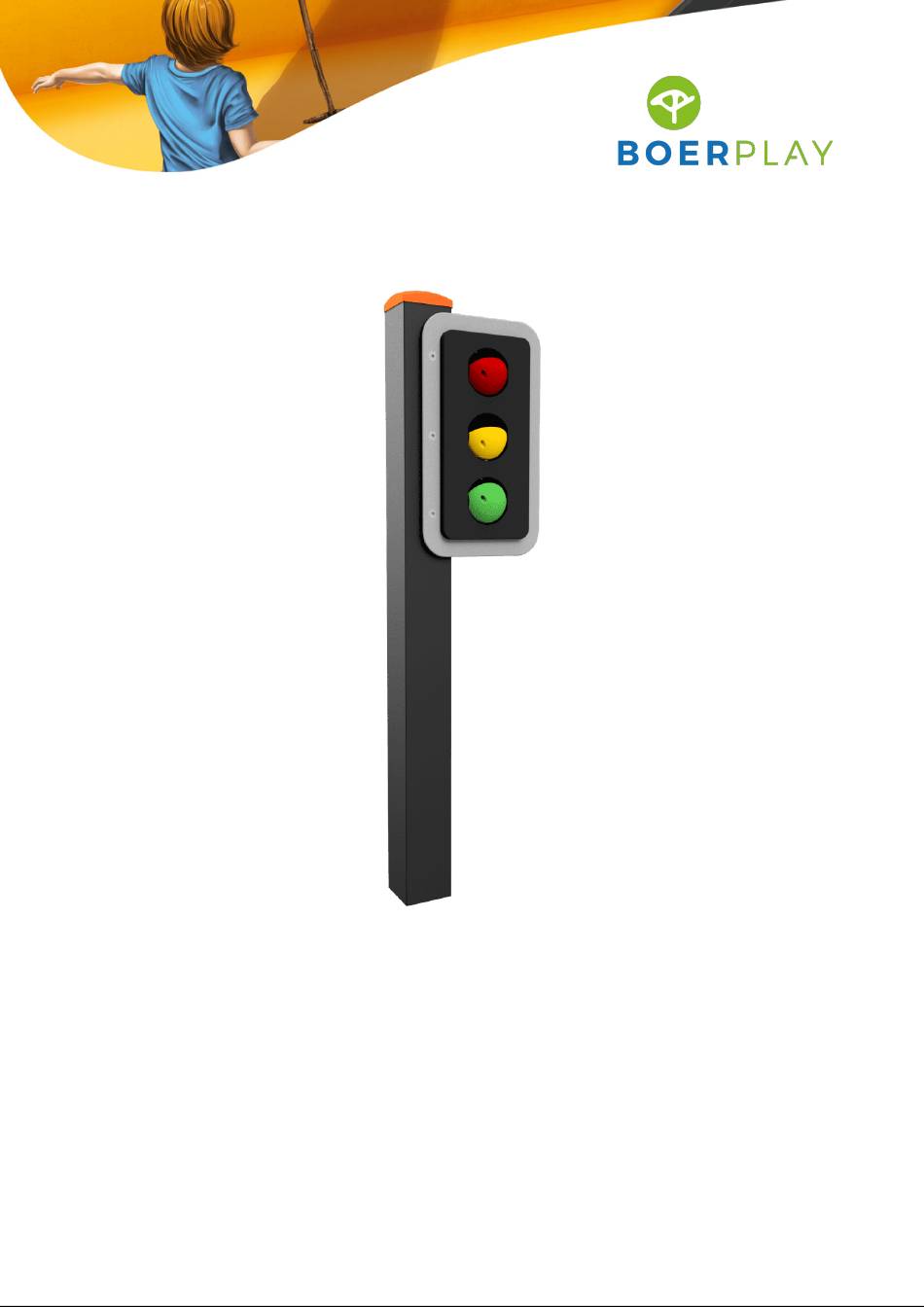

  • Page 1 Traffic light BBIE003.B...

  • Page 2: Installation Instructions

    Si el tierra no ayuda a la estabilidad del equipo que se está colocando, vierta 50L de hormigón por poste. FR - Important ! Si le sol ne contribue pas à la stabilité de l’équipement à placer, versez 50L de béton par poteau. BBI 003 x © Copyright BOERplay 16-3-2021 Revision:...
  • Page 3 Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,17 m 0,06 m 0,00 m 1,22 m 1,18 m 0,71 m 0,00 m BBI 003 x © Copyright BOERplay 16-3-2021 Revision:...
  • Page 4 Zona libre de obstáculos Zone libre d’obstacle 3,29 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacle BBI 003 x © Copyright BOERplay 16-3-2021 Revision:...
  • Page 5 Nivel del suelo para postes de metal Nivel del suelo para postes de plástico o madera Niveau au sol pour poteaux en métal Niveau au sol pour poteaux en plastique ou en bois BBI 003 x © Copyright BOERplay 16-3-2021 Revision:...

  • Page 6: Assembly Manual

    Plastic Roestvrij staal Kunststof Blauw aluminium Zwart aluminium Hout Edelstahl Kunststoff Blaues Aluminium Schwarzes Aluminium Holz Acero inoxidable Plastico Aluminio azul Aluminio negro Madera Acier inoxydable Plastique Aluminium bleu Aluminium noir Bois BBI 003 x © Copyright BOERplay 16-3-2021 Revision:...
  • Page 7 Ø3 mm Ø5 mm Ø11 mm Ø12 mm Ø4.8 mm Only for metal posts Alleen voor metalen staanders Nur für Pfosten aus Metall Solo para postes de metal Seulement pour poteaux en métal BBI 003 x © Copyright BOERplay 16-3-2021 Revision:...
  • Page 8 1 / 3 Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage assembly manual module MOD.BBI.178 2 / 3 assembly manual module MOD.BBI.027 BBI 003 x © Copyright BOERplay 16-3-2021 Revision:...
  • Page 9 3 / 3 BOER PLAY xxx.xxx.xxx EN 1176 www.boerplay.com BBI 003 x © Copyright BOERplay 16-3-2021 Revision:...
  • Page 10 LOGBOOK Type indication Figura Play Article number BBIE003.B Product Name Traffic light Maximum fall height n.v.t. Construction year 2023 Certificate 066064 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
  • Page 11 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...

  • Page 12: Inspection And Maintenance Intervals

    Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
  • Page 13 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
  • Page 16 - module Montagehandleiding - module Montageanleitung - Modul Manual de ensamblado - módulo Manuel de montage - module MOD BBI 027 x © Copyright BOERplay 28-10-2021 Revision: A...
  • Page 17 Poteaux en plastique ou en bois 70 mm KST.LAM.013.006 BSR.002.005.070 Glue NL Lijm DE Kleber ES Pegamento 50 mm FR Colle ø5mm ø3mm x 30 BSR.002.005.050 BSR.014.005.052 18 mm BSR.002.005.050 BSR.014.005.052 BSR.002.005.070 KST.LAM.013.006 MOD BBI 027 x © Copyright BOERplay 28-10-2021 Revision: A...
  • Page 18 2 / 2 Detail A (3x) BSR.024.010.140 BSR.036.010.028 KST.DON.010.060 BSR.030.010.002 BSR.010.010.010 KST.DOP.010.060 BSR.010.010.010 BSR.024.010.140 BSR.030.010.002 BSR.036.010.028 KST.DON.010.060 KST.DOP.010.060 MOD BBI 027 x © Copyright BOERplay 28-10-2021 Revision: A...
  • Page 19 - module Montagehandleiding - module Montageanleitung - Moduls Manual de ensamblado - módulo Manuel de montage - module MOD BBI 178 © Copyright BOERplay 16-3-2021 Revision:...
  • Page 20 Green Groen Grün Verde Vert A (3x) Detail A (3x) KST.BOL.036.xxx BSR.005.004.019 KST.BBI.035 KST.BOL.036.xxx BSR.005.004.019 BSR.053.005.035 Detail B (8x) BSR.070.012.120 KST.BBI.035 KST.BOL.036.010 KST.BOL.036.030 BSR.070.012.120 KST.BOL.036.060 KST.BOL.036.090 KST.ROR.006.000 KST.ROR.006.000 BSR.053.005.035 OPE.BBI.549.072 BSR.005.004.019 OPE.BBI.550.090 MOD BBI 178 © Copyright BOERplay 16-3-2021 Revision:...
