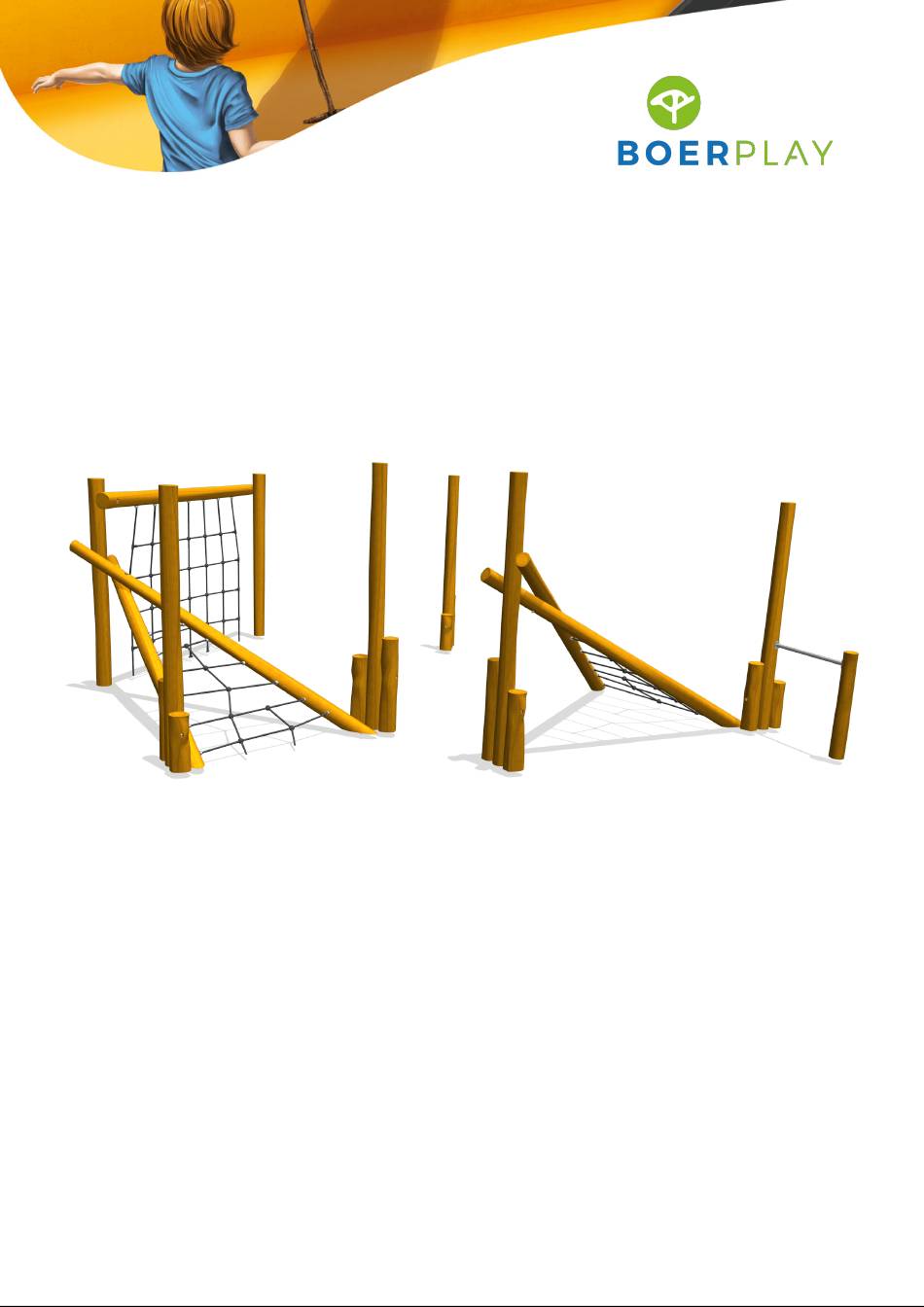

- Page 1 Multi-play equipment PSTE105.018...
- Page 2 7,21 m 4,60 m 4,40 m 3,01 m 2,70 m 0,29 m 0,00 m 2,33 m 2,10 m 1,96 m 1,50 m 0,43 m 0,00 m 5,53 m Benaming TOE PST 105 018 B Palenwoud Title Tekening Opmerking Adventure Play Drawing Comment Datum...
- Page 3 8,49 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE PST 105 018 B Palenwoud Title Tekening Opmerking Adventure Play Drawing Comment Datum Obstakelvrije zone Obstacle free zone 20-9-2019 Date...
- Page 4 0,31 m 0,42 m 0,92 m 1,38 m 0,85 m 0,20 m 0,42 m 0,46 m 1,22 m 2,21 m 0,91 m 0,51 m 0,51 m 1,10 m 2,06 m 0,45 m 3,04 m 1,66 m Grondmarkering Ground level marker 0,75 m Benaming TOE PST 105 018 B...
- Page 5 Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Duikel Rek H=900 Stelt 50 Lengte element 2,8 m Stelt 70 Lengte element 3,0 m Verticaal net 3,0 x 1,5 Adventure Play Opklimnet vlak Adventure Play Benaming TOE PST 105 018 B Palenwoud Title Tekening...
- Page 6 Supplied parts: Geleverde delen: A - Posts 2,8m(2x) + 3,3m + net A - Paal 2,8m(2x) + paal 3,3m + net B - Climbingnet B - Opklimnet vlak C - Plank 2,5m C - Plank 2,5m D - Stilt 50 D - Stelt 50 E - Stilt 70 E - Stelt 70...
- Page 7 2,33 m 2,33 m 2,13 m 2,13 m 2,10 m 1,75 m 0,93 m 0,63 m 0,63 m 0,43 m 0,43 m 0,00 m 0,00 m 2,33 m 2,10 m 1,90 m 1,91 m 1,43 m 0,93 m 0,63 m 0,43 m 0,00 m 0,00 m...
- Page 8 LOGBOOK Type indication Adventure Play Article number PSTE105.018 Product Name Multi-play equipment Maximum fall height 2,0 m Construction year 2023 Certificate 033411 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 9 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
- Page 10 Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear.
- Page 11 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 13 1,62 m 1,51 m 0,00 m Type Progr. Bew. Rev. Benaming Volgnr. Opmerking 5 x 70 - RVS A2-70 Schroef Assy Schroef Assy 5 x 50 - RVS A2-70 KRAALRING RVS FACET Paal 14-16 Lengte =1600 Standaard plank 120x20 Lengte = 500 Duikelbuis Adventure Play Benaming...
- Page 14 Grondmarkering Ground level marker Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Standaard plank 120x20 Lengte = 500 Stelt 50-70 Lengte element 2,8 m Benaming MOD PST 007 021 A Stelt 50 Title Tekening Opmerking Lengte element 2,8 m...
- Page 15 Grondmarkering Ground level marker Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Standaard plank 120x20 Lengte = 500 Stelt 70 Lengte element 3,0 m Benaming MOD PST 007 022 A Stelt 70 Title Tekening Opmerking Lengte element 3,0 m...
- Page 16 Gaten >230mm Type Progr. Volgnr. Bew. Rev. Benaming Opmerking M12, L= 240, RVS A2-70 Draadeind+borgm.+ringen+dop ø10 X 60 - RVS A2-70 Houtdraadbout Paal 14-16 Lengte =4600 Paal 14-16 Lengte =4300 Standaard plank 120x20 Lengte = 2500 Opklimnet vlak Adventure Play Bus + VZ schroef Touw 16 mm Benaming...
- Page 17 B ( 1 : 2 ) 3,21 m A ( 1 : 4 ) Grondmarkering Ground level marker Type Progr. Volgnr. Bew. Rev. Benaming Opmerking C ( 1 : 10 ) Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 Schroef Assy 5 x 70 - RVS A2-70 Houtdraadbout ø10 X 60 - RVS A2-70 Borgmoer...
