Summary of Contents for BOERPLAY PSTE105.013

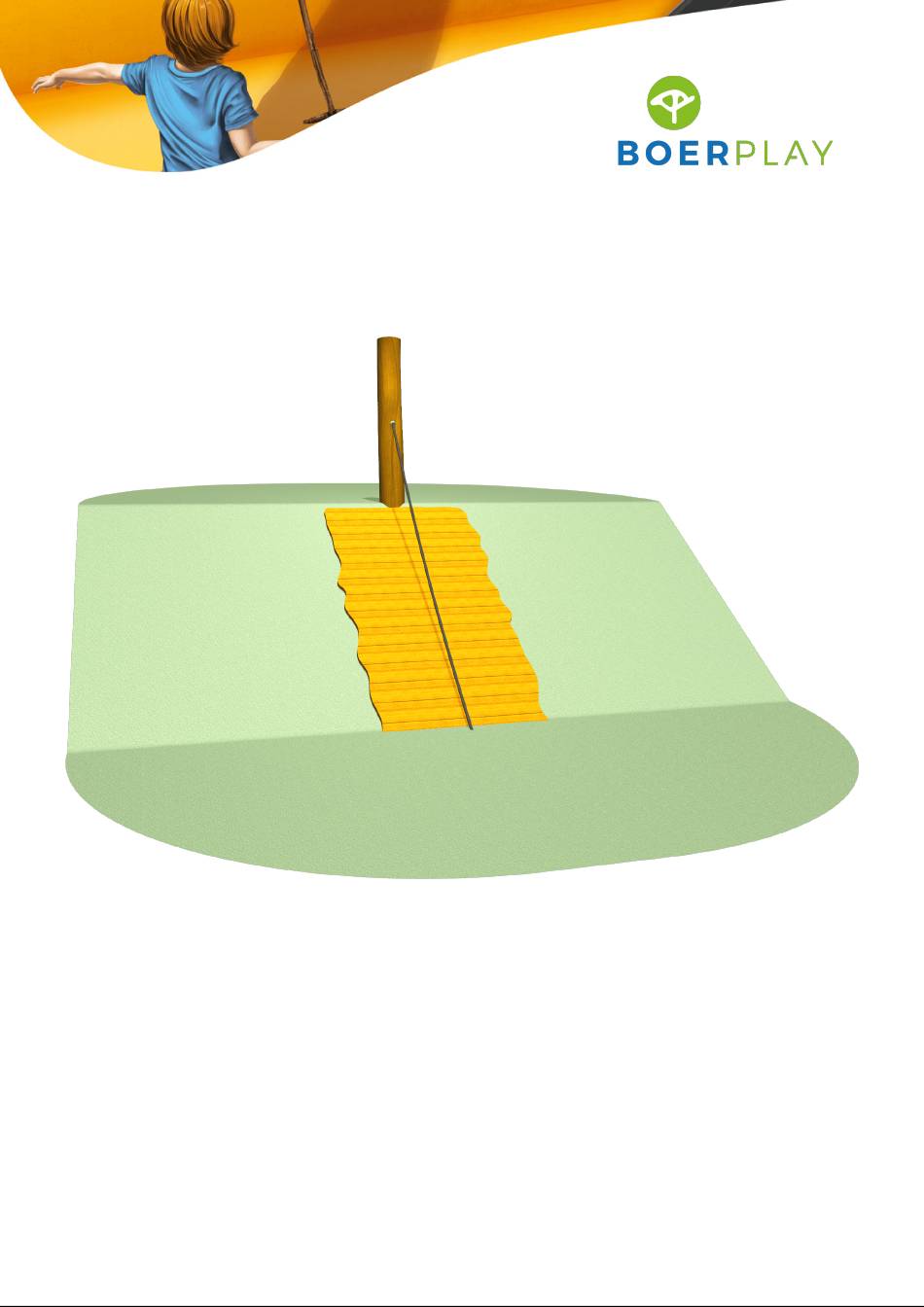

- Page 1 Climbing ramp for Hill 1m PSTE105.013...
-
Page 2: Main Dimensions
Hoofdafmetingen Hauptabmessungen Dimensiones principales Dimensions principales 0,00 m 0,50 m 1,01 m 2,11 m 1,68 m 1,02 m 0,00 m PST 105 013 © Copyright BOERplay 29-3-2022 Revision: A... - Page 3 Zona libre de obstáculos Zone libre d’obstacles 4,00 m Impact area Opvangzone Ausprallbereich Zona de impacto Zone d‘impact Obstacle free zone Obstakelvrije zone Hindernissfreie raum Zona libre de obstáculos Zone libre d’obstacles PST 105 013 © Copyright BOERplay 29-3-2022 Revision: A...
- Page 4 Bodemplan Bodenplan Plan de superficie Plan de surface 2,13 m 2,51 m 1,01 m 2,88 m Grondmarkering Ground level marker 0,42 m Grondmarkering Ground level marker 1,82 m 0,56 m PST 105 013 © Copyright BOERplay 29-3-2022 Revision: A...
-
Page 5: Order Of Assembly
Montagevolgorde Montagereihenfolge Orden de esemblado Ordre de montage Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Klimwand 1,8 m Adventure Play Paal tbv PST.105.013 PST 105 013 © Copyright BOERplay 29-3-2022 Revision: A... - Page 6 1 - Correct assembly and all the fasteners 2 - Controleer de afmetingen van de valbodem t.o.v. het toestel 2 - Check the dimensions of the safety area compared to the play equipment Typeplaatje Identification plate PST 105 013 © Copyright BOERplay 29-3-2022 Revision: A...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE105.013 Product Name Climbing ramp for Hill 1m Maximum fall height < 0,6 m Construction year 2023 Certificate 032693 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Standaard plank 120x20 Lengte = 2300 Standaardplank 120x30 Lengte = 1200 70 mm Vierkante paal 1000 mm Lengte 70 mm Vierkante paal 3000 mm Lengte Slotbout met lip M12x070 Touw 3,4m © Copyright BOERplay 26-6-2023 Revision: B MOD PST 042 002...
- Page 13 Paal 14-16 Lengte =1700 Standaard plank 120x20 Lengte = 900 Slotbout met lip M12x150 M12 - RVS A2-70 Sluitring RING KUNSTSTOF D-sluiting 5 MM RVS BORGMOER Dop zwart Beschermdop M10-M12 MOD PST 105 013 © Copyright BOERplay 29-3-2022 Revision: A...
