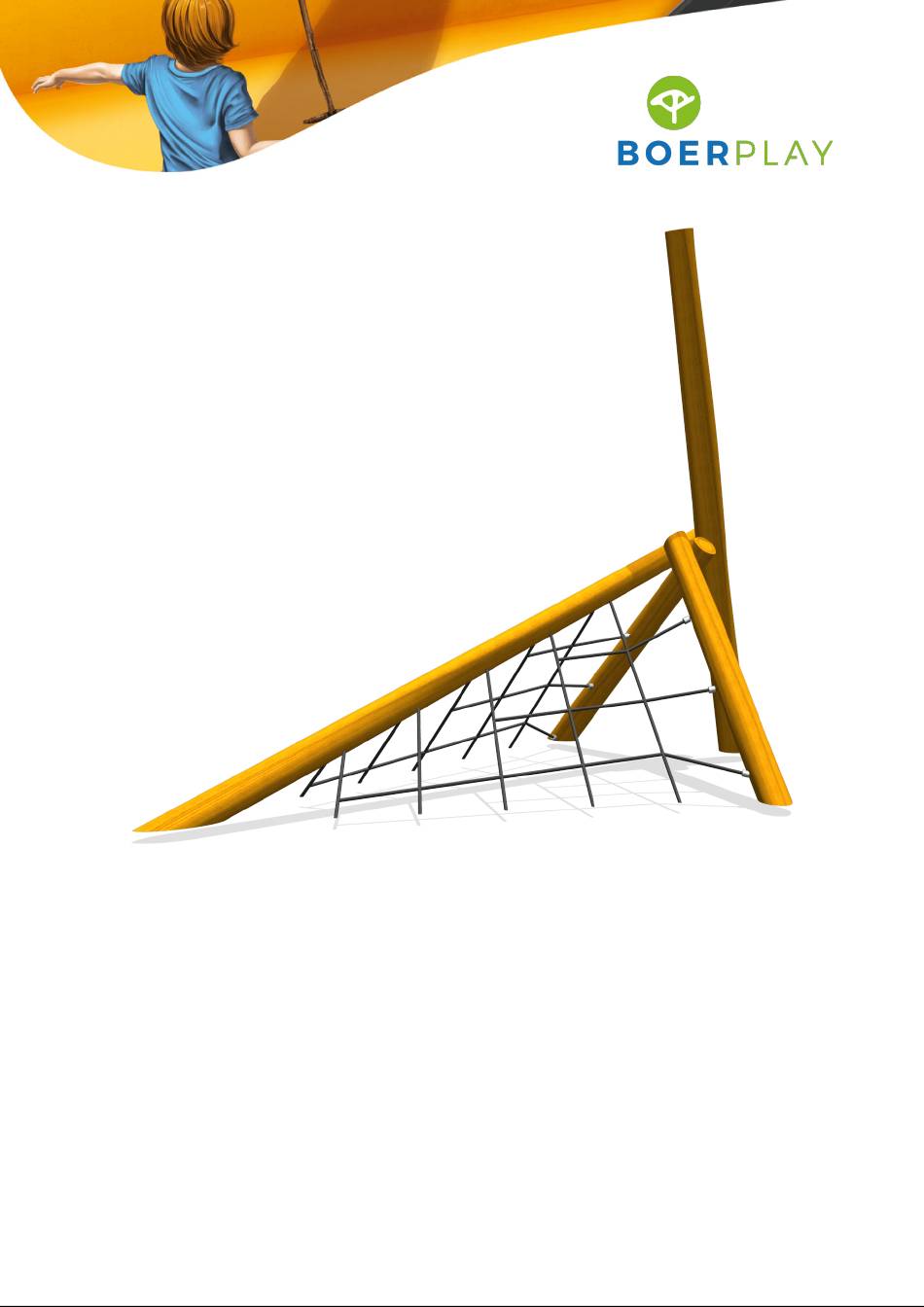

- Page 1 Climbing net Trap PSTE105.030...
- Page 2 Staander afschuinen aan ligger, zodat er geen kans is op halsbeknelling 2,80 m 1,28 m 1,22 m 1,07 m 0,00 m 2,07 m Benaming TOE PST 105 030 Klimnet fuik Title Tekening Opmerking Adventure Play Drawing Comment Datum Afmetingen Dimensions 17-5-2013 Date...
- Page 3 5,33 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE PST 105 030 Klimnet fuik Title Tekening Opmerking Adventure Play Drawing Comment Datum Obstakelvrije zone Obstacle free zone 17-5-2013 Date...
- Page 4 5,34 m 3,59 m 0,49 m 2,84 m 2,39 m 1,72 m 0,00 m Grondmarkering Ground level marker Benaming TOE PST 105 030 Klimnet fuik Title Tekening Opmerking Adventure Play Drawing Comment Datum Bodemplan Groundplan 17-5-2013 Date...
- Page 5 Typeplaatje Identification plate Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Paal 16-18 Lengte = 3600 Driehoek Opklimnet Adventure Play Benaming TOE PST 105 030 Klimnet fuik Title Tekening Opmerking Adventure Play Drawing Comment Datum Modules Modules 17-5-2013 Date...
- Page 6 Geleverde delen: Supplied parts: A - Driehoek opklimnet A - Triangle climbing net B - Paal 16 - 18 B - Post 16-18 Bevestiging sets: Mounting kits: 1 - RVS M10 bevestigingsset 1 - M10 stainless steel fastener sets Montagevolgorde: Assembly sequence: 1 - Graaf de gaten volgens het bodemplan en plaats hierin A 1 - Dig the holes according the ground plan and place A...
- Page 7 LOGBOOK Type indication Adventure Play Article number PSTE105.030 Product Name Climbing net Trap Maximum fall height 1,4 m Construction year 2024 Certificate 035450 Inspection body TUV Nederland QA BV Ekkersrijt 4401 5692 DL Son Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 Openingen altijd > 230 mm Openings always > 230 mm B ( 1 : 4 ) A ( 1 : 4 ) Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Draadeind+borgm.+ringen+dop M12, L= 260, RVS A2-70 Borgmoer M6 - VZ 8.8 Zeskantbout M6 x 40 - VZ 8.8 Pin-Torx - VZ 8.8...
- Page 13 Benaming MOD PST 021 012 B Driehoek Opklimnet Title Tekening Opmerking Adventure Play Drawing Comment Datum Samenstelling module Assembly module 5-7-2019 Date...
- Page 14 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking 5 x 70 - RVS A2-70 Schroef Assy Paal 14-16 Lengte =3600 Standaard plank 120x20 Lengte = 500 Benaming MOD PST 007 028 A Paal 14/16 Title Tekening Opmerking Lengte = 3600 Drawing Comment Datum Samenstelling module Assembly module...
