INSTRUCTION MANUAL – SW404
WI-FI COLOR WEATHER FORECAST with 5 DAYS
FORECAST
P. 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SW404 and is the answer not in the manual?

Questions and answers

Related Manuals for La Crosse Technology SW404

Summary of Contents for La Crosse Technology SW404

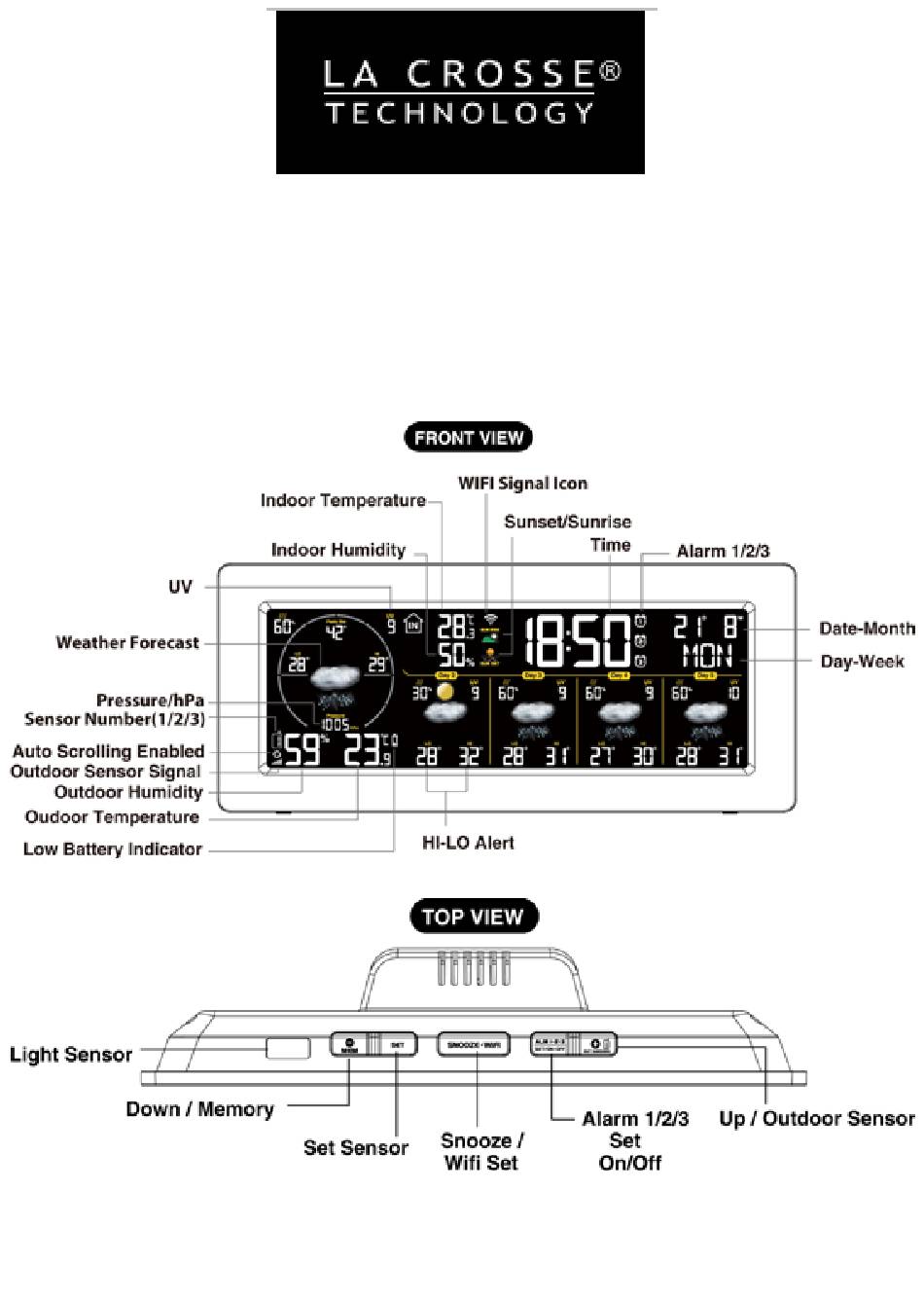

  • Page 1 INSTRUCTION MANUAL – SW404 WI-FI COLOR WEATHER FORECAST with 5 DAYS FORECAST P. 1...
  • Page 2 POWER UP THE WI-FI WEATHER STATION Insert the 5V 1.2A AC/DC adaptor (included) to an AC wall outlet and then the DC jack to the back of your clock to power your clock. Remark: make sure 5V~ adaptor is being connected. Using adaptors with higher voltage (e.g.
  • Page 3 The temperatures readings will get stable and become more accurate after the unit is powered up for around 30 minutes. REMARKS: Keep in mind that your outdoor transmitter has a 50-meter open air transmission with no obstructions. Actual transmission range will vary depending on what is in the path of the signal.
  • Page 4 Insert the holder to the bottom of the outdoor transmitter for desktop or insert it to the back of the transmitter for wall mount purpose. CONNECT MOBILE APP WITH THE WI-FI WEATHER STATION Download Tuya Smart App: According to the mobile phone brand, search for graffiti through the IOS APP Store or Android Google Play, find the APP with the icon below, and download the APP.
  • Page 5 Quick Setup 1. Slide open the battery cover at the back of your wireless outdoor transmitter, then insert 2 x AAA new alkaline batteries to the battery compartment. Make sure the Channel selector switch is at 1 position. Replace the battery cover. Make sure (Channel 1) is displayed under the outdoor temperature.
  • Page 6 Step 1 Step 2 P. 6...
  • Page 7 Step 3 Step 4 P. 7...
  • Page 8 Step 5 Step 6 P. 8...
  • Page 9 Step 7 P. 9...
  • Page 10 Note: The paired WIFI hotspot must be 2.4GHz, this product only supports 2.4GHz wireless network □ If the product does not automatically enter the pairing mode when powered on for the first time, you can press and hold the WIFI button for more than 3 seconds to enter the pairing mode manually, and the “...

  • Page 11: Main Interface

    Main interface P. 11...
  • Page 12 Second interface Third interface P. 12...
  • Page 13 APP setting alarm According to the picture, switch to the main panel, click "ALARM SET" in the panel, jump to the second interface, click the slider to turn on and off the alarm clock, click the three ALARM columns, jump to the third interface, you can make an alarm Repeat the setting of time and week, click "Confirm"...
  • Page 14 Main interface P. 14...
  • Page 15 Second interface Third interface P. 15...
  • Page 16 Note: Weekly repetition in the APP can be set independently for each day Note: The alarm will sound for 5 minutes if you do not deactivate it by pressing any button. In this case the alarm will be repeated automatically after 24 hours. Note: Rising alarm sound (crescendo, duration: 5 minutes) changes the volume 3 times whilst the alarm signal is heard.
  • Page 17 Main interface Daily graph P. 17...
  • Page 18 Monthly graph Conversion channel P. 18...
  • Page 19 APP setting temperature alert According to the picture, switch to the main panel, click "temperature alert" in the panel, jump to the second interface, click the corresponding temperature alarm menu of different channels to jump to the third interface. In the third interface, click the slider to turn on or off the corresponding alarm function, and set the upper and lower limits of the alarm by sliding the temperature value.
  • Page 20 Main interface P. 20...
  • Page 21 Second interface Third interface P. 21...
  • Page 22 SETTING UP THE WI-FI WEATHER STATION BY MANUAL To set up time, time format, calendar, measurement unit, snooze duration and day of week language Press and hold SET, the hour digit flash. Press button to set the hours. Press and hold will accelerate your setting.
  • Page 23 Then press SET once again, hpa flash. Press button to select hpa or inHg. 10. Then press SET once again, 05 flash. Press button to set the snooze duration from 5 minutes to 60 minutes. 11. Then press SET once again, ENG flash. Press button to select the language of ENG, GER, FRE, SPA, ITA, DUT, FIN, SWE.
  • Page 24 Then press once again to complete set-up. If no key is pressed in approximate 10 seconds at any time during set-up, the clock will exit the alarm set-up mode. To turn on or off daily alarm At normal time display mode, press once to turn on Alarm 1 only, appears on the LCD.
  • Page 25 Press once to stop the alarm temporarily, the corresponding keeps flashing. The alarm will beep again according to your set snooze duration. When the alarm is sounding, press once, the alarm will stop for the day, become static, alarm will come on again at the same time next day.
  • Page 26 Weather forecast indicator Weather condition Icon Sunny Sunny and Cloudy (Partly Sunny) Cloudy Rainy Stormy P. 26...
  • Page 27 Wind Haze Frost To read maximum-minimum in-out temperatures and humidities At normal time display mode, press once to view the maximum indoor- outdoor temperatures and humidities records with “MAX” icons appearing on the display. Press again to view the minimum indoor-outdoor temperatures and humidities and the air pressure with “MIN”...
  • Page 28 If lost connection with outdoor transmitter When the outdoor temperature and humidity digits show '---", the wireless transmission is either interrupted or lost. Press and hold the button of the Wi-Fi Weather Station to restart signal searching from the outdoor transmitter (the icon on display flashing).
  • Page 29 To synchronize your weather station with a third outdoor sensor, repeat the same step by choosing on your weather station and select 3 on the switch on your third transmitter. Reset the Wi-Fi connection If necessary, user can press and hold button to reset the WIFI connection between the App and the device.

  • Page 30: Troubleshooting

    Trouble shooting Problem Solution LCD is blank Make sure the AC/DC adaptor is plugged into a working AC outlet properly. Make sure the DC jack is plugged into the weather station properly. No Outdoor Temperature Press and hold on the and Humidity is displayed weather station to search for outdoor temperature signal again.
  • Page 31 outdoor transmitter with new alkaline batteries. No other interfering sources are being used (such as computer monitors, TV sets, headphones, or speakers) in the path of signal from the outdoor sensor. The signal travels in a straight line, an electrical source near that “line” may cause interference.

  • Page 32: Specifications

    Do not plug in any other AC/DC adaptor with incorrect specifications or voltage. Always place your outdoor transmitter in a dry and shaded area away from direct sunlight or rain. The outdoor transmitter is not waterproof and is not intended for permanent submersion in liquids.
  • Page 33 RH% Resolution Indoor humidity accuracy and Outdoor humidity accuracy: 30% ~ 70% ±5% Out of these ranges ±7% Time format 24 hours Time 0:00 Alarm 1 and 2 and 3 6:00 am Alarm Duration 5 minutes Snooze Duration 5 minutes Transmission frequency 433 MHz Transmission range...

  • Page 34: Liability Disclaimer

    LIABILITY DISCLAIMER •The electrical and electronic wastes contain hazardous substances. Disposal of electronic waste in wild country and/or in unauthorized grounds strongly damages the environment. •Please contact your local or/and regional authorities to retrieve the addresses of legal dumping grounds with selective collection. •All electronic instruments must from now on be recycled.
  • Page 35 ABOUT AC/DC POWER SUPPLY Do not use the device: ABOUT AC/DC POWER SUPPLY -if the power supply or the power cable is damaged, -in the event of a malfunction, -if the device has been damaged in any way. Never use sharp objects to access the inside of the power supply. Do not disassemble the power supply, do not throw it into a fire.
  • Page 36 RED DIRECTIVE 2014/53/EU Summary of the Declaration of Conformity: We hereby declare that this wireless transmission device does comply with the essential requirements of RED Directive 2014/53/EU LA CROSSE TECHNOLOGY 6 A RUE DU COMMERCE 67118 GEISPOLSHEIM FRANCE P. 36...
  • Page 37 AC/ DC adapter power supply Information published Value and precision Unit Manufacturer’s name or SHENZHEN KEYU POWER trade mark, commercial SUPPLY TECHNOLOGY CO., registration number and LTD. address 91440300591889293H Lane3,Yuquan East Road, the 2nd Industrial park, Yulv , Guangming District, Shenzhen ,Guangdong Province .
