ANGEL ANCHOR
Part #: 00260
Instruction Manual
Do not throw instructions away.
Read and understand instructions before
using this equipment.
2
Introduction
2
Worker Classifications
2
Applicable Safety Standards
2
Product Specific Applications
3
Correct Anchor Positioning
4
Product Specifications and Materials
5
Installation and Use
6
Maintenance, Cleaning, and Storage
6
Limitations
6
Compatibility
7
Safety Information
8
Labels
9
Diagrams
9
Inspection
10
Inspection Log
Advertisement
Table of Contents
Related Manuals for Guardian 00260
Summary of Contents for Guardian 00260
- Page 1 85006 Rev. I ANGEL ANCHOR Part #: 00260 Instruction Manual Introduction Worker Classifications Applicable Safety Standards Product Specific Applications Correct Anchor Positioning Product Specifications and Materials Installation and Use Maintenance, Cleaning, and Storage Limitations Compatibility Safety Information Labels Diagrams Inspection Inspection Log Do not throw instructions away.
-
Page 2: Worker Classifications
Introduction Applicable Safety Standards Thank you for purchasing a Guardian Angel When used according to instruction Anchor. This manual must be read and specifications, this product meets or exceeds all understood in its entirety, and used as part of an applicable OSHA 1910.140 &... - Page 3 Correct Anchor Positioning This chart details allowable working zones required to reduce risk of swing falls and improper side loading. ALWAYS adhere to information specified by chart. Anchor Distance From Working Distance Along Roof Working Direction from Leading Edge (Y) Edge (Either Direction) (X) Perpendicular (Ø) 6 ft...
-
Page 4: Specifications

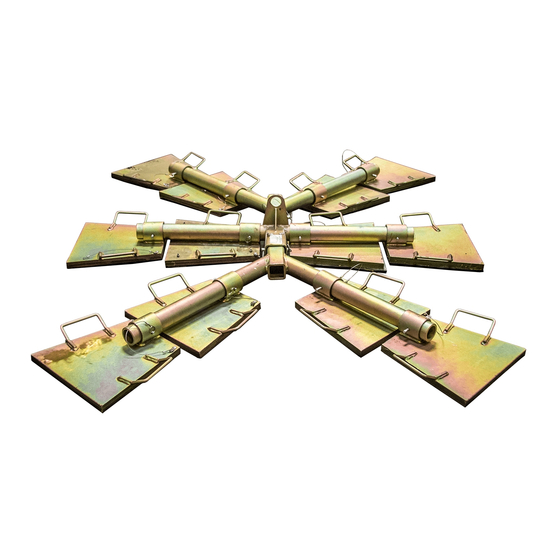

Central Frame Frame Member (6) Weighted Pad (12) Connection Point #00380 Swivel Top Attachment (Not Included) SRL (Not Included) Locking Bar (12) inserted through Pad Collar and secured with Pin (12) Materials Galvanized steel Part # Description 00260 Angel Anchor... -
Page 5: Installation And Use
Installation and Use Installation Step 1: Select the intended position of the Prior to installation, plan your system: Angel Anchor, ensuring that no part of the Determine suitable location for anchor; anchor is less than 10’ (3 m) from any edge, ensure location is free of debris, rot, decay, roof opening, or leading edge. -
Page 6: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, Compatibility and Storage When making connections with Angel Anchor, eliminate all possibility of roll-out. Roll-out Cleaning after use is important for maintaining occurs when interference between a hook and the safety and longevity of the Angel Anchor. the attachment point causes the hook gate to Remove all dirt, corrosives, and contaminants unintentionally open and release. -
Page 7: Safety Information
Safety Information Snap hooks, carabiners, and other connectors must be selected and applied in a compatible WARNING! Failure to understand and fashion. All risk of disengagement must be comply with safety regulations may result eliminated. All snap hooks and carabiners must in serious injury or death. - Page 8 IMMEDIATELY REMOVE FROM USE IN THE EVENT OF A FALL Angel Anchor Prior to use, read and understand all instructions provided at time of shipment from manufacturer. Part # 00260 Avoid contact with all hazards, ⚠WARNING including electrical shock, corrosive chemicals, and Serial # sharp/abrasive edges and surfaces.
- Page 9 Diagram A - Connections At least every 12 months, a Competent Person (CP) other than the user must inspect Angel Anchor. Competent Person inspections MUST be recorded in inspection log in instruction manual and on equipment inspection grid label. The Competent Person must sign their initials in the box corresponding to the month ...
-
Page 10: Inspection Log
Inspection Log Serial No: Date of first issue: Model #: User: Date: Results/Condition: Inspected by: Next Inspection Date:... - Page 11 Notes...
- Page 12 This warranty is not transferable to any other Guardian service and does not apply to product that is resold after having been put into service. No other person, firm, entity, or the like is authorized to assume or assign for Guardian any other liability in connection with the sale or use of Guardian’s products.
