Page 1: Table Of Contents
Product Name: Bolt Hole Anchor Part #: 00230 Instruction Manual Do not throw away these instructions! Read and understand these instructions before using equipment! Introduction Applicable Safety Standards Worker Classifications Product Specific Applications 1 - 2 Limitations 2 - 3... -
Page 2: Introduction
Introduction Thank you for purchasing a Guardian Fall Protection Bolt Hole Anchor. This manual User Information must be read and understood in its entirety, and used as part of an employee training program as required by OSHA or any Date of First Use: applicable state agency. -
Page 3: Limitations
Restraint: Bolt Hole Anchor may be used in Restraint applications. Restraint systems prevent workers from reaching the leading edge of a fall hazard. Always account for fully deployed length of lanyard/SRL. Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs. - Page 4 Compatibility: When making connections with Bolt Hole Anchor, eliminate all possibility of roll-out. Roll-out occurs when interference between a hook and the attachment point causes the hook gate to unintentionally open and release. All connections must be selected and deemed compatible with Bolt Hole Anchor by a Competent Person.
-
Page 5: Components And Specifications

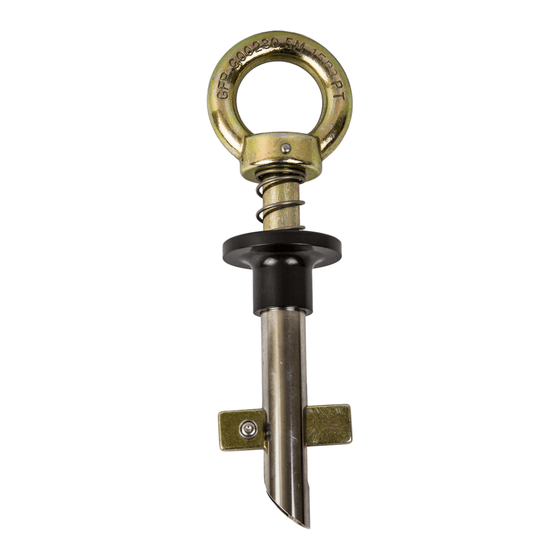

Components and Specifications Materials: steel, stainless steel, and aluminum. Spring-Loaded Anchor Toggle Connection Point Blade 8¾” Installation and Use Prior to use, plan your system: Bolt Hole Anchor may be installed in steel substrates ONLY. Minimum substrate thickness: ¼”. Minimum installation distance from all edges or corners: 2”. Compatible installation hole diameter: ¾”... -
Page 6: Maintenance, Cleaning, And Storage
Maintenance, Cleaning, and Storage If Bolt Hole Anchor fails inspection in any way, immediately remove it from service, and contact Guardian to inquire about its return or repair. Field serviceability testing is not required, and should not be done by the end user. -
Page 7: Safety Information
Safety Information Failure to understand and comply with safety regulations may result in serious injury or death. Regulations included herein are not all-inclusive, WARNING are for reference only, and are not intended to replace a Competent Person’s judgment or knowledge of federal or state standards. Do not alter equipment. -
Page 8: Labels
Labels www.guardianfall.com Bolt Hole Anchor Part #: 00230 DOM: Serial #: PRIOR TO USE, read and understand all manufacturer’s instructions provided with equipment. Compliant with ANSI Z359.18-17, ANSI A10.32-12, OSHA 1910, & OSHA 1926 Subpart M. Type A anchorage connector.
