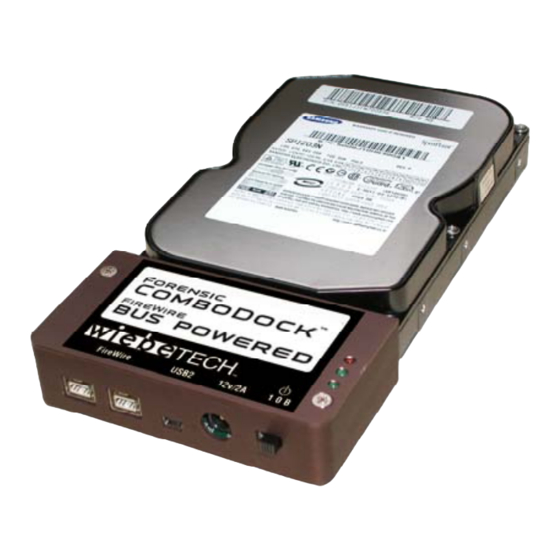

Forensic ComboDock
from suspect 3.5" IDE drives. It quickly attaches drives via FireWire 800 (400 compatible). With two
FireWire ports, it's daisy-chainable for more versatility.
• Triple status indicators – show power connected, power on/off, and hard drive access.
• Rugged design, built to last – Grab it and go! Forensic ComboDock is tough as nails and made to
last. The small and rugged case contains a complete, high speed Oxford Semiconductor OXFW922
bridge and is constructed from briefcase-tough aluminum for durability. World-compatible AC adapter
accepts 100-240VAC so you can trot the globe.
• Connect even more types of drives with Combo Adapters
Use the dock in conjunction with our lineup of Combo Adapters and retrieve data on other drive
types such as 1.8" Toshiba (found in iPods), 1.8" Hitachi drives, MicroDrives (found in iPod mini),
PCMCIA drives, 2.5" notebook drives and SATA drives.
Forensic Device User Advisory
We recommend that you perform a final check on this product.
Prior to first use, please verify that the write-blocking function of this product is working properly. This
is easily done: attach a known good formatted drive, and verify that the drive mounts properly on your
computer. Use a drive that has data on it that you are willing to overwrite. Transfer files to the drive.
The files will appear to transfer to the drive. Thereafter, unmount the drive and remount the drive.
The files that you wrote to the drive should not appear after the drive is remounted. If they do appear,
there is a problem with your Forensic Device, and you should contact our support department for
further instructions.
WiebeTech support may be reached at:
(866) 744-8722 (toll free)
(316) 744-8722 (international)
(316) 744-1398 (fax)
support@wiebetech.com
Phone: Toll Free 866.744.8722 Main 316.744.8722 • Fax: 316.744.1398 •
USER'S MANUAL
Revised January 23, 2006

Features

• Bus-powered – The outer FireWire port accepts
bus power from hosts that provide adequate power,
allowing single cable operation—no AC required!
• Portable and rugged write-blocked solutions to
image drives in the field – WiebeTech's
proprietary write-blocking technology offers easy
read-only access to suspect hard drives through
high speed FireWire 800 (400 compatible)
interfaces.
• Retrieve data from 3.5" IDE drives through
FireWire 800 (400 compatible) – Forensic
ComboDock is the best solution for accessing data
(email)
sales@wiebetech.com
with Bus Power
support@wiebetech.com
www.wiebetech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCD-BP and is the answer not in the manual?

Questions and answers

Summary of Contents for WiebeTech FCD-BP

  • Page 1 AC required! • Portable and rugged write-blocked solutions to image drives in the field – WiebeTech's proprietary write-blocking technology offers easy read-only access to suspect hard drives through high speed FireWire 800 (400 compatible) interfaces.
  • Page 2: Installation Instructions

    Use the four screws that are supplied. Attach a rubber bumper to each corner. Extra bottom plates are available from WiebeTech. (Rotate the plate 180° to provide a “shelf” for the dock.) Drive-Side Connectors A Four-pin power connector (Female)
  • Page 3 Steady Green light Power is ON / Not enough BUS power Drive pulling too much power / Data access sales@wiebetech.com • support@wiebetech.com Power is applied to DOCK •...
  • Page 4 Changes or modifications not expressly approved by WiebeTech could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
