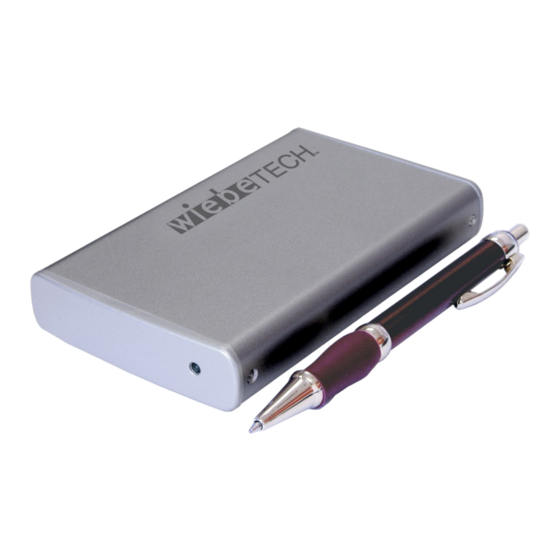

ToughTech™ mini
Easy to Use – ToughTech is used by anyone who needs more storage space for backups, music,
games, Internet downloads, photography, audio/video editing or server storage; and they use it
everywhere from homes to government labs.
Shock absorbers for your hard drive – Your car has shock absorbers, so why not your hard drive?
ToughTech mini introduces ToughMount™ Anti-Shock Protection. ToughMount strips are mounted
between the drive and the enclosure protecting your data against shock and reducing enclosure noise.
Cool and quiet – ToughTech has an all aluminum design meant to draw heat away from the hard drive.
The entire product acts like a heat dissipater, helping to keep your drive cool. And because it doesn't
need a fan, ToughTech is quiet.
More portable than ever – Not much bigger than a pack of playing cards, ToughTech mini will easily
travel with you. It fits easily in a shirt pocket or briefcase. You don't even need to use an AC adapter
when connecting to a powered FireWire host (although a world-compatible AC adapter is included).
Table of Contents
Before Installation
Box contents
Identifying parts of the unit
Warning notices
Drive Installation Instructions
Connecting to a computer
Usage with Macs
Usage with Windows Computers
Technical Specifications
T o u g h T e c h U s e r M a n u a l
USER'S MANUAL
(Revised January 17, 2008)
Features
Fast speed – ToughTech mini uses fast SATA drives and
the new Oxford 924 chipset to maximize data speeds.
Data transfers up to 800 Mbps through FireWire (1394b).
Widely Compatible – The ToughTech mini works right out
of the box with no new drivers needed. It works with any
modern operating system including Mac OS X, Windows
XP, Windows Vista and most Linux distributions.
Easy to connect – ToughTech mini offers three different
connection types (FireWire 400, FireWire 800, and USB
2.0). Cables for each type are included.
2
2
2
2
3
6
7
7
8
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WiebeTech ToughTech TTM
Summary of Contents for WiebeTech ToughTech TTM
- Page 1 ToughTech™ mini USER’S MANUAL Easy to Use – ToughTech is used by anyone who needs more storage space for backups, music, games, Internet downloads, photography, audio/video editing or server storage; and they use it everywhere from homes to government labs.
-
Page 2: Before Installation
WiebeTech LLC Before Installation Check the accessories with your ToughTech mini. Please contact WiebeTech if any items are missing or damaged. The box should contain: ToughTech mini ToughTech mini enclosure FireWire 400 cable FireWire 800 cable USB cable Packet of screws for hard drive... -
Page 3: Hard Drive Installation
WiebeTech LLC Hard Drive Installation These instructions are only necessary if you’re installing your own hard drive inside the ToughTech mini. If you purchased the product with a hard drive pre-installed, you may skip to the next section (Connecting the ToughTech to a Computer). - Page 4 WiebeTech LLC You are now ready to install your 2.5” SATA drive. Line up the drive’s interface with the SATA interface on the circuit board. You may need to angle the drive as you push it into place. After connecting the drive to the SATA interface on the circuit board, the drive should lay flat on the board.
- Page 5 WiebeTech LLC Slide the drive tray back into the enclosure. Make sure the LED indicator is properly aligned with opening on the front of the enclosure. Reassemble the enclosure by replacing the screws removed in step 1. The ToughTech mini is now assembled and ready for connection to a computer.
- Page 6 WiebeTech LLC Connecting the ToughTech to a Computer Connect the AC/DC power adapter. This step is only needed when connecting via USB or to an unpowered FireWire host. Plug the other end of the USB or FireWire cable to an available port on the computer.
-
Page 7: Usage With Macintosh Computers
WiebeTech LLC Usage with Macintosh Computers Compatibility The ToughTech is fully plug-and-play under Mac OS X. No drivers are needed. The USB2 port is USB 1.1 compatible. ToughTech mini uses SATA (Serial ATA) hard drives only. Mounting and Unmounting Volumes If the hard drive installed in the ToughTech is already formatted, an icon representing the drive’s... -
Page 8: Technical Specifications
Support is standing by and ready to help. We offer 90 days of free phone support at 1- 866-744-8722. After 90 days, email support is available at support@wiebetech.com. ToughTech and ToughMount Anti-Shock Protection are trademarks of WiebeTech LLC. Other marks are the property of their respective owners.
