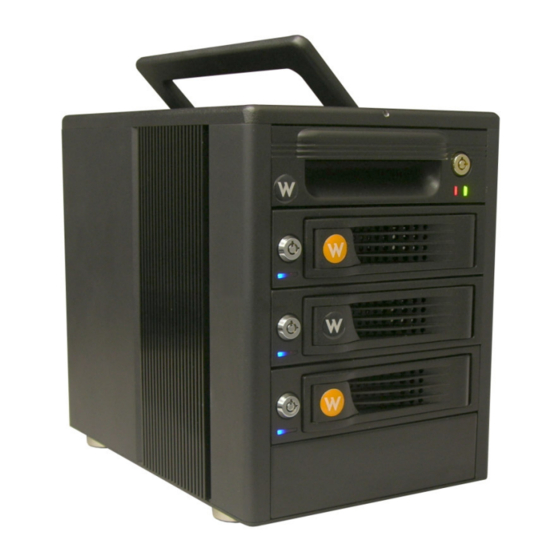

Thank you for purchasing WiebeTech's FRTX400H-QJ.
blocked technology, quadruple connectivity for each bay, and power/access LEDs all inside of a tough,
durable aluminum frame and lid. Whether in the field or in a lab FRTX400H-QJ is a must-have for
forensic investigators.
Features
TrayFree™ technology! Simply slide in a SATA drive and shut the door. Each SATA bay offers a
•
lock for additional security, and shock protection for longer drive life. All metal bays.
Copy data from IDE or SATA drives. Bays one (PATA) and three (SATA) are write-blocked. Bays
•
two and four (SATA) are read/write making it possible to write to SATA drives from the write-
blocked drives.
Quadruple connectivity. FRTX400H-QJ comes with all the cables you need to connect to eSATA,
•
FireWire 800, FireWire 400 and USB.
Each hard drive has its own data channel for maximum speed.
•
Power and access LEDs let you know status of your hard drives.
•
Sturdy aluminum case provides excellent heat dissipation and rugged durability.
•
Heavy duty handle allows for easy transport.
•

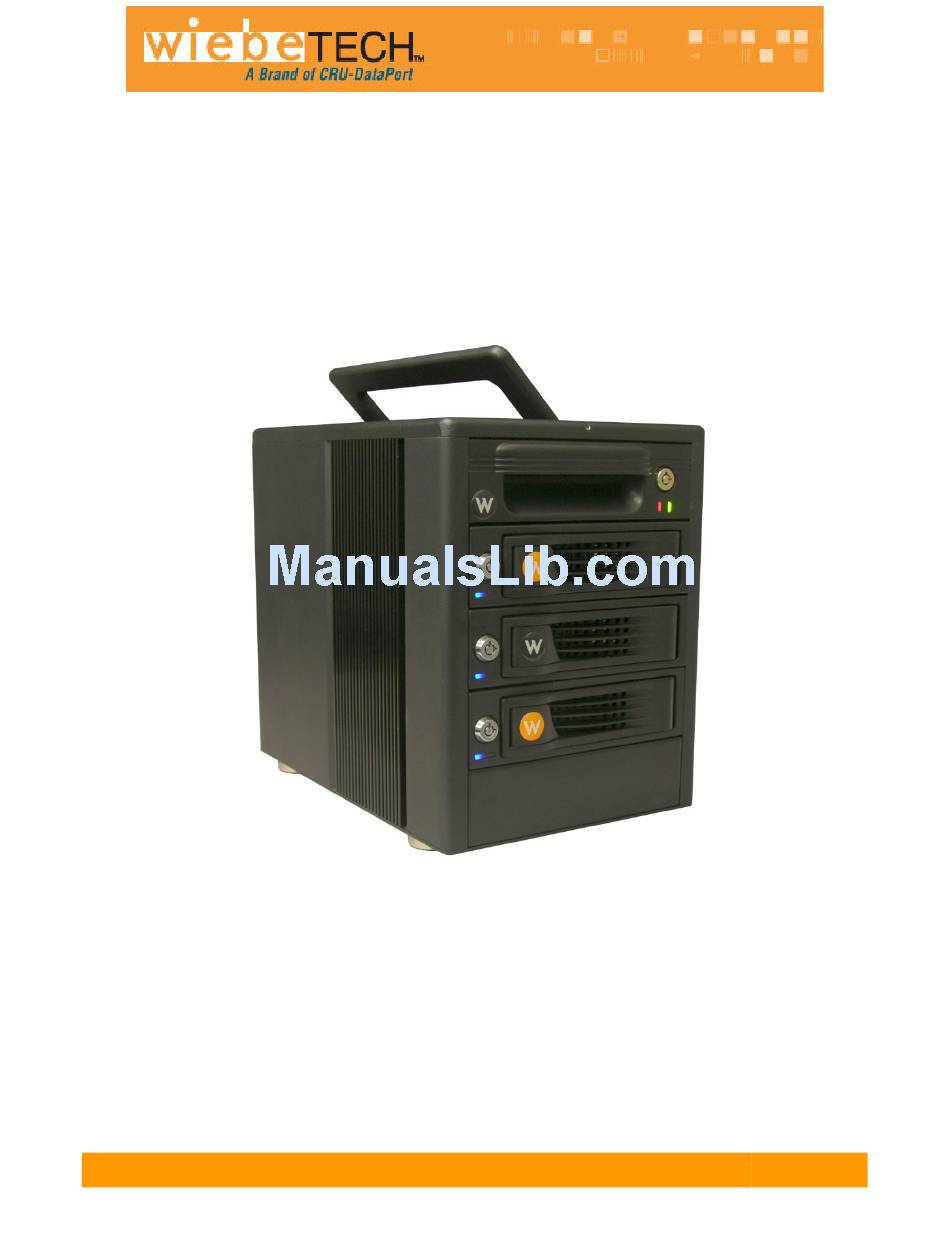

F R T X 4 0 0 H - Q J U s e r ' s M a n u a l
FRTX400H-QJ™
USER'S MANUAL
Revised December 19, 2008
FRTX400H-QJ features WiebeTech's write-
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Forensic FRTX400H-QJ and is the answer not in the manual?

Questions and answers

Related Manuals for WiebeTech Forensic FRTX400H-QJ

Summary of Contents for WiebeTech Forensic FRTX400H-QJ

  • Page 1 FRTX400H-QJ™ Thank you for purchasing WiebeTech’s FRTX400H-QJ. blocked technology, quadruple connectivity for each bay, and power/access LEDs all inside of a tough, durable aluminum frame and lid. Whether in the field or in a lab FRTX400H-QJ is a must-have for forensic investigators.

  • Page 2: Table Of Contents

    CRU-WiebeTech Table of Contents 1. Pre-Installation Steps 1.1 FRTX400H-QJ Accessories 1.2 Identifying Parts 2. Using FRTX400H-QJ 2.1 Installing a Host Bus Adapter (HBA) 2.2 Jumper Configuration for 3.5-inch IDE/PATA HDD 2.3 Installing Hard Drives 2.3.1 SATA HDD: 3.5-inch 2.3.2 IDE/PATA HDD: 3.5-inch 2.3.3 SATA HDD: 2.5-inch...

  • Page 3: Pre-Installation Steps

    CRU-WiebeTech 1. Pre-Installation Steps 1.1 FRTX400H-QJ Accessories Check the accessories with your FRTX400H-QJ. Please contact WiebeTech if any parts are missing or damaged. The box should contain the following items: 1.2 Identifying Parts Take a moment to familiarize yourself with the parts of the FRTX400H-QJ. This will help you to better understand the remaining instructions.

  • Page 4: Using Frtx400H-Qj

    FireWire or eSATA ports, or if you would rather use USB, you can skip this step. Compatible cards are available from WiebeTech (www.wiebetech.com). The following general steps will work for most cards. Instructions for individual cards may vary, so consult your card’s user manual.

  • Page 5: Ide/Pata Hdd: 3.5-Inch

    CRU-WiebeTech 2.3.1 IDE/PATA HDD: 3.5-inch For IDE/PATA drives, pull gently on the handle to slide the tray out. If the tray doesn’t slide out easily, do not continue to pull on the handle. Check the lock and make sure that the tray is unlocked.

  • Page 6: Sata Hdd: 2.5-Inch

    CRU-WiebeTech 2.3.3 SATA HDD: 2.5-inch Open up one of the SATA bays. Slide the 3.5-inch to 2.5-inch converter in with the SATA connection towards the back and the black grilled top facing up as the picture below shows. Place the 2.5-inch SATA HDD into the drive slot located on the front of the 3.5-inch to 2.5-inch converter.

  • Page 7: Frtx400H-Qj Host Connections

    CRU-WiebeTech 2.4 FRTX400H-QJ Host Connections Connect the eSATA, FireWire or USB cable from your computer into the port on the FRTX400H-QJ. eSATA 2.5 Connecting FRTX400H-QJ to your Computer Plug in the data cables and power cord. The FRTX400H-QJ connects to your computer through FireWire, eSATA or USB.

  • Page 8: Usage With Windows Operating System

    It could be a background application like Sherlock or the Finder. This is not a defect or issue caused by the WiebeTech device. Try invoking the Force Quit feature in OS X to see what software may be running. For Windows XP, the equivalent command is CTRL-SHIFT-ESC.

  • Page 9: Technical Specifications

    © 2008 CRU-DataPort. All rights reserved. If you have any questions or problems, please contact interested in purchasing more WiebeTech products, check our website or contact sales@wiebetech.com. appreciate being able to serve you! F R T X 4 0 0 H - Q J U s e r ’ s M a n u a l...
