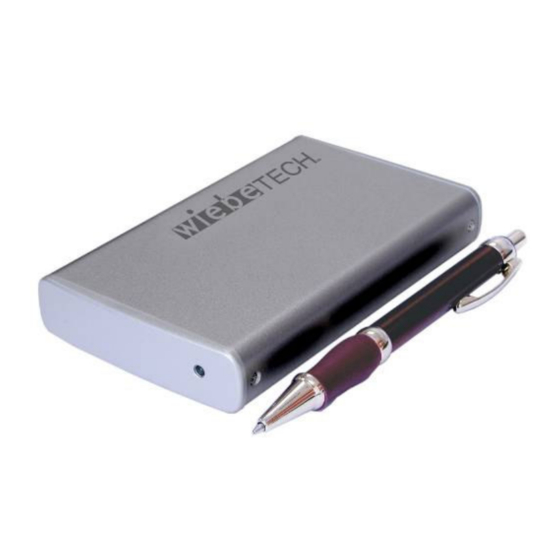

ToughTech™ mini
USB 2.0). ToughTech XE mini offers three different connection types (Dual FireWire 800, eSATA, and
USB 2.0). Cables for each type are included. TTXEM comes with a converter cable for FireWire 400.
Easy to Use – ToughTech is used by anyone who needs more storage space for backups, music,
games, Internet downloads, photography, audio/video editing or server storage; and they use it
everywhere from homes to government labs.
Shock absorbers for your hard drive – Your car has shock absorbers, so why not your hard drive? The
ToughTech mini series introduces ToughMount™ Anti-Shock Protection. ToughMount strips are mounted
between the drive and the enclosure protecting your data against shock and reducing enclosure noise.
Cool and quiet – ToughTech has an all aluminum design meant to draw heat away from the hard drive.
The entire product acts like a heat dissipater, helping to keep your drive cool. And because it doesn't
need a fan, ToughTech is quiet.
More portable than ever – Not much bigger than a pack of playing cards, ToughTech mini will easily
travel with you. It fits easily in a shirt pocket or briefcase. You don't even need to use an AC adapter
when connecting to a powered FireWire host (although a world-compatible AC adapter is included).
Table of Contents
Before Installation
Box contents
Identifying parts of the unit
Warning notices
Drive Installation Instructions
Connecting to a computer
Usage with Macs
T o u g h T e c h U s e r M a n u a l
USER'S MANUAL
Includes ToughTech XE mini and ToughTech FS mini
(Revised January 16, 2008)
Features
Fast speed – ToughTech mini series uses fast SATA
drives and Oxford 924 (TTXEM) and Oxford 934 (TTFSM)
chipsets to maximize data speeds. Data transfers up to
800 Mbps through FireWire.
Widely Compatible – These ToughTech minis work right
out of the box with no new drivers needed. They work with
any modern operating system including Mac OS X,
Windows XP, Windows Vista and most Linux distributions.
Easy to connect – ToughTech FS mini offers three
different connection types (Dual FireWire 400, eSATA, and
2
2
2
2
3
6
7
- 1 -
Advertisement
Table of Contents
Related Manuals for WiebeTech ToughTech FS Mini 500GB
Summary of Contents for WiebeTech ToughTech FS Mini 500GB
- Page 1 USB 2.0). Cables for each type are included. TTXEM comes with a converter cable for FireWire 400. Easy to Use – ToughTech is used by anyone who needs more storage space for backups, music, games, Internet downloads, photography, audio/video editing or server storage; and they use it everywhere from homes to government labs.
-
Page 2: Before Installation
WiebeTech LLC Usage with Windows Computers Technical Specifications Before Installation Check the accessories with your ToughTech mini. Please contact WiebeTech if any items are missing or damaged. The box should contain: ToughTech FS mini ToughTech mini enclosure eSATA cable FireWire 400 cable... - Page 3 WiebeTech LLC Ensure that only a 9.5mm high 2.5” SATA hard drive is used in the enclosure. The ToughTech • mini will not function if an older model drive with a different thickness is used. Additionally the enclosure and other equipment may be damaged.
-
Page 4: Hard Drive Installation
WiebeTech LLC Hard Drive Installation These instructions are only necessary if you’re installing your own hard drive inside the ToughTech mini. If you purchased the product with a hard drive pre-installed, you may skip to the next section (Connecting the ToughTech to a Computer). - Page 5 WiebeTech LLC You are now ready to install your 2.5” SATA drive. Line up the drive’s interface with the SATA interface on the circuit board. You may need to angle the drive as you push it into place. After connecting the drive to the SATA interface on the circuit board, the drive should lay flat on the board.
- Page 6 WiebeTech LLC Slide the drive tray back into the enclosure. Make sure the LED indicator is properly aligned with opening on the front of the enclosure. Reassemble the enclosure by replacing the screws removed in step 1. The ToughTech mini is now assembled and ready for connection to a computer.
- Page 7 WiebeTech LLC Connecting the ToughTech to a Computer Connect the AC/DC power adapter. This step is only needed when connecting via USB or to an unpowered FireWire host. Plug the other end of the USB or FireWire cable to an available port on the computer.
-
Page 8: Usage With Macintosh Computers
WiebeTech LLC Usage with Macintosh Computers Compatibility The ToughTech is fully plug-and-play under Mac OS X. No drivers are needed. The USB2 port is USB 1.1 compatible. ToughTech mini uses SATA (Serial ATA) hard drives only. Mounting and Unmounting Volumes If the hard drive installed in the ToughTech is already formatted, an icon representing the drive’s... -
Page 9: Technical Specifications
Support is standing by and ready to help. We offer 90 days of free phone support at 1- 866-744-8722. After 90 days, email support is available at support@wiebetech.com. ToughTech and ToughMount Anti-Shock Protection are trademarks of WiebeTech LLC. Other marks are the property of their respective owners.
