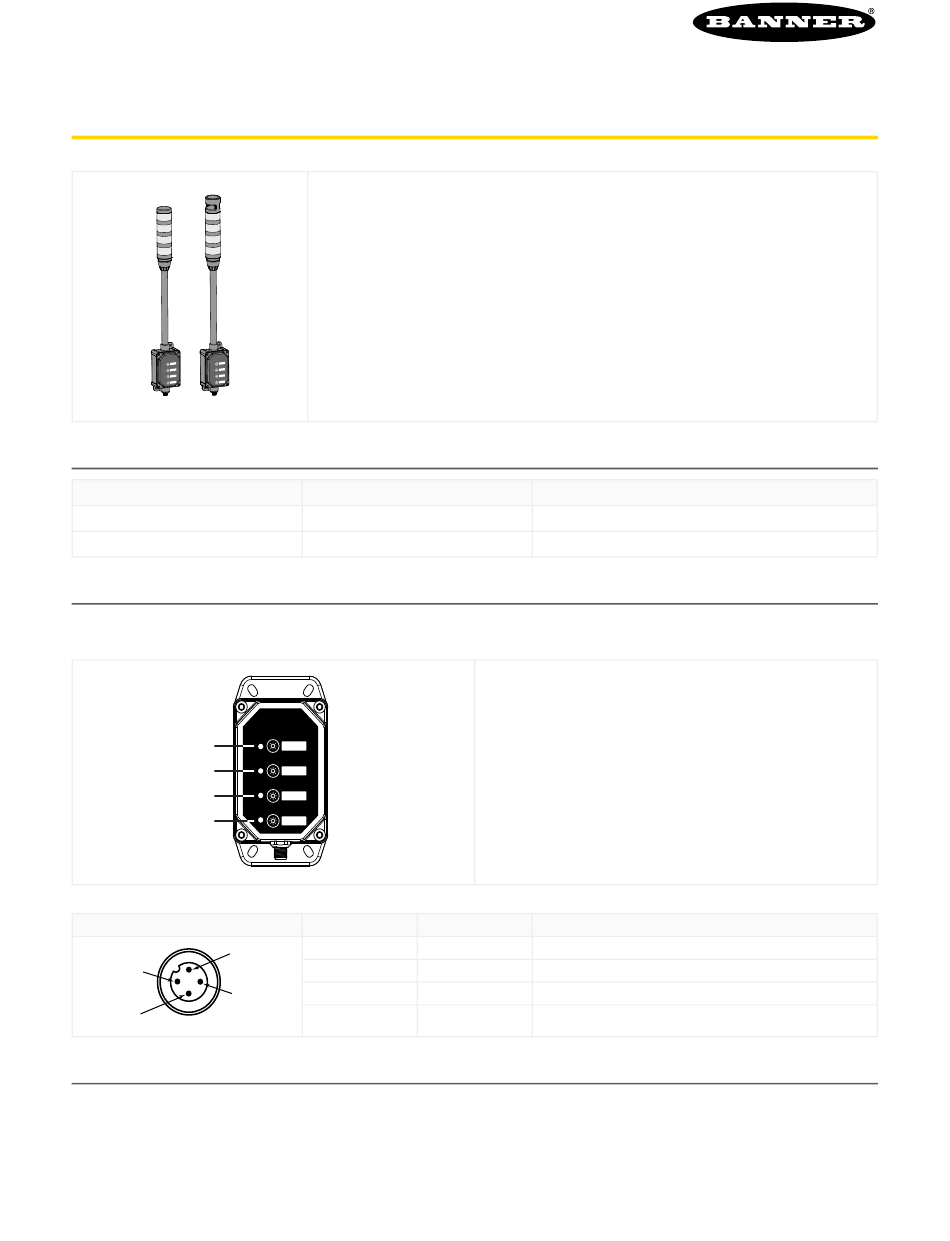

Banner TL50 Instruction Manual

TL50 Basic Wireless Andon Tower Light
Instruction Manual
Features
Multi-Color and Audible Andon Indicators
Models
Model
LCA130T4DXN2-TL50BGYR300Q
LCA130T4DXN9-TL50BGYR300Q
TL50-LCA130T Switch Diagrams
The control box status LED mimics the tower light status in color and animation.
Tap one of the buttons to turn the corresponding status LED on or off. Hold the button to activate the flashing function.
4
3
2
1
Input Pinout - All Models
4-Pin M12 Male Connector
1
2
4
3
Configuration Instructions
LCA130T DIP Switches
Before applying power to the device, set the radio's DIP switches.
Original Instructions
December 19, 2023
• Rugged, cost-effective, and easy-to-install Andon indicators
• Illuminated tower light segments and Andon box indicators provide easy-to-see status
• Four available colors: blue, green, yellow, and red
• Integral four capacitive touch button controller with status LEDs
• Steady or flashing status capability
• 300 mm pre-assembled stand-off pipe length
• Two wireless ISM radio options: 900 MHz and 2.4 GHz
LCA130T Controller Radio Frequency
2.4 GHz
900 MHz
LED Key:
Pin Wire Color
1 Brown (bn)
2 White (wh)
3 Blue (bu)
4 Black (bk)
© Banner Engineering Corp.
Tower Light Description
TL50 Basic Andon Tower Light (Blue, Green, Yellow, Red)
TL50 Basic Andon Tower Light (Blue, Green, Yellow, Red)
1 = Blue
2 = Green
3 = Yellow
4 = Red
Wiring Description
18 V DC to 30 V DC
Use to configure with the Pro Editor Configuration software
DC common (GND)
Not Used
p/n: 237795 Rev. A
