DeVilbiss HAF-505 Service Bulletin

SERVICE BULLETIN
SB-6-152-C
Replaces SB-6-152-B
The Right Way To Finish~
HAF-SOS
SPECIFICATIONS
Air Filter:
Air Inlet 1/2" NPT(F)
Air Outlet 1/2"NPT(F)
Air Flow Capacity 55 CFM
Maximum Inlet Pressure 150PSIG(10.3Bar)
Maximum Operating Pressure 150PSIG (10.3 Bar)
Maximum Temperature 150°F(65.6°C)
Filter 0.01 Micron
3
Risk of personal injury.
Risk of property damage.
Except as otherwise specified by the
manufacturer, this product is specifi-
cally designed for compressed air ser-
vice and use with any other fluid (liquid
or gas) is a misapplication. For ex-
ample, use with or injection of certain
hazardous gases in the system (such as
oxygen or liquid petroleum gas) could
be harmful to the unit or result in a
combustible condition that may cause
fire or exploSion. Manufacturer's war-
ranties are void in the event of misappli-
cation and manufacturer assumes no
responsibility for any resulting loSS.
INSTALLATION

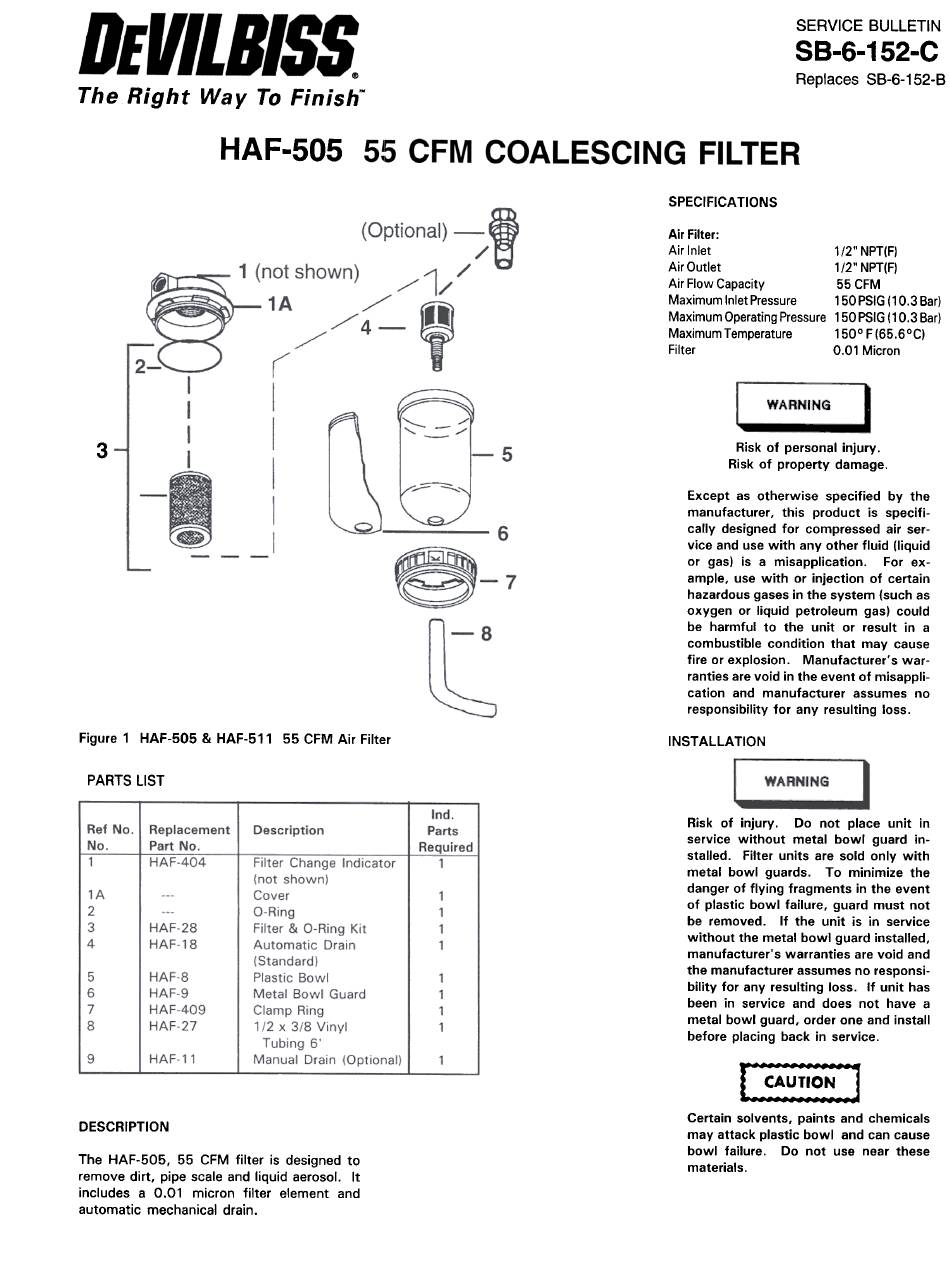

Figure 1 HAF-505 & HAF-511 55 CFM Air Filter
PARTS LIST
Risk of injury. Do not place unit in
service without metal bowl guard in-
stalled. Filter units are sold only with
metal bowl guards. To minimize the
danger of flying fragments in the event
of plastic bowl failure, guard must not
be removed. If the unit is in service
without the metal bowl guard installed,
manufacturer's warranties are void and
the manufacturer assumes no responsi-
bility for any resulting loss. If unit has
been in service and does not have a
metal bowl guard, order one and install
before placing back in service.
[~
Certain solvents, paints and chemicals
may attack plastic bowl and can cause
bowl failure. Do not use near these
materials.
DESCRIPTIDN
The HAF-505, 55 CFM filter is designed to
remove dirt, pipe scale and liquid aerosol. It
includes a 0.01 micron filter element and
automatic mechanical drain.
