GENERAL OPERATING INSTRUCTIONS

the unit has a HOT and powerful output ! Keep a minimum distance of 1m .
1.Put the fog bubble machine on a flat and very stable surface. Make sure that nobody can
put their hands just in front of the output. The fog is very hot and can cause serious burn-
ing!!!
2.Make sure the fog & bubble liquid tank is not empty. Always use good quality fog liquid
to fill up the tank. Close the tank immediately to prevent dirt to enter the reservoir!
3.Make sure to plug the fogger in a mains wall socket with earth connection.
4.Switch the fog bubble machine on and wait for about 3 to 4 minutes.(warm up time).
NEVER use the machine with an empty reservoir. This can damage the pump !
DMX-OPERATION:
Important: The electrical installation should be carried out by qualified personal
only, according to the regulations for electrical and mechanical safety in your coun-
try.
Electrical installation:
1.The DMX-protocol is a widely used high speed signal to control intelligent light and other
equipment. You need to "daisy chain" your DMX controller and all the connected units
with a good quality balanced cable.
2.Both XLR-3pin and XLR-5pin connectors are used, however XLR-3pin is more popular
because these cables are compatible with balanced audio cables.
Pin layout XLR-3pin: Pin1=GND~Pin2=Negative signal (-)~Pin3 = Positive signal (+)
Pin layout XLR-5pin: Pin1=GND~Pin2=Negative signal (-)~Pin3=Positive signal (+) ~
Pins4+5 not used.

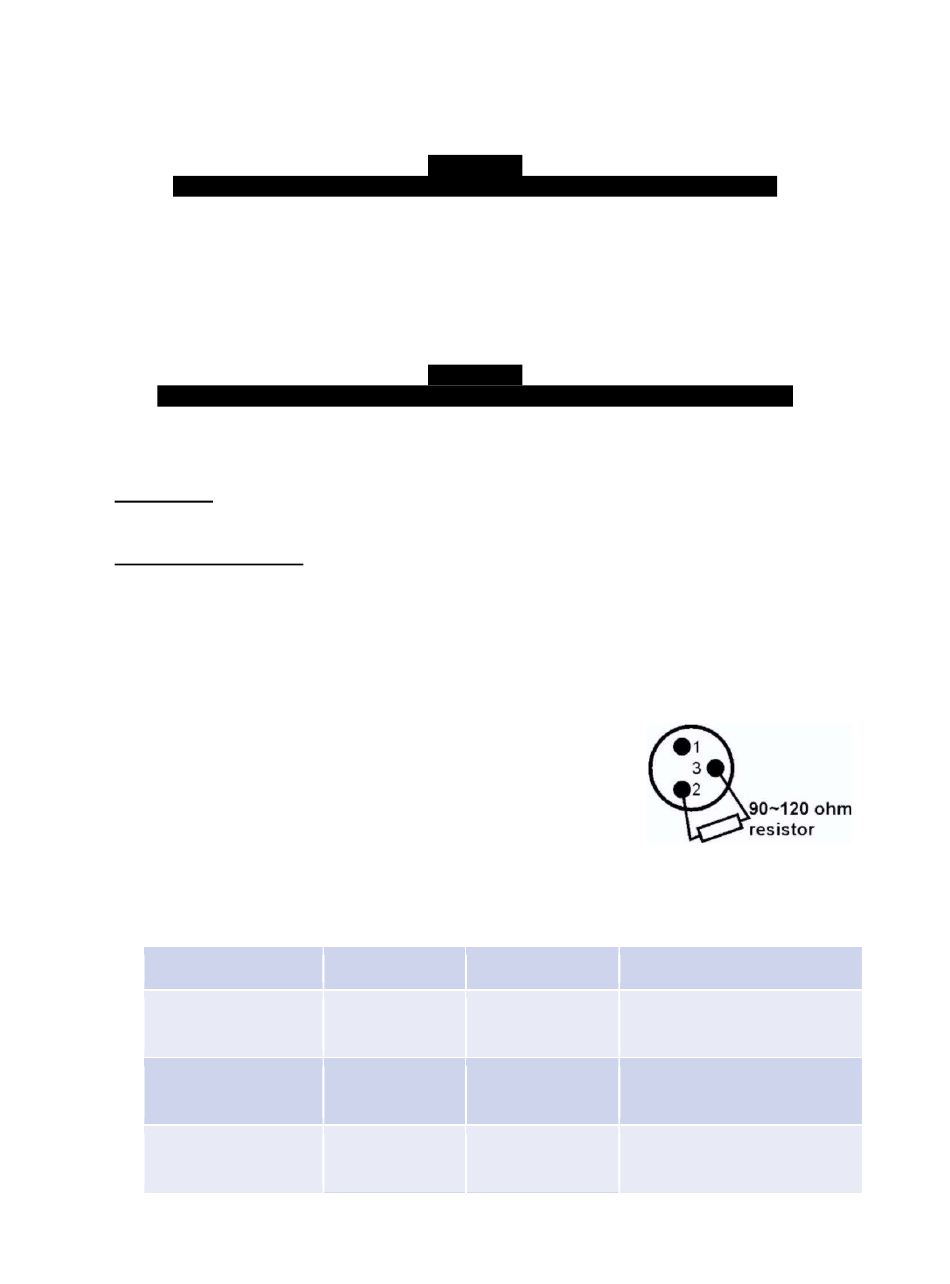

3.To prevent strange behavior of the light effects, due to interfer-
ence, you must use a90Ω to 120Ω terminator at the end of the
chain. Never use Y-splitter cables, this simply won't work!
4.Make sure that all units are connected to the mains.
5.Each unit in the chain needs to have its proper starting address
so it knows which
commands from the controller it has to decode. In the next section you will learn how to
set the DMX addresses.

DMX Channel detail:

Channel
1
2
3
WARNING:
WARNING:
Value Function
000-255 Haze output
000-255 Bubble output
000-255 Fan speed
Remark
000-005: OFF
006-255: 1%-100%
000-005: OFF
006-255: ON
000-005: OFF
006-255: 1%-100%
