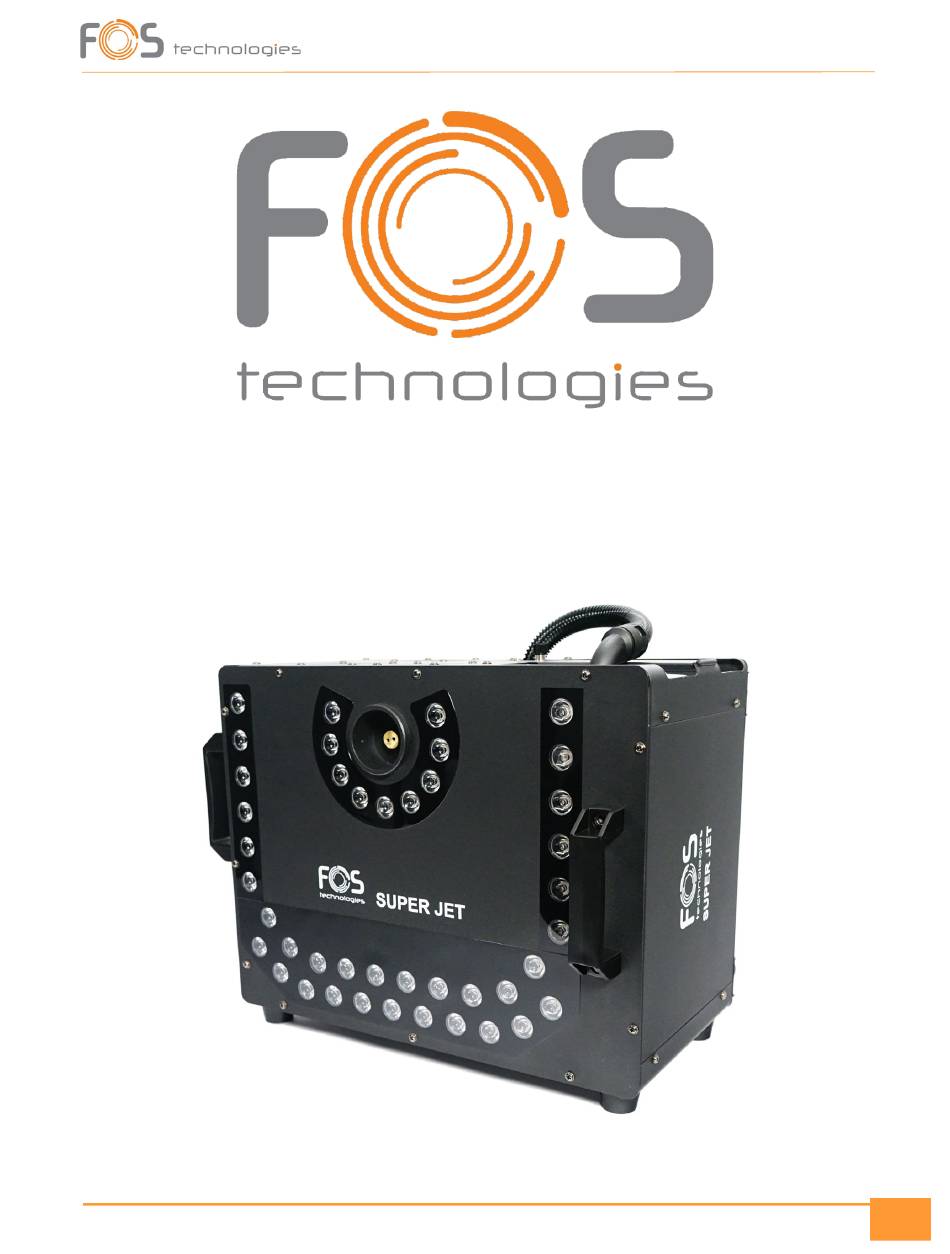

- Page 1 FOS Super Jet...
- Page 2 PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 220/240 Volt AC, 50/60 Hz. Power Consumption: 1500 Watt. Heating element: 3100 Watt Light Source: Section A: 9x 9Watt tricolor LEDs & section B: 33x 9Watt tricolor LEDs. Control: Wireless remote, DMX DMX Channels: 6, 9 Heat-up time: 9 minutes.
- Page 3 • Make sure the power cord is not crimped or damaged. If it is damaged, ask your dealer or authorized agent to replace the power cord. • Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power cord by the plug.
- Page 4 • The fog machine isn’t waterproof. If moisture or fog liquid enters inside the machine, you must unplug it immediately from the mains and contact your dealer. • It’s forbidden to spray directly towards persons. Keep far away from flammability and explosive objects.
- Page 5 Event equipment is designed for temporary use. This are typical purpose as concerts, festivals, theatre, clubs and disco use and referable venues. Long-term use, specially under outdoor conditions and fixed outdoor installation can bring damage in aging materials and affect the coated surface. Sealings as well as cables are made from rubber material and will age by long-term UV-emission as sunlight and should be checked frequently.
- Page 6 Addr: Press ENTER to choose between 6 or 9 control channels. Confirm with ENTER and set the DMX address. reno: Set the channel mode for use with the supplied remote control (1 to 8). While pressing ENTER to confirm the channel of your choice, you can select your desired color or program: •...
- Page 7 • 121 – 155 Cyan 156 – 190 Blue • • 191 – 225 Magenta 226 – 255 White • ** Color output is activated temporary when you adjust the values and after few seconds, goes off. It’s been activated again, together with the smoke output. 6.
- Page 8 Wireless Control Wireless remote has 8 buttons. You can choose a color for each remote button, via smoke machines menu. Battery replacement If the range of the remote-control decrease, the battery is probably exhausted and must be replaced. For this purpose, take off the housing cover and remove the used battery. Insert a fresh 12V battery, type 23A as indicated in the battery compartment and refit the housing cover.
