FOS Technologies SUPER JET User Manual

Massive vertical co2 fogger
Hide thumbs Also See for SUPER JET:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUPER JET and is the answer not in the manual?

Questions and answers

Related Manuals for FOS Technologies SUPER JET

Summary of Contents for FOS Technologies SUPER JET

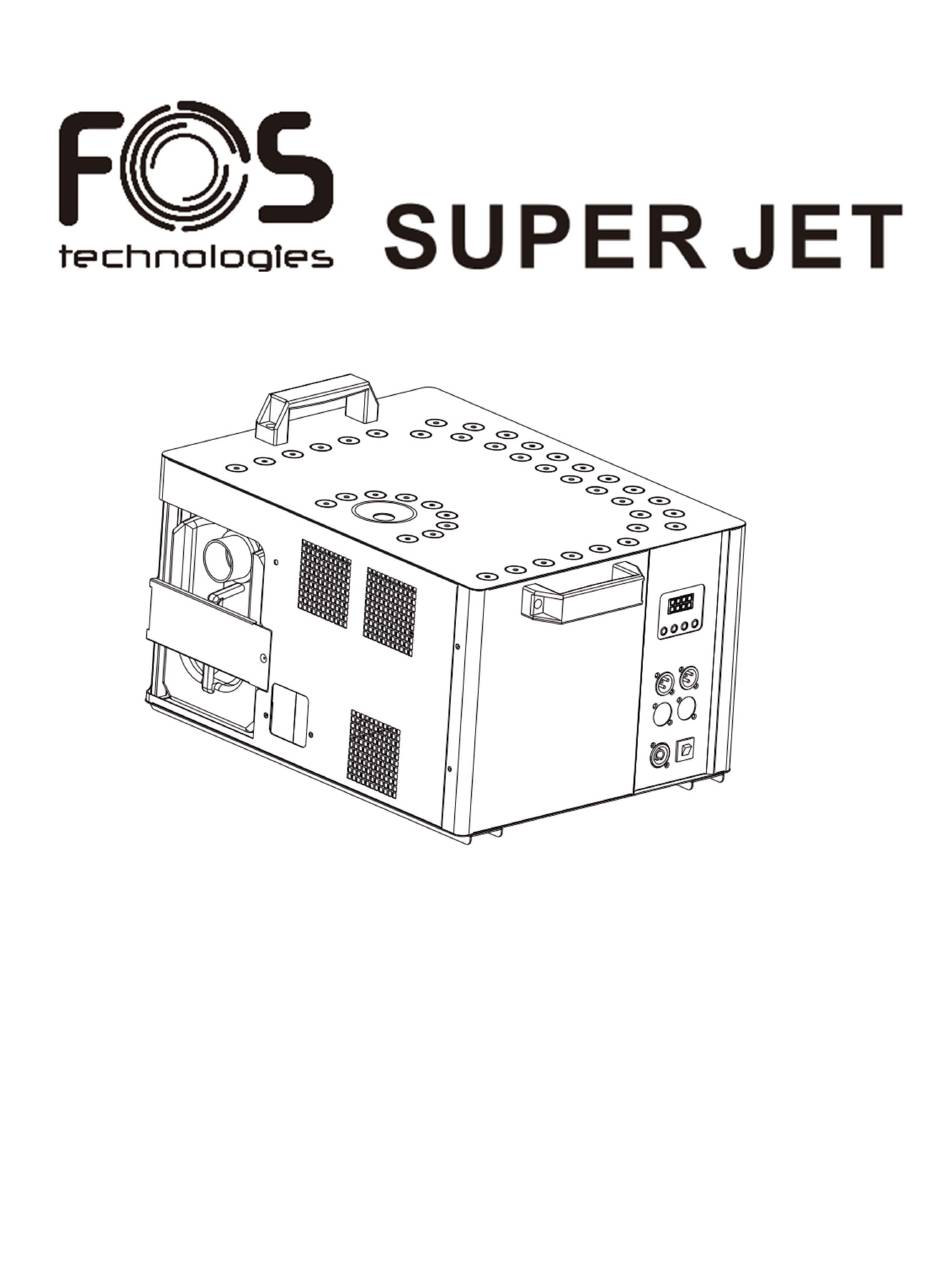

  • Page 1 USER MANUAL...

  • Page 2: Before Use

    Check the contents: Check if the carton contains the following items: ●Operating instructions ●Super Jet ●Power cable SAFETY INSTRUCTIONS: 1. To reduce the risk of electric shock, do not remove the top cover. 2. RISK OF ELECTRIC SHOCK, DO NOT OPEN.
  • Page 3 4. This symbol means:Read instructions. 5. The minimum distance from objects. The minimum distance between fogger output and objects must be more than 1 meter. 6. To protect the environment, please try to recycle the packing material as much as possible.

  • Page 4: Control Panel

    DESCRIPTION: 1. NOZZLE: High pressure fog output. WARNNING: HOT powerful output! Keep a minimum distance of 1m. 2. FOG FLUID RESERVIOR: to be filled with CE-certified smoke fluid. Make sure that the fog fluid container is never empty during operation; this will damage the pump of the fogger.

  • Page 5: Fluid Sensor

    DMX512 ADDRESS Used to set the start address when the unit in used in a DMX chain. Press the MENU button until DMX512 ADDRESS is shown on the display. Use the DOWN and UP buttons to change the DMX address. Once the correct address is shown on the display, press the ENTER button to confirm.

  • Page 6: Dmx Operation

    HALF POWER MODE lf for any reason, you don't need to use the full potential of the unit, HALF POWER MODE can be switched on. When OFF, the heater will work at FULL POWER(3200W) and reheating is fast. When ON, the heater will work at HALF POWER (1600W) but reheating will also be slower.
  • Page 7 6 Channel mode: Value Function Details CH 1 016-255 Fog output CH 2 001-255 Red color LED group 1 CH 3 001-255 Green color (LED around Nozzle) CH 4 001-255 Blue color 016-050 Red color 051-085 Red + Green color 086-120 Green color LED group 2...

  • Page 8: Overhead Rigging

    If you want to hang the FOS Super JET upside-down to create downward fog jets, you have to modify the position of the reservoir. The cap of the reservoir should always be on top of the unit 1.
  • Page 9 MAINTENANCE Switch off the unit, unplug the mains cable and wait until the unit has been cooled down. During inspection the following points should be checked: 1. All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
