Summary of Contents for FOS Technologies Bubble FOG

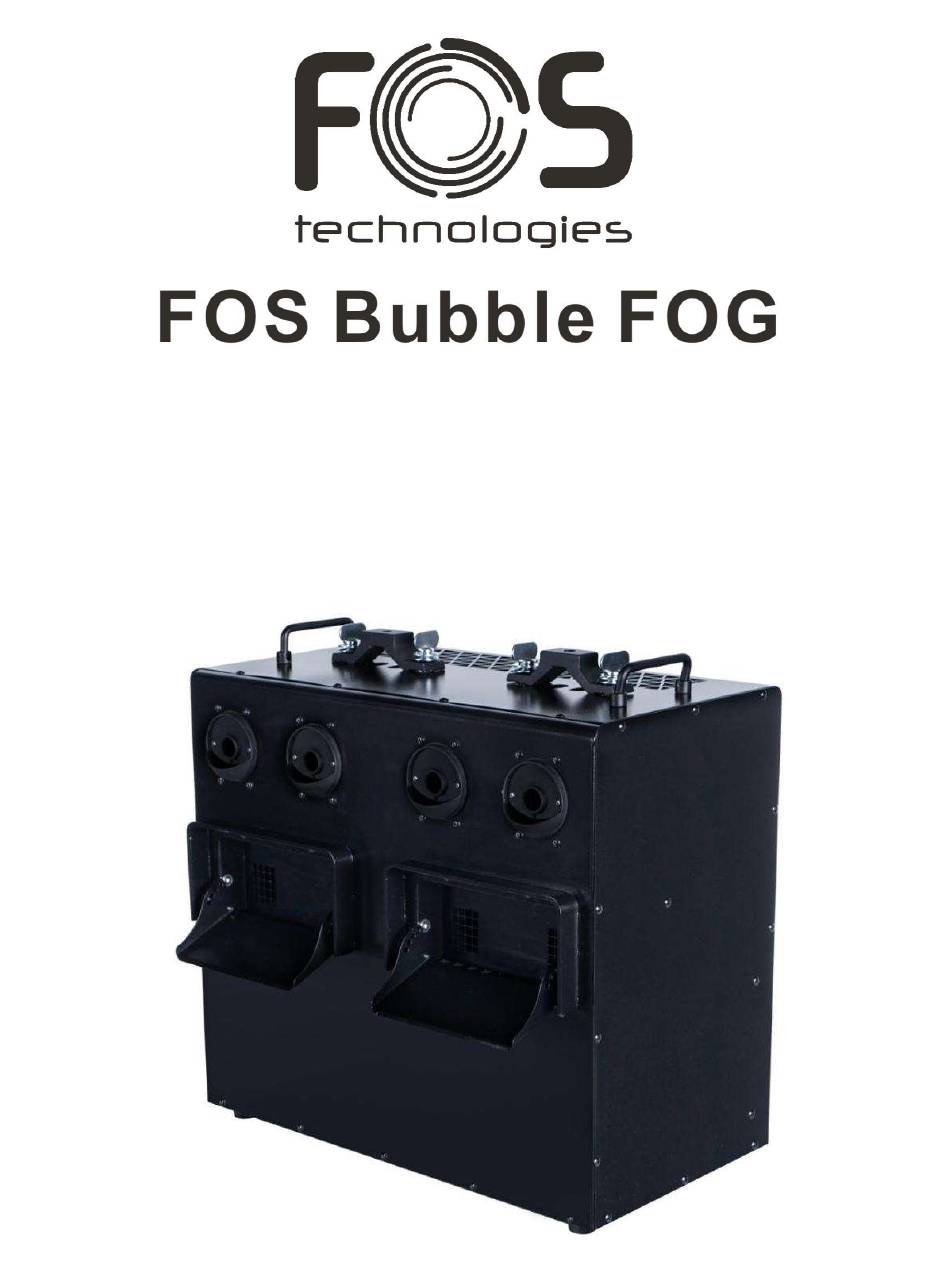

- Page 1 USER MANUAL...
- Page 2 Check the contents: Check if the carton contains the following items: 1. Operating instructions. 2. FOS Bubble fog. 3. Power cable. 4. Wireless remote. SAFETY INSTRUCTIONS: 1.To reduce the risk of electric shock, do not remove the top cover.
- Page 3 15.Maximum save ambient temperature is 40°C. Don't use this unit at higher ambient tem- peratures. 16.The units' surface temperature may reach up to 85°C. Don't touch the housing with bare hands during its operation. 17.Make sure to always place the unit on a stable surface, never install the fogger above the audience, a little liquid can always drip from the fog output.
- Page 4 1.NOZZLE: Fog and bubble output nozzle.. WARNNING: HOT powerful output! Keep a minimum distance of 1m. 2.FOG FLUID RESERVOIR: to be filled with CE-certified smoke fluid. Make sure that the fog fluid container is never empty during operation; this will damage the pump of the fog- ger.
- Page 5 GENERAL OPERATING INSTRUCTIONS WARNING: the unit has a HOT and powerful output ! Keep a minimum distance of 1m . 1.Put the fog bubble machine on a flat and very stable surface. Make sure that nobody can put their hands just in front of the output. The fog is very hot and can cause serious burn- ing!!! 2.Make sure the fog &...
- Page 6 000-005: OFF 000-255 Clean mode 006-255: ON Wireless remote control: Please disconnect dmx cable before using the wireless remote. Wireless remote, Button A: start working. Wireless remote, Button B: stop working. IMPORTANT: 1. DO NOT mix bubble fluid with fog fluid. 2.
- Page 7 Max. Power Consumption: 1000 Watt DMX Channels: 4 Breaker: 10A/250V Warm up time: 4 min Tank capacity: 2.5L fog fluid tank, 2x5L bubble fog tank Machine dimension: 535 x 290 x530 mm Packing dimension: 600 x 460 x 620 mm Net weight: 22 kg Gross weight: 23.5kg...
