Summary of Contents for Detecto VET75

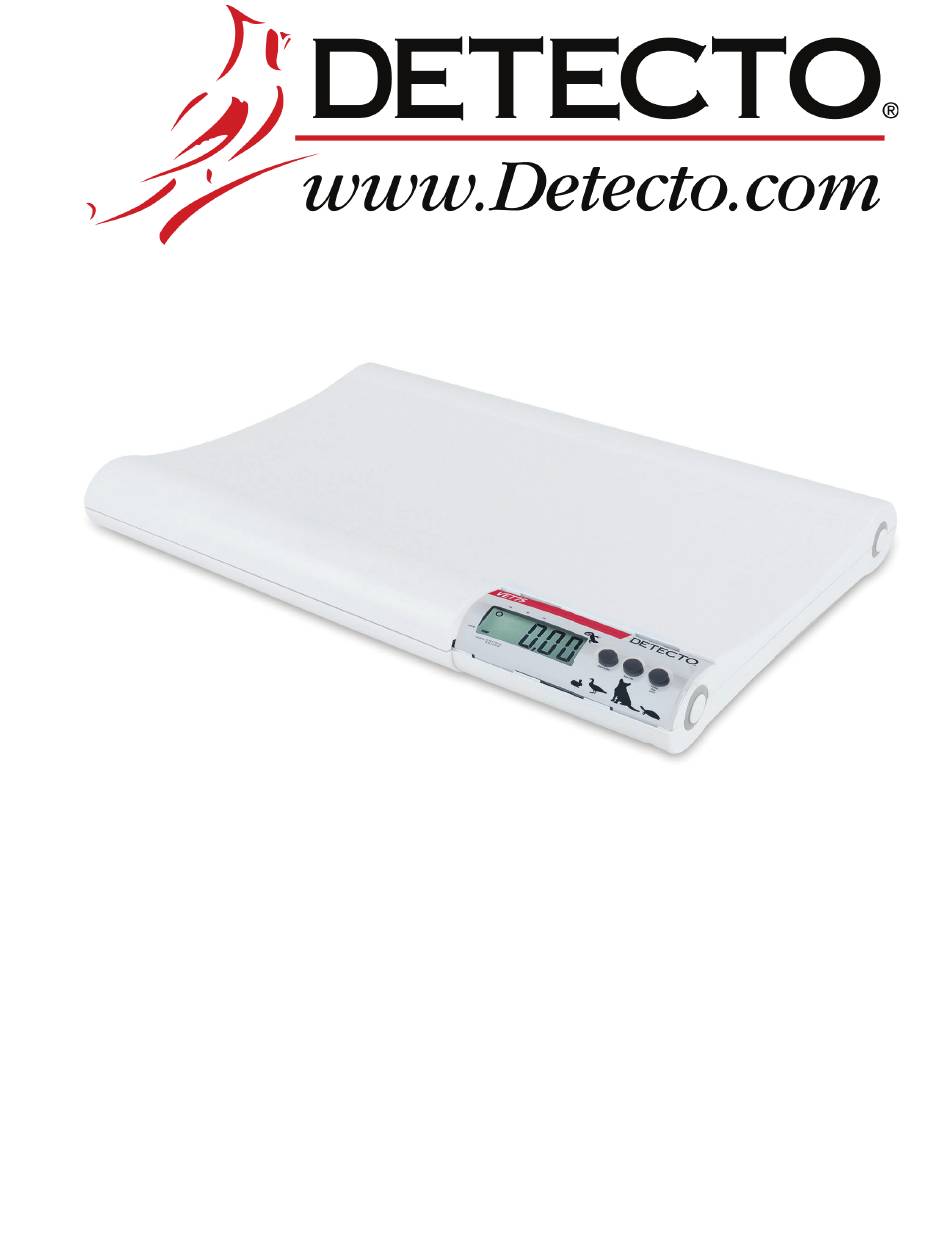

- Page 1 VET75 DIGITAL VETERINARY SCALE Owner’s Manual 1961-0397-0M VET75 Owner’s Manual...
- Page 2 1961-0397-0M VET75 Owner’s Manual...
- Page 3 Seller is not able to guarantee the result of any procedure contained herein. Nor can they assume responsibility for any damage to property or injury to persons occasioned from the procedures. Persons engaging in the procedures do so entirely at their own risk. 8535-0250-0M VET75 Owner’s Manual...
- Page 4 8535-0250-0M VET75 Owner’s Manual...
-
Page 5: Table Of Contents
Serial Number _____________________ Before using this instrument, read this Date of Purchase ___________________ manual and pay special attention to all "WARNING" symbols: Purchased Form ___________________ __________________________________ IMPORTANT ELECTRICAL __________________________________ WARNING RETAIN THIS INFORMATION FOR FUTURE USE 8535-0250-0M VET75 Owner’s Manual... - Page 6 8535-0250-0M VET75 Owner’s Manual...
-
Page 7: Introduction
INTRODUCTION Thank you for purchasing our Detecto Model VET75 Digital Veterinary Scale. The VET75 comes complete with a one-piece platform and base. This manual will guide you through the setup and operation of your scale. Please read it thoroughly before attempting to operate this scale and make it available for future reference. -
Page 8: Scale Setup
SCALE SETUP The VET75 Digital Veterinary Scale can be used in a fixed location with a 9V DC 300 mA AC power adapter (not included) or as a portable scale with a 9V battery (not included). AC Power Adapter To apply power to the VET75 using the 100 to... -
Page 9: Keys And Functions
(14 oz or 400 g), otherwise, pressing the TARE/ON/OFF key will zero the weight display. 2. The TARE Function can tare weight up to 2% of the scale capacity. 3. The arrow at the bottom left of the display will flash to show the TARE function is active. 8535-0250-0M VET75 Owner’s Manual... -
Page 10: Display Annunciators
4 Bars = 100% the 9V battery is installed. The number of bars 3 Bars = 75% indicates the level of charge remaining in the 2 Bars = 50% battery. 1 Bar = 25% No Bars = Low Battery 8535-0250-0M VET75 Owner’s Manual... -
Page 11: Operation
5. Remove the animal from the scale and then press the TARE/ON/OFF key to exit the Hold function. Turn the Scale Off Press and hold the TARE/ON/OFF key for 3 seconds to turn the scale off. 8535-0250-0M VET75 Owner’s Manual... -
Page 12: Configuration
CONFIGURATION The VET75 Digital Veterinary Scale has been pre-configured at the factory and should not require changes to use in most applications. If the factory settings do not meet the requirements of your application, the following describes the steps to change the configuration of the scale. -
Page 13: Display Messages
CARE AND MAINTENANCE The heart of the VET75 Digital Veterinary Scale is four precision load cells located in each corner of the scale base. It will provide accurate operation indefinitely if protected against overload of scale capacity, dropping items on the scale, or other extreme shocks. -
Page 14: Calibration Procedure
This scale was calibrated at the factory and should not require adjustment. In the event the scale should need recalibration, the following describes the calibration of the VET75 Digital Veterinary Scale. A qualified technician should perform this function to maintain the instrument's high degree of accuracy. - Page 15 (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
- Page 16 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 8535-0250-0M Rev A 09/23 E-mail: tech@cardet.com 8535-0250-0M VET75 Owner’s Manual...
