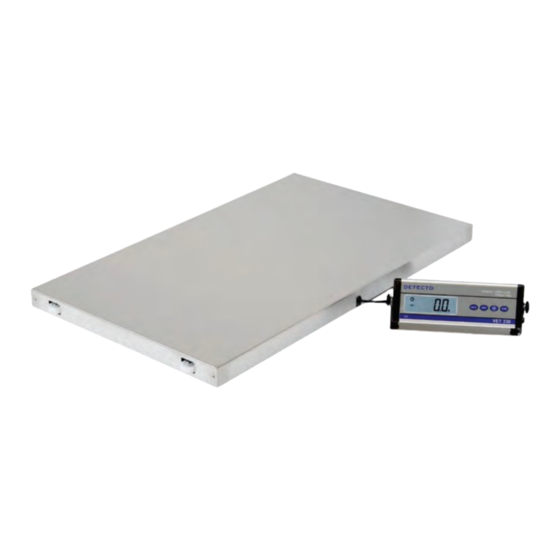

- Page 1 MODEL VET-330WH Digital Veterinary and General Purpose Scale Owner’s Manual...
- Page 3 For this reason, the Seller is not able to guarantee the result of any procedure contained herein. Nor can they assume responsibility for any damage to property or injury to persons occasioned from the procedures. Persons engaging in the procedures do so entirely at their own risk. 1961-M045-O1 Rev B VET-330WH Owner’s Manual...
- Page 4 1961-M045-O1 Rev B VET-330WH Owner’s Manual...
-
Page 5: Table Of Contents
Serial Number _____________________ Before using this instrument, read this Date of Purchase ___________________ manual and pay special attention to all "WARNING" symbols: Purchased Form ___________________ __________________________________ IMPORTANT ELECTRICAL __________________________________ WARNING RETAIN THIS INFORMATION FOR FUTURE USE 1961-M045-O1 Rev B VET-330WH Owner’s Manual... -
Page 7: Introduction
INTRODUCTION Thank you for purchasing our Detecto Model VET-330WH Digital Veterinary and General Purpose Scale. The VET-330WH is equipped with a rechargeable battery pack that (after 14 hours of charging) can provide approximately 8 hours of continuous use. This manual will guide you through the setup and operation of your scale. Please read it thoroughly before attempting to operate this scale and keep it available for future reference. -
Page 8: Setup And Installation
2. For best results, place the scale on a flat level surface and adjust the leveling feet to ensure the scale is sitting level. 3. The scale is now ready for use. Leveling Feet 1961-M045-O1 Rev B VET-330WH Owner’s Manual... -
Page 9: Transporting The Scale
SETUP AND INSTALLATION, CONT. Transporting the Scale The VET-330WH has built-in wheels and an integral carrying handle for easy transportation of the scale to a new location. Follow the instructions below to safely lower and raise the scale to and from the floor when relocating the scale. -
Page 10: Placing The Display
SETUP AND INSTALLATION, CONT. Placing the Display The VET-330WH display has a 7.0 ft (2.1 m) cable to allow it to be placed at a convenient position away from the scale base. The included bracket can be used to mount the display on a wall or it can be used to place it on a desk or table for easy viewing. -
Page 11: Desk Mounting
AC power adapter must be connected for approximately 14 hours. Note that the VET-330WH can still be operated while the battery pack is charging. Also, note that charging the battery pack for more than 14 hours will not damage it. -
Page 12: Display Symbols
TARE key will also turn off the Hold function. This symbol is turned on to indicate that the displayed weight is in kilograms. This symbol is turned on to indicate that the displayed weight is in pounds. 1961-M045-O1 Rev B VET-330WH Owner’s Manual... -
Page 13: Key Functions
3. Press and hold this key for three (3) seconds to enter the Configuration mode. DO NOT operate the keypad with pointed objects (pencils, pens, etc.). Damage to the keypad resulting from this practice is NOT covered under the warranty. 1961-M045-O1 Rev B VET-330WH Owner’s Manual... -
Page 14: Operation
The weight on the display will be held until the HOLD key is pressed again or the TARE key is pressed to turn off the Hold function. Turn the Scale Off With the scale turned on, press the ON/ZERO/OFF key to turn the scale off. 1961-M045-O1 Rev B VET-330WH Owner’s Manual... -
Page 15: Configuration
CONFIGURATION The VET-330WH scale has been pre-configured at the factory and should not require changes to use in most applications. If the factory settings do not meet the requirements of your application, the following describes the steps to change the configuration of the scale. -
Page 16: Gravity Compensation
6. The setup is complete. GRAVITY COMPENSATION The Gravity Compensation for your VET-330WH scale has been pre-configured at the factory and should not require changing in most locations. If the factory settings do not meet the requirements of your location, contact the factory for the value for your location. -
Page 17: Display Message
DISPLAY MESSAGES The VET-330WH scale is equipped with software that tests various portions of the scale's circuitry and verifies proper operation. Should a problem be detected, a message will be displayed alerting the operator to that condition. The following lists the messages displayed... - Page 18 (2) years from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
- Page 19 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
- Page 20 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 E-mail: tech@cardet.com 1961-M045-O1 Rev B 07/21 1961-M045-O1 Rev B VET-330WH Owner’s Manual...
