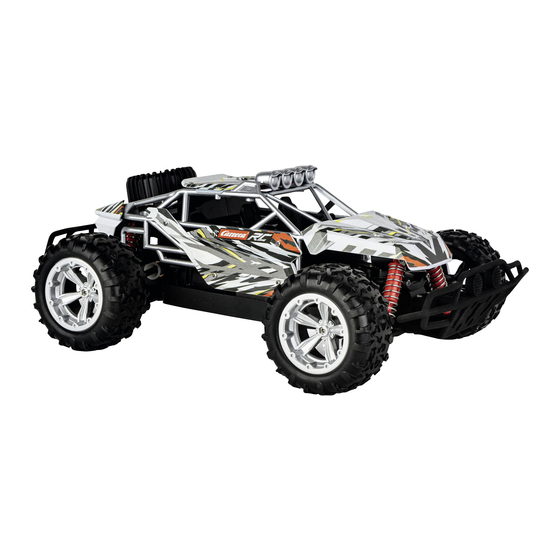

Carrera RC RC Power Passion Impact 2.0 Assembly And Operating Instructions Manual

Οδηγίες συναρμολόγησης και λειτουργίας ·
Dear customer
Congratulations on purchasing a Carrera RC model car, manufactured in accordance with the latest technology. As
it is our constant endeavour to develop and improve our products, we reserve the right to make modifications, either
of a technical nature or with respect to features, materials, and design, at any time, and without prior notice. For this
reason, no claims will be accepted for any slight deviations in your product from the data and illustrations contained
in these instructions. These operating and assembly instructions are an integral part of the product. Important!
Please read this manual carefully and keep these instructions for future reference and in the event that the
product is passed on to a thrid party.
For the latest version of these operating instructions and information on replacement and spare parts
avail able, please visit carrera-rc.com in the service area.
Declaration of conformity
Carrera Toys GmbH hereby declares that this model including the controller conforms with the fundamental require-
ments of the following EC directives: EC Directives 2009/48/EC and the other relevant regulations of Directive
2014/53/EU (RED). The original declaration of conformity can be requested from carrera-rc.com.
Maximum radio-frequency power transmitted <10 dBm · Frequency range: 2400 – 2483.5 MHz
Warning!
Inappropriate use may result in severe injuries and/or damage to property. It has to be operated with care and
caution and requires both mechanical and mental skills. The operating instructions contain notes on safety and
technical regulations as well as information on maintaining and operating the product. It is indispensable to read
these instructions thoroughly before the first usage. Only this helps to avoid accidents with injuries and damage.
WARNING! This toy contains small parts which can be swallowed and is therefore not
suitable for children under 3 years of age.
WARNING! danger of pinching during operation! Remove all packaging materials and
wire fastenings before handing the toy over to the child. Please retain the packaging
and address for information and in the event of any questions.
This symbol, showing refuse bins with a cross through them, denotes that empty
batteries, rechargeable batteries, button cells, rechargeable battery packs, equipment
batteries, disused electrical equipment, etc. should not be disposed of in domestic
refuse, as they are harmful to the environment and health. Do not mix dissimilar bat-
tery types or employ new and used batteries together. Rechargeable batteries are
only to be charged by adults. Empty batteries should be removed from the product. Do not recharge non-
recharge able batteries due to risk of explosion. Rechargeable batteries are to be removed from the toy before
being charged. Batteries are to be inserted with the correct polarity. Supply terminals are not to be short circuited.
Never use damaged batteries. Remove batteries if consumed or if product is to be left unused for a long time.
Always replace the whole set of batteries at one time, taking care not to mix old and new ones, or batteries of
different types.
The appliance is only to be used with the power supply unit provided with the appliance. The use of a different
power supply unit may lead to the permanent damage of the battery and neighbouring parts, as well as
WARNING: For the purposes of recharging the battery, only use the detachable supply
physical injury!
unit provided with this toy. Battery chargers used with the toy are to be regularly examined for damage to
the cord, plug, enclosure and other parts, and in the event of such damage, they must not be used until the
damage has been repaired. The toy is only to be connected to Class II equipment bearing the following
symbol.
or
FCC statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
# 370160147 Passion Impact 2.0
Assembly and operating instructions
ENGLISH
NOTE: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If the product does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures :
• Reorient or relocate the receiving antenna.a
• Increase the separation between the product and receiver.
• Connect the product into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IC statement
The device contain license-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and Eco-
nomic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:
1. The device must not cause interference;
2. The device must accept any interference, including interference that may cause undesired operation of the device.
Safety instructions
Contents of package
Charging the rechargeable battery via computer
tempt to recharge the battery with any other LiFePO
in serious damage.
of rechargeable batteries before proceeding.
USB charger cable from a computer USB port (USB 3.0) or a USB power supply unit with at least 1A output voltage:
• Connect the USB charger cable with the USB port of a computer
• It lasts about 50 minutes to recharge a discharged (NOT a deep-discharged) battery. When the battery is
Always recharge the battery after use to prevent its becoming deep discharged. After use, the battery
Made in China · Fabriqué en Chine
安装和使用说明 ·
Only original Carrera RC LiFePO recharge able batteries may be used. Rechargeable batteries are to
A
4
be removed from the toy before being charged.
The Carrera RC vehicle is designed for hobby use only and may only be operated on tracks and in spaces
B
especially intended for this purpose. WARNING! Do not use the Carrera RC vehicle in road traffic.
Never operate the product on grass surfaces. Do not use the Carrera RC vehicle for transporting goods,
C
persons or animals.
Never use the Carrera RC vehicle outdoors during rain or snowfall. The car must not be run through
D
water, puddles and snow, and must always be kept stored in a dry place.
Avoid running on courses which are laid exclusively with sand.
E
Do not expose the Carrera RC vehicle to direct sunlight.
F
Never subject the Carrera car to repeated changes of load – that means continuously reversing it.
G
Never throw the car on the floor from a standing position.
H
The Carrera RC vehicle must be inspected before and after operation, each time it is used, to ensure
I
that it has not become disassembled. Any screws or nuts that may have become loosened during
operation must be tightened.
1 x Carrera RC Vehicle
1
1 x Controller
1 x USB charger cable
1 x LiFePO rechargeable battery
4
1 x Set of batteries (non-rechargeable)
Rechargeable batteries are to be removed from the toy before being charged. Take care only to charge
2
the LiFePO battery supplied with the LiFePO
4
Please carefully read the previous chapter with warnings and guidelines on the usage
lights green and indicates that the charger is correctly connected to the computer. When you connect an
empty rechargeable battery, the LED on the USB charger cable goes off and indicates that the battery is
being charged. The USB charger cable is so designed that reversed polarity is not possible.
fully charged, the LED display on the USB charger cable lights green again.
조립과 작동 방법
charging unit (USB charger cable) also supplied. If you at-
4
battery charger or any other type of charger, this may result
4
You can recharge the rechargeable battery with the respective
. The LED on the USB charger cable
Digital version
