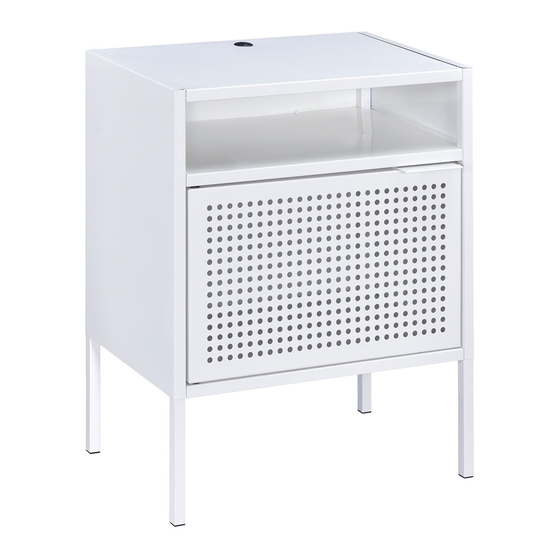

- Page 1 Ember Nightstand WHITE NIGHSTAND W/ USB Item #: CEB700NSE ASSEMBLY INSTRUCTIONS...
- Page 2 ASSEMBLY INSTRUCTIONS Item #: CEB700NSE Please identify and locate all assembly parts (see parts list) before discarding any packing materials. Some parts may have become loose during transit. PARTS LIST SKETCH DESCRIPTION BACK SIDE FRAME 2PCS TOP PANEL SHELF PANEL BOTTOM PANEL BACK PANEL MADE IN TAIWAN...
- Page 3 SKETCH DESCRIPTION DOOR PAENL DOOR BUCKLE HINGE INSERT 2PCS 4PCS 16 x 16mm SHORT BOLT 12PCS 3/16" x 12mm MADE IN TAIWAN...
- Page 4 SKETCH DESCRIPTION SCREW 2PCS 3 x 12mm LONG BOLT 2PCS ALLEN KEY MADE IN TAIWAN...
- Page 5 Step 1: 1.Insert Cap (10) into Side Frame (1) as shown. 2.Attach Back Panel (5) to Side Frame (1) as shown. 3.Attach Top Panel (2) to the assemble in Step 1 -2 using Short Bolt (11) as shown. 3 11 Step 2: 1.Install Door Buckle (8) onto the Shelf Panel (3) 2.Attach Shelf Panel (3) to the assemble in Step 1 using Short Bolt (11) as shown.
- Page 6 Step 3: 1.Insert Hinge Insert (9) into Shelf Panel (3) and Bottom Panel (4) as shown. 2.Install Door Panel (6) onto Hinge Insert (9) and then attach Bottom Panel (4) using Short Bolt (11). Step 4: 1.Install Long Bolt (13) onto the hole as shown.
- Page 7 Step 5: Install Usb (7) onto the Top Panel (2) as shown. Complete. Congratulations on your assemble success.
