Edge-Core ECS1100-5P Quick Start Manual

Quick Start Guide
L2 Gigabit Ethernet Web Managed PoE Switches
ECS1100-5P | ECS1100-10HP
1.
L2 Gigabit Ethernet Web Managed PoE Switch
2.
Rack mounting kit—2 brackets and 6 screws
3.
Power cord
5 6
1. System LEDs
2.
Reset button
3.
4 x 10/100/1000M RJ-45 PoE+ (30 W) ports
4.
1 x 10/100/1000M RJ-45 port
5.
Grounding point
6. AC power socket
1.
PoE Over Budget: Red (PoE budget exceeded)
2. System: Green (OK)
3.
Power: Green (OK)
4.
Reset Button: Press for 10 seconds to reset to factory defaults
1

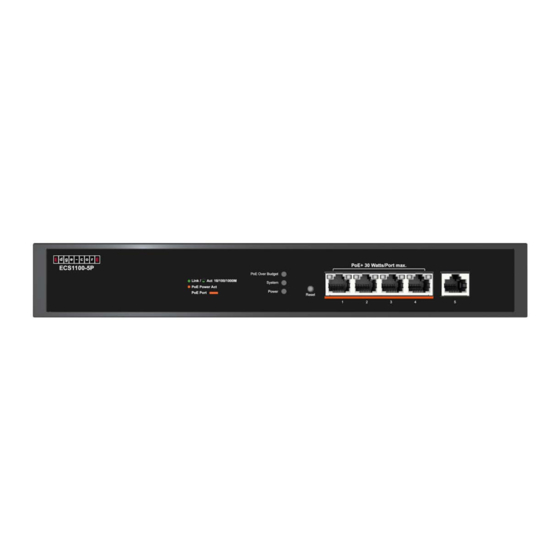

ECS1100-5P
1 2 3
System/Port LEDs & Buttons
1
2
4
3

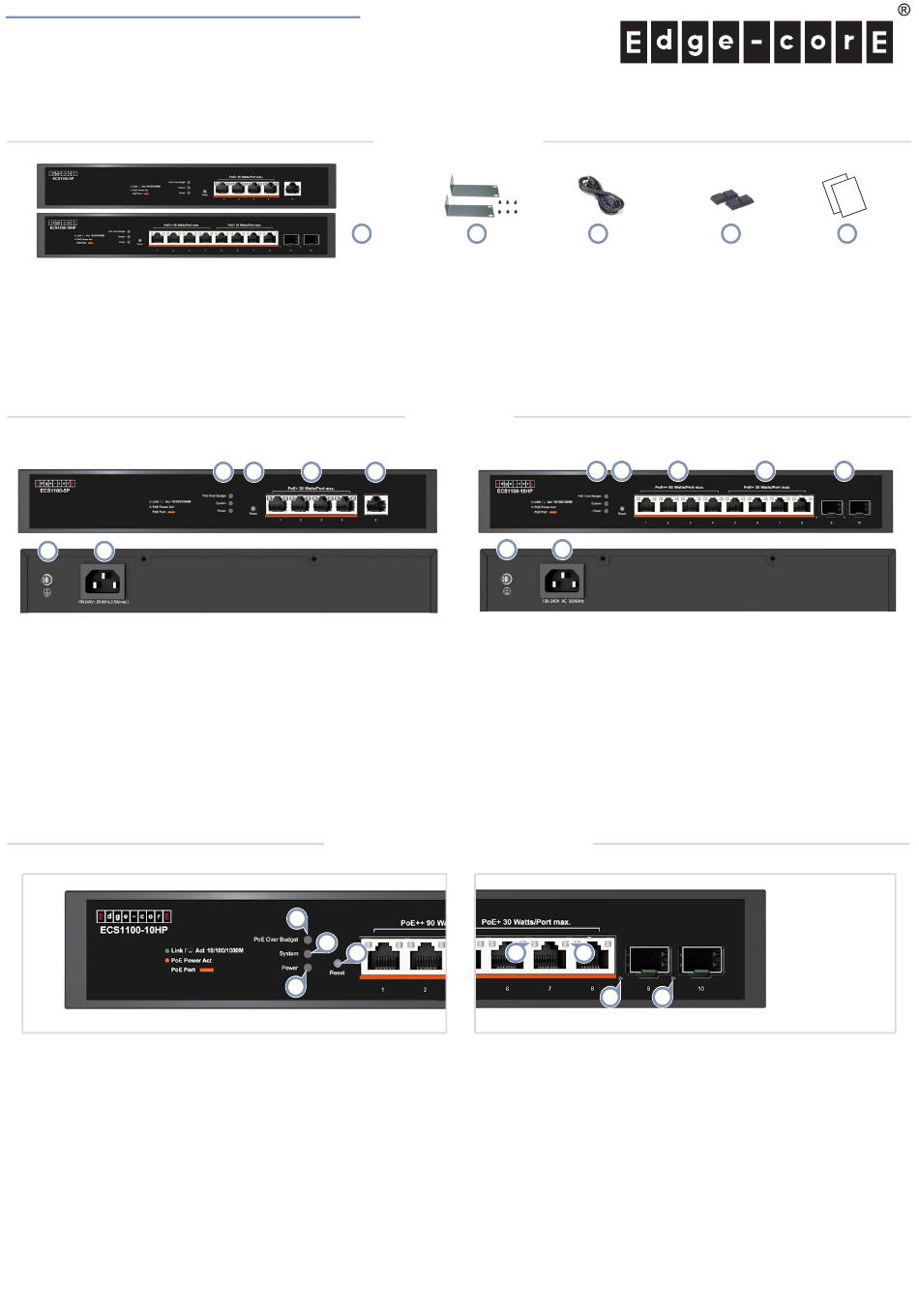

Package Contents
2
4.
Four adhesive rubber feet
5. Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
4
6
1. System LEDs
2.
Reset button
3.
4 x 10/100/1000M RJ-45 PoE++ (90 W) ports
4.
4 x 10/100/1000M RJ-45 PoE+ (30 W) ports
5.
2 x 100/1000M SFP ports
6. Grounding point
7.
AC power socket
5
5.
RJ-45 Ports: Green/Blinking (link/activity), Amber (PoE)
6.
SFP Ports: Green/Blinking (link/activity)
– 1 –
www.edge-core.com
3 4
ECS1100-10HP
1 2 3
7
5
6 6
5
4 5
E082023-CS-R01
