4.2 CONTROLS IDENTIFICATION

1. Ignition Switch (Figure 4-2). The ignition switch
is used to start the engine and has three positions;
OFF, ON, and START.
2. Mower Deck Switch (Figure 4-2). Use to engage
and disengage the mower drive system. Pulling up
on the switch will engage the deck drive. Pushing
down on the switch will disengage the deck drive.
3. Engine Choke Control (Figure 4-2). Use to start a
cold engine.
4. Engine Throttle Control (Figure 4-2). Use to
control the engine speed. Pushing the lever forward
increases engine speed. Pulling the lever back
decreases engine speed. Full back position is the
IDLE position. Full forward is the cutting position.
5. Left Steering Control (Figure 4-2). Use to control
the mower's left wheel when traveling forward or
reverse.
6. Right Steering Control (Figure 4-2). Use to control
the mower's right wheel when traveling forward or
reverse.
7. Brake Pedal (Figure 4-1). Depressing the brake
pedal applies the brake.
8. Parking Brake Lock Latch (Figure 4-2). Use to
lock the parking brake in the engaged position.
Fully depress the brake pedal and pull the parking
brake lock latch back to lock the parking brake in the
engaged position. See Figure 4-3. Fully depress the
brake pedal forward to disengage the parking brake
lock latch, then release the brake pedal to disengage
the brake. See Figure 4-4.

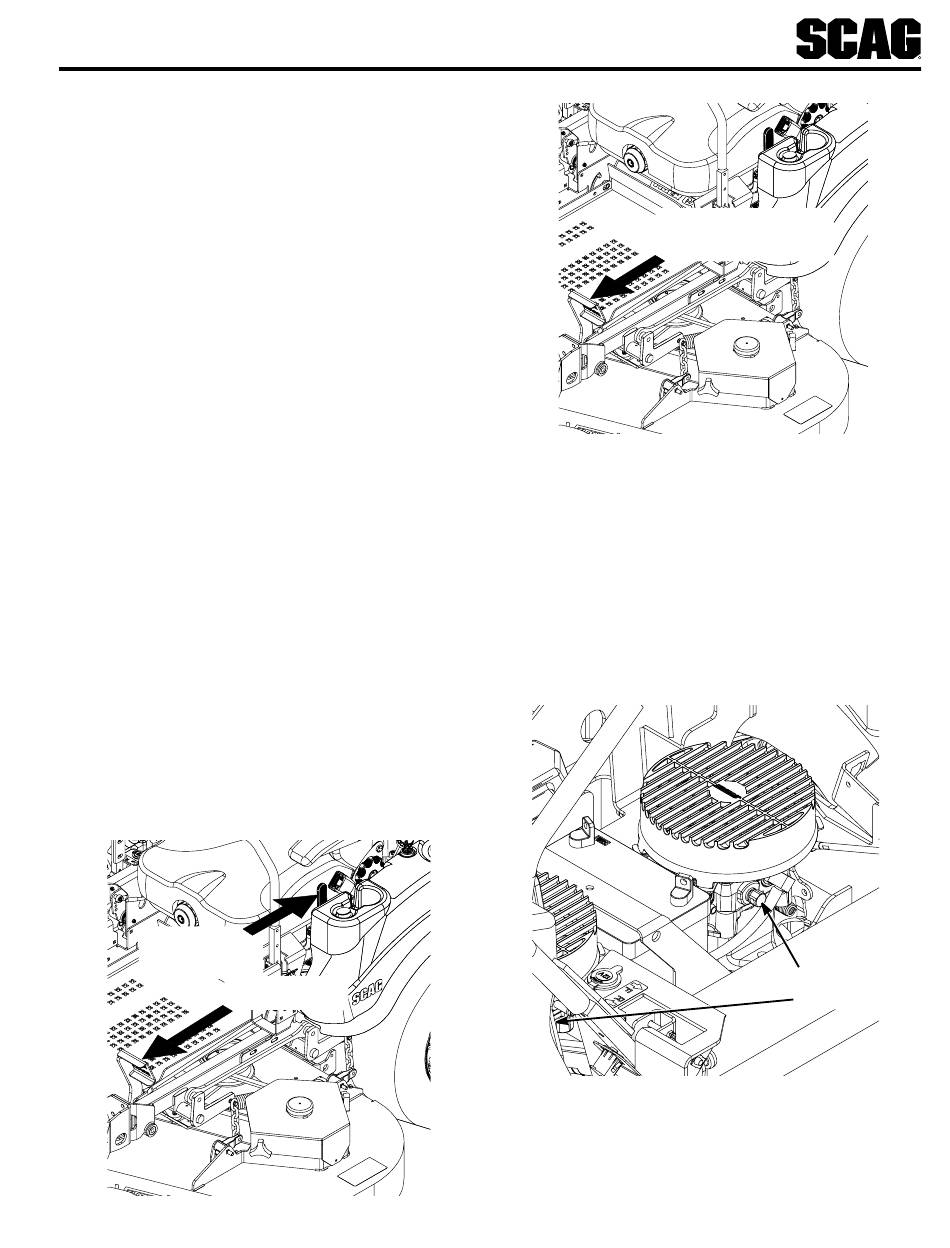

PULL BACK ON
PARKING BRAKE
LATCH
PUSH BRAKE
PEDAL FORWARD
Figure 4-3. Engaging Parking Brake
Figure 4-4. Releasing the Parking Brake
9. Fuel Tank Gauge (Figure 4-2). Indicates the
amount of fuel in the fuel tank.
10. Dump Valve Control Levers (Figure 4-5). Located
on the hydraulic pumps, used to "free-wheel" the
mower. Rotating clockwise until they stop allows
the unit to move under hydraulic power. The levers
must be in this position and torqued to 10 lb-ft during
operation of the mower. Rotating counter-clockwise
allows the mower to be moved by hand (free-
wheeling). See Figure 4-5.
Figure 4-5. Dump Valve Control
11. Deck Lift Foot Lever (Figure 4-2). Use to raise and
lower the cutter deck. Push full forward to lock in the
transport position.
19
PUSH BRAKE PEDAL
FORWARD THEN RELEASE
PEDAL TO DISENGAGE
DUMP VALVE
CONTROL
R
