Unleashed H550 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to set up
your Unleashed H550 Dual Band 802.11ax Multimedia Wi-Fi Access Point
Wall Switch. After completing the steps described in this guide, you will be
able to access the H550 Access Point Wall Switch and begin providing
wired and wireless network access to users. The rest of this document
refers to the H550 Access Point Wall Switch as the H550.
The Unleashed H550 has many options:
• It can be mounted on a standard USA- or EU-style single-gang wall
outlet box.
• It can be powered by a customer-supplied IEEE 802.3af- or 802.3at, or
IEEE 802.3bt-compliant PoE switch or injector, or can be powered by an
optional customer-ordered DC power adapter.
• It has side slots for one or two bypass cables. The mounting bracket has
locating hooks to keep the bypass cables aligned with the slots when
attaching the H550 to the mounting base.
• It can have a 3W customer-supplied USB device plugged in. The USB
device is very difficult to remove after the H550 is attached to the
mounting base.
About Peripheral Devices
The H550 can supply power to USB devices and PoE-powered devices, and
the power supplied depends on the PoE power supplied to the H550.
• The USB port can supply power up to a maximum of 3W. The port is
intended for customer-specific USB peripherals.
• The LAN4 + PoE Out port is intended for PoE-powered peripheral
devices such as IP telephones.
TABLE 1 H550 Power Options and Available Power for PoE Out and USB
H550 Power Source Power Availablity
PoE_Out
802.3af Disabled
802.3at 8.4W (@PD, 20m)
12.4W (@PD, 20m)
Disabled
802.3bt, PoH, uPoE, 12.95W (@PD,
DC Power 100m)
Copyright © 2021 CommScope, Inc. All rights reserved.
Published September 2021, Part Number 800-72903-001 Rev A
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版
docs.commscope.com/?docs-box.
• Vous trouverez la version française de ce guide à l'adresse suivante
http://docs.commscope.com/?docs-box.
• このガイドの日本語版は
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트
docs-box) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
docs.commscope.com/?docs-box
• Puede ver la versión en español (América Latina) de esta guía en
docs.commscope.com/?docs-box
Before You Begin
Before deploying Ruckus products, please check for the latest software and
the release documentation.
• Release Notes and other user documentation are available at
support.ruckuswireless.com/documents.
• Software upgrades are available at
software.
• Open source information is available at
opensource.ruckuswireless.com/open_source.
Package Contents
• H550 Access Point Wall Switch
• Mounting bracket
• Two 6-mm M3x0.5 Torx flat head machine screws
• Two 1-inch 6-32 Phillips pan head machine screws
• Product warranty statement
• Regulatory flyer
• Declaration of Conformity, if required
• This Quick Setup Guide
Step 1: Collecting Tools and Setup Requirements
• No. 2 Phillips screwdriver and T10 Torx driver for the mounting bracket
screws
• A standard USA- or EU-style single-gang wall outlet box
• One of the following:
– Customer-supplied IEEE 802.3af/at/bt-compliant PoE switch and
USB
customer-supplied Ethernet cable
– Customer-supplied IEEE 802.3af/at-compliant PoE injector and
Disabled
customer-supplied Ethernet cable
– Customer-ordered DC power adapter (RUCKUS part number
Enabled
902-2170-XX00, sold separately)
• An Ethernet cable with or without PoE run through the wall from your
Disabled
LAN through the wall outlet box
• A PC with an Ethernet port and a wireless card with customer-supplied
Enabled
Cat 5e or better Ethernet cable
Enabled
• (Optional) One or two separate bypass cables run through the outlet
box
http://
で
http://docs.commscope.com/?docs-box
(http://docs.commscope.com/?
http://
http://
http://
http://support.ruckuswireless.com/
http://
Step 2: Connecting the AP to Power and Your
Network
1. After removing your Unleashed AP from its package, connect it to
your network switch or router using an Ethernet cable.

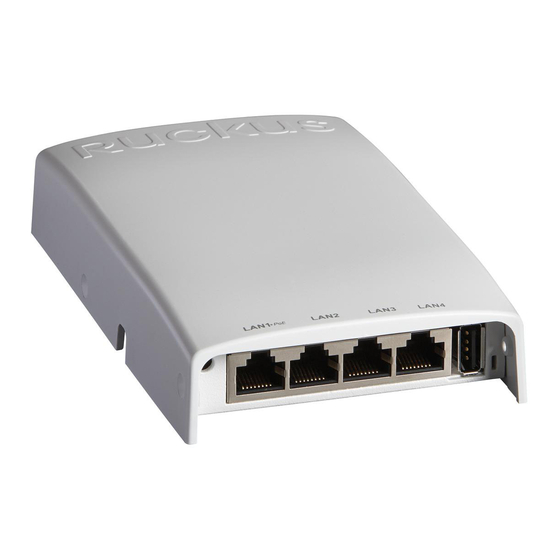

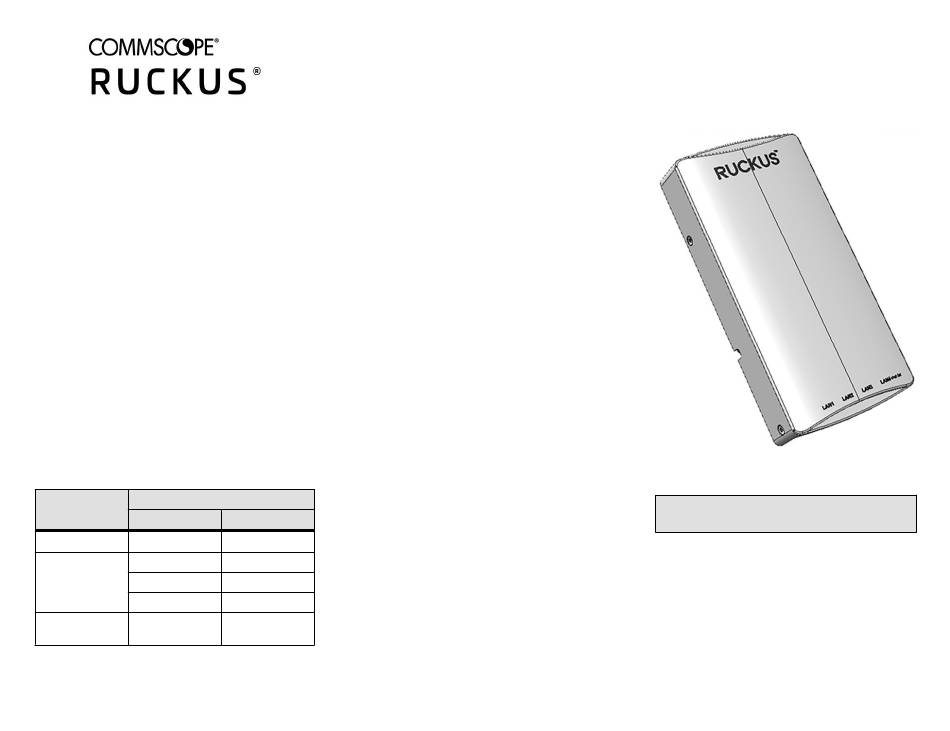

FIGURE 1 Front view
2. Using an AC adapter (sold separately), connect the AP 48V DC port to
a protected power source.
NOTE: If you will be using PoE, then you will need a Cat 5e (or
better) Ethernet cable to connect the AP to the PoE injector or
switch.
3. Verify that the PWR LED on the rear of the enclosure is green. LED
may be solid or blinking.
