Delton 95x - Wireless Headset Manual

Table of Contents

Contents

1 SPECIFICATIONS
2 WHAT'S IN THE BOX
3 PRODUCT DIAGRAM
4 PAIRING WITHOUT USB DONGLE
5 PAIRING WITH USB DONGLE
6 CHARGING THE DEVICE
- 6.1 Charge the Device Directly
- 6.2 Charge Case and the Device
7 CALL FUNCTIONS
8 GENERAL FUNCTIONS
9 WEAR ON THE LEFT OR RIGHT
10 LED INDICATOR
11 SAFETY INSTRUCTION
12 Documents / Resources
- 12.1 References
- 12.2 Download manual

SPECIFICATIONS

BT Version:	5.0
Operation Range:	30 Ft
Headset Talk Time:	Up to 14Hrs
Case Capacity:	Up to 60 Hrs
Charging Time:	Less than 2Hrs
Stand-by Time:	Upto 240 Hrs
Charging Port:	Type-C

WHAT'S IN THE BOX

Wireless Headset
Charging Case
Auto-Pair USB Dongle
Multi-Size Ear Gels
USB-C Charging Cable
User Manual

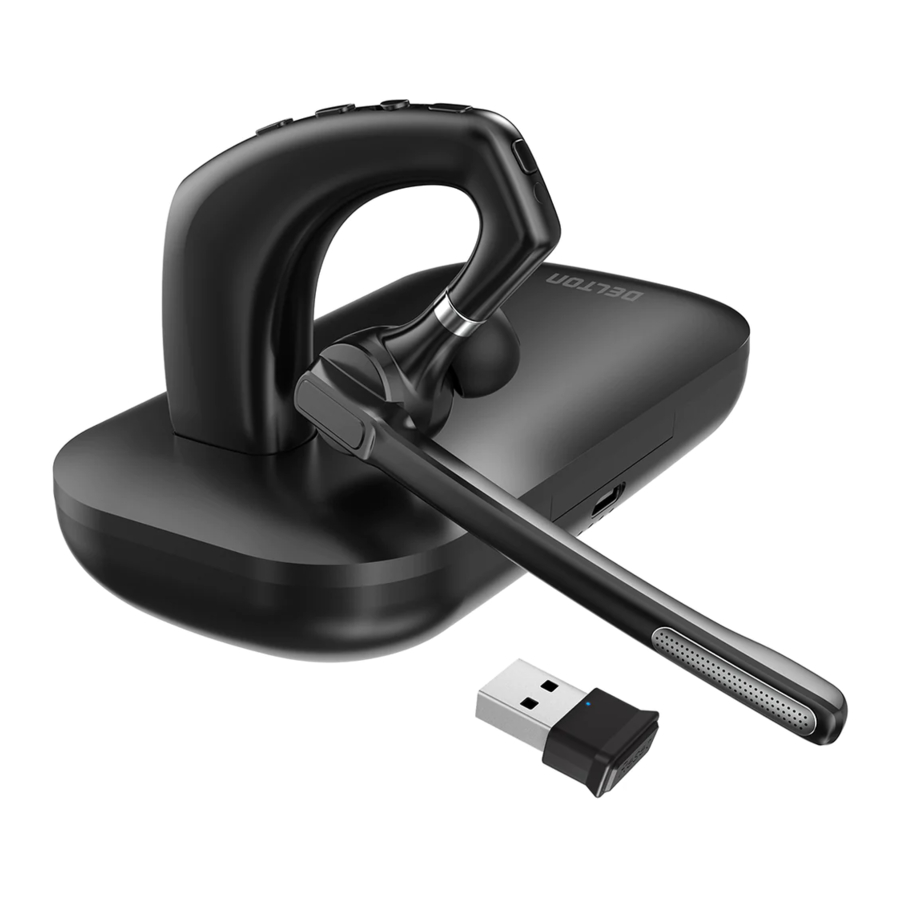

PRODUCT DIAGRAM

PAIRING WITHOUT USB DONGLE

NOTE: Before first time use charge your headset for at least 3 hours

While headset is off, toggle the Power button to the ON position. Headset will automatically enter into pairing mode.
- If headset does not automatically enter pairing mode, plug it in to enter charging state, then press and hold the Volume+ and Volume - buttons at the same time to clear any existing pairing and start again with the above instruction.
Navigate to your device's Bluetooth Settings menu to search for nearby Bluetooth accessories.
Find the "Delton 95X" and click it to initiate pairing.
Wait up to 30s and your device will show that the headset is paired.

PAIRING WITH USB DONGLE

NOTE: Before first time use charge your headset for at least 3 hours

While headset is off, plug the USB dongle into your PC/laptop.
Toggle the Power button to the ON position. Headset will automatically enter into pairing mode.
- If headset does not automatically enter pairing mode, plug it in to enter charging state, then press and hold the Volume+ and Volume - buttons at the same time to clear any existing pairing and start again with the above instruction.
Wait up to 30s and your device will show that the headset is paired.

CHARGING THE DEVICE

Connect the USB-A connector of your charging cable (included) to a PC/laptop or a USB power adapter (not included).

Two Ways to Charge:

Charge the Device Directly

Connect the USB-C connector of your charging cable to the headset. The headset LED will light up solid red while headset is charging.
The headset LED turns off when headset is fully charged. Remove the charging cable.

Charge Case and the Device

Connect the USB·C connector of your charging cable to the case. The case LED will blink a white color while case (and headset) are charging.
All 4 case LEDs will shine a steady white when the case (and headset) is fully charged. Remove the charging cable.

CALL FUNCTIONS

Answer Call:	Short press "MFB" to answer an incoming call
End Call:	Short press "MFB" to hang up the call
Reject Call:	Long press "MFB" for 1 sec to reject incoming calls
Mic Mute/Unmute:	Short press the Mute Microphone Button

GENERAL FUNCTIONS

Power
Power On:	Toggle Power button to "On" position.
Power Off:	Toggle Power button to "Off" position.
Connectivity
Clear Pairing:	While headset is charging, press and hold the Vol + and Vol - buttons at the same time.
Playback
Play/Pause:	Press "MFB"
Previous Track:	Long press 'Vol +"
Next Track:	Long press "Vol -"
Volume Control
Raise Volume:	Short press "Vol+"
Lower Volume:	Short press "Vol -"

WEAR ON THE LEFT OR RIGHT

WEARING THE UNIT ON THE LEFT OR RIGHT
To wear the headset on your other ear, rotate the boom upwards then twist it around so the eartip is on the other side before lowering the boom. Rotate the eartip and adjust the retractable earhook to fit the shape of your ear.

LED INDICATOR

Headset LED
Power On:	Blue LED will flash once
Power Off:	Red LED will flash once
Pairing Mode:	Blue/Red LED will alternate
Low Battery:	Red LED will blink repeatedly
Charging:	Red LED steady on
Charging Complete:	LED off
Case LED
Low Battery:	1 White Steady LED
Charging:	White LED blinking
Charging Complete	4 White Steady LEDs

SAFETY INSTRUCTION

Do not place headset near naked flames such as candles, near high heat sources such as oven, or in direct sun light.
Press buttons gently. Hard presses may shorten lifetime of product.
Do not drop on hard surface.
Keep away from appliances that generate strong magnetic fields to avoid signal disruptions. If headset or receiver are affected by signal disruption, turn off and back on again to reset.
Keep away from children. Eating this product may cause injury or death.
PRODUCT CONTAINS A LITHIUM ION BATTERY.
Do not open or disassemble this product.
Keep product away from liquids.
