WHAT'S IN THE BOX?

Please take a moment to read this user manual thoroughly, and keep it for future reference. This manual explains the features and functions of this product.

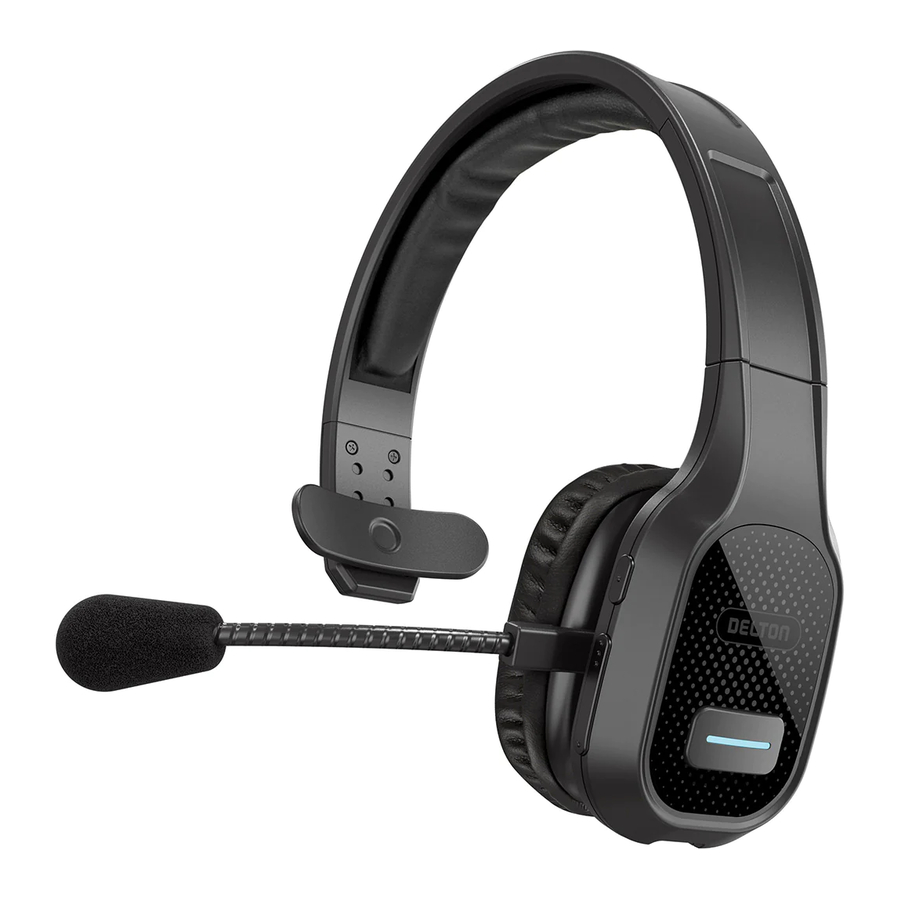

Wireless Headset
Type-C Charging Cable
Type-C to 3.5mm Audio cable
User Manual

PRODUCT DESCRIPTION

PAIRING TO ONE DEVICE

While headset is off, press and hold "MFB" for 5-7 seconds to enter pairing mode. The LED will alternate flashing blue and red.
In your phone's or your PC's BT pairing screen, click DELTON20X to connect to the headset. The LED will slow flash blue when the headset is connected.

PAIRING TO TWO DEVICES

Follow BT PAIRING INSTRUCTIONS with first phone or PC then turn off BT function of first phone or PC.The headset will enter pairing mode automatically and LED will alternate flashing blue and red.
Turn on the BT function of second phone or PC to search and connect to DELTON20X. The LED will slow flash blue when the headset is connected.
Turn on BT function of first phone or PC, click to reconnect "DELTON20X"on BT lists. Headset is connected with two devices
* Music can only be played from one device under two connections, when you want to play music from another device, you need to pause or close the music of the previous device.

GENERAL FUNCTIONS

Power

Turning On:	Press and hold "MFB" for 3 seconds
Turning Off:	Press and hold "MFB" for 5 seconds

Wireless Connectivity

Clear Pairing:

When headset is ON, hold down the "MFB" and "Volume+" button for 5 seconds

Playback

Play/Pause:	Press "MFB"
Previous Track:	Long press "Volume -"
Next Track:	Long press "Volume +"

Volume Control

Raise Volume:
Lower Volume:	Press "Volume -"

CALL FUNCTIONS

Answer Call:	Short press "MFB" to answer an incoming call
End Call:	Short press "MFB" to hang up the call
Reject Call:	Long press "MFB" for 1 second to reject incoming calls
Mute Mic:	Short press the Mute Microphone Button
Mic On (Unmute):	Short press the Microphone Mute Button
Redial Last Number:	Double click "MFB" to redial the last dialed phone number (when phone is in standby or playback mode).
Three-Party Call:	Double click "MFB" to hold the current call and connect to the new call. Double click "MFB" again to switch between the reserved call and the current call (short pressing will end the call)

POWER SAVING FUNCTIONS

Automatic Shutdown:	Automatically shuts down when there is no connection for more than 30 minutes.
Work With Cable:	Take the Type-Cto 3.5mm audio cable, plug the Type-C end to Headset charge port, plug 3.5mm end to phone or PC port.

LED INDICATOR

Mode	Indicator
Power ON	Blue LED flash 3 times
Power OFF	Red LED flash 3 times
Pairing Mode	Blue and Red LED flashing alternately
Delete Pairing Record	Blue and Red LED flash once at the same time
Reconnect Mode	Blue LED flash twice every 5 seconds
Unconnected Standby Mode	Blue LED flash 2 times every 2 seconds
Connected Standby Mode	Blue LED flash 3 times every 8 seconds
Playing Music	Blue LED flashes 1 time every 6 seconds
Dialing/Talking	Blue LED flashes 1 time every 6 seconds
Low Battery	Red LED flash 2 times every 2 seconds
Charging	Red LED is steady on
Full Charged	Solid Blue LED
Mic Mute	Red LED flashes 1 time every 6 seconds

CHARGING

Please charge the DELTON20X when you see the red LED flash. Charging time is about 1.5 hours. The solid red LED will change to a solid blue LED when the headset is fully charged. Please connect to the DELTON20X charging port through the Type-C end of Type-C charging cable, USB end to the charger, can be used as car charger, travel charger, computer USB, etc.

SPECIFICATIONS

Driver:	36mm	Impedance:	32 ohms
Play Time:	Up to 40 Hours	Wireless:	V5.2
ChargingTime:	Upto 2 Hours	Operation Range:	30 Ft
Stand-byTime:	Up to 400 Hours	Battery:	400mAh Lithium
Frequency Range:	2.40Ghz-2.48Ghz	Charging Interface:	Type-C
