SPECIFICATIONS
| Play Time: | Up to 110 Hours |
| Talk Time: | Up to 100 Hours |
| Charging Time: | Up to 4 Hours |
| Stand-by Time: | Up to 90 Days |
| Battery: | 500mAh |
| Impedance: | 32 ohms |
| Operation Temperature: | -10-50°C |
| Operation Range: | 30 Ft |
| Charging Interface: | Type-C |
| Net Weight: | 17g |
WHAT'S IN THE BOX
- Wireless Headset
- Type-C Charging Cable
- Eartips x 6 (Includes one on headset)
- User Manual

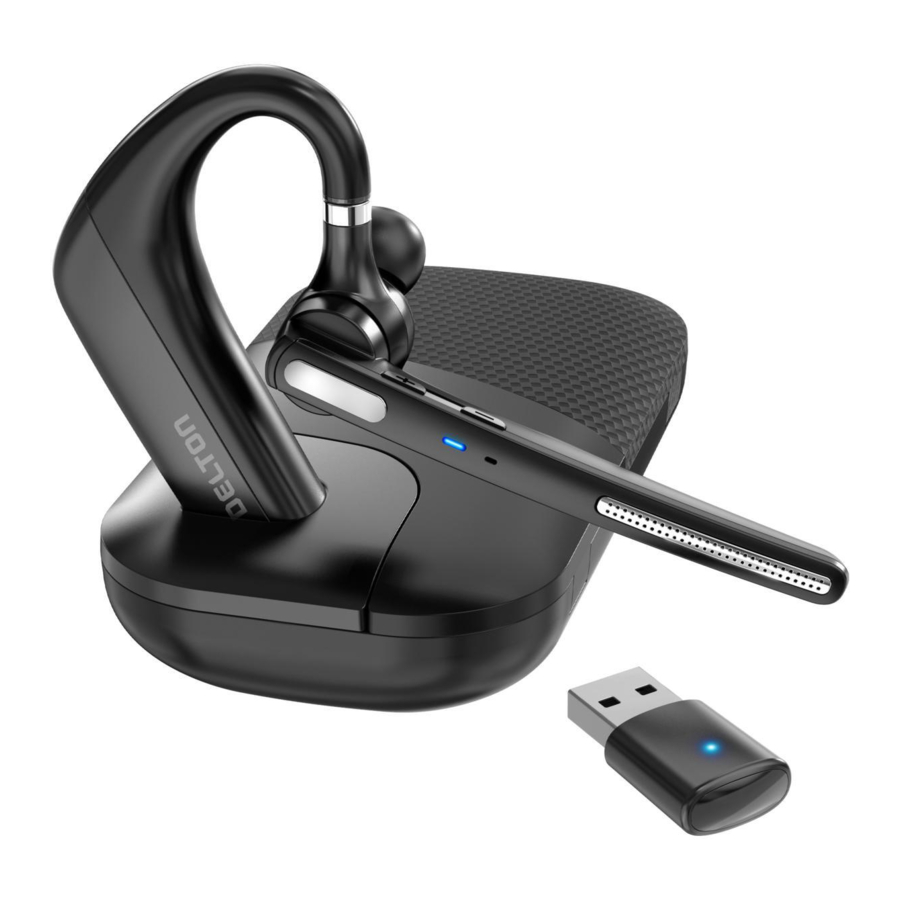

PRODUCT DIAGRAM
- MFB (Multi Function Button)
- Volume+
- Volume-
- Mute Button
- LED Indicator
- Main Microphone
- Second Microphone
- Charger Port
PAIRING AND CONNECTION
In off status, press MFB to power on and automatically enter into pairing mode with LED Green & Red flash alternately.
- Connect for the first time, search and click to connect "DELTON 90X"on lists, LED off after connected success.
- When there is a pairing record, press MFB to power on and enter into the auto-connect state.
WEAR ON THE LEFT OR RIGHT
To wear the headset on your other ear, rotate the boom upwards then twist it around so the eartip is on the other side before lowering the boom. Rotate the eartip and adjust the retractable earhook to fit the shape of your ear.
GENERAL FUNCTIONS
| Button | Function | Operation |
| MFB | Power On | In off status, press MFB to power on. |
| Power Off | In on status, long press 5 seconds to power off. | |
| Enter into Pairing Mode | In off status, automatic enter into pairing mode. | |
| Connection | Connect for the first time, search and click to connect "Delton 90X" on lists. When there is a pairing record, power on and enter into the auto-connect state. | |
| Answer a Call | Short press (when call coming) | |
| Hang up a Call | Short press (during a call) | |
| Reject a Call | long press 1 sec(when call coming) | |
| Play/ Pause | Short press (when play music) | |
| Siri | Double press to activate Siri | |
| Volume + | Volume Up | Short press |
| NextTrack | Long press for 1 seconds | |
| Volume - | Volume Down | Short press |
| Previous Track | long press for 1 seconds | |
| Mute | Mute/Unmute | Short Press |
LED INDICATOR
| Mode | Delton 90X |
| Power On | LED Green flashes 1 second |
| Power Off | LED Red flashes 1 second |
| Pairing Mode | LED Red & Green flashes alternately |
| Connection Success | LED Red & Green off |
| Low Battery | Red LED flash |
| Charging | Solid LED Red |
| Full Charged | Solid LED Green |
CHARGING
Connect the headset to a computer or the USB power adapter (not included) via the USB cable. Plug the USB power adapter into an electric socket.
Charging with Charger
Charging with PC
Your new headset has enough power to pair and make a few calls before charging, though you may charge at any time.
SAFETY INSTRUCTION
- Do not place headset near naked flames sources. Such as candle or oven.
- Do not expose the product to direct sunlight.
- Press function bottom gently; Press too hard might shorten the lifetime of function.
- Do not drop the product on hard surface. This may result in damage of the product.
- Do not place headset near TV, speaker or other objects that generate strong magnetic fields.
- When headset is affected by a strong magnetic field or by other interference simply turn off to reset headset to resume normal operation.
Documents / ResourcesDownload manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
