SPECIFICATIONS

Please take a moment to read this user manual thoroughly, and keep it for future reference. This manual explains the features and functions of this product.

Driver:	32Q	Impedance:	300Q2
Noise Canceling:	DSP ENC	Wireless:	V5.0
Play Time:	Up to 30 Hours	Operation Range:	30 Ft
ChargingTime:	Upto 2 Hours	Battery:	350mAh Li-polymer
Stand-by Time:	Upto 110 Hours	Charging Interface:	Type-C

Dimension:
Headset: 191.20*138.28*61.60mm
Charging Dock: ~ 70*74.91*79.64

WHAT'S IN THE BOX?

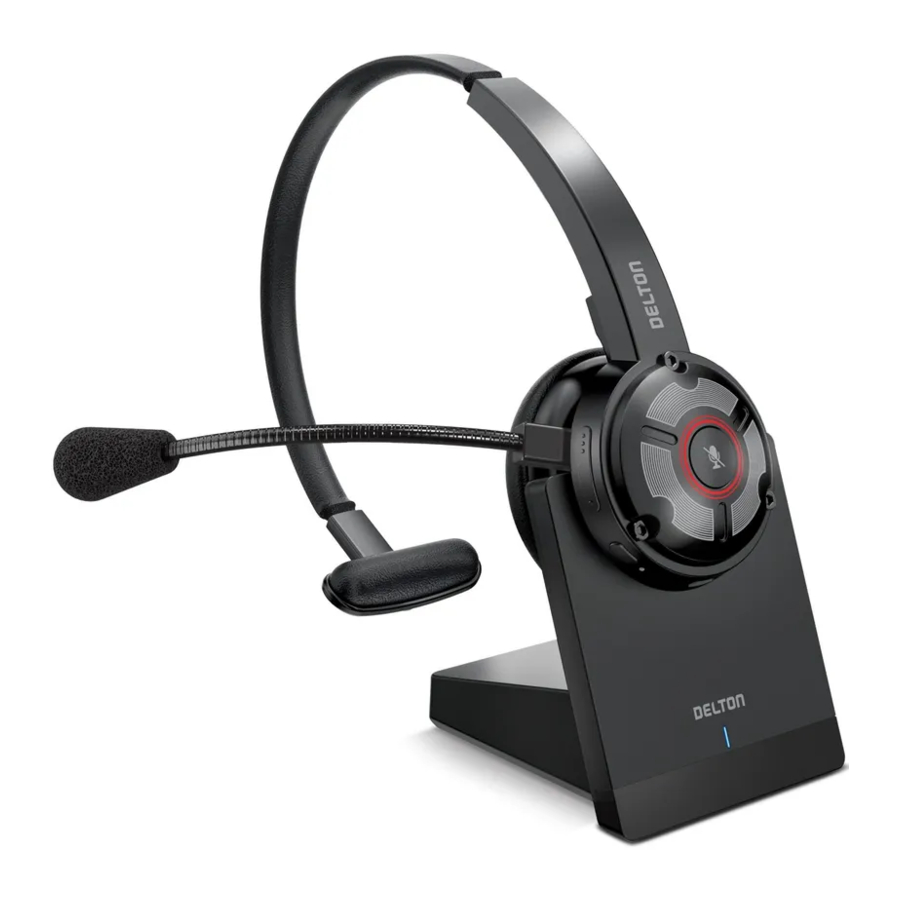

Wireless Headset
Charging Dock
Type-C Charging Cable
User Manual

PRODUCT DESCRIPTION

PAIRING TO ONE DEVICE

While headset is off, press and hold "MFB" for 4-6 seconds to enter pairing mode. The LED will alternate flashing blue and red.
In your phone's or your PCs BT pairing screen, click DELTON50X to connect to the headset. The LED will slow flash blue when the headset is connected.

PAIRING TO TWO DEVICES

Follow BT PAIRING INSTRUCTIONS with first phone or PC then turn off BT function of first phone or PC. The headset will enter pairing mode automatically and LED will alternate flashing blue and red.
Turn on the BT function of second phone or PC to search and connect to DELTONS50X. The LED will slow flash blue when the headset is connected.
Turnon BT function of first phone or PC, click to reconnect "DELTONS50X"on BT lists. Headset is connected with two devices now.

* Music can only be played from one device under two connections, when you want to play music from another device, you need to pause or close the music of the previous device.

GENERAL FUNCTIONS

Power
Turning On:	Press and hold "MFB" for 2-3 seconds
Turning Off:	Press and hold "MFB" for 2-3 seconds
Wireless Connectivity
Clear Pairing:	When headset is ON, hold down the "MFB" and "Volume+" button for 5 seconds.
Playback
Play/Pause:	Press "MFB"
Previous Track:	Long press "Volume-"
Next Track:	Long press "Volume+"
Volume Control
Raise Volume:	Press "Volume+"
Lower Volume:	Press "Volume-"

CALL FUNCTIONS

Answer Call:	Short press "MFB" to answer an incoming call
End Call:	Short press "MFB" to hang up the call
Reject Call:	Long press "MFB" for 1 second to reject incoming calls
Mute Mic:	Short press the Microphone Mute Button
Mic On (Unmute):	Short press the Microphone Mute Button
Redial Last Number:	Double click "MFB" to redial the last dialed phone number (when phone is in standby or playback mode).
Three-Party Call:	Double click "MFB" to hold the current call and connect to the new call. Double click "MFB" again to switch between the reserved call and the current call (short pressing will end the call)

POWER SAVING FUNCTIONS

Automatic Shutdown: Automatically shuts down when there is no connection for more than 10 minutes.

LED INDICATOR

Mode	Indicator
Power ON	Blue LED flash 2 times
Power OFF	Red LED flash 2 times
Pairing Mode	Blue and Red LED flashing alternately
Clear Record	Blue and RED LED flash 1 time
Connected Standby Mode	Blue LED flash every 10 seconds
Playing Music	Blue LED flash every 10 seconds
Dialing/Talking	Blue LED flash every 10 seconds
Low Battery	Red LED flash
Charging	Red LED is steady on
Full Charged	Red LED will turn off
Mic Mute	Red LED flashes 1 time every 6 seconds

INSTRUCTIONS FOR THE DOCK

Set up: Plug the included USB cable into any USB outlet, adapter, or even PC/laptop. Plug the USB-C end of the cable into the charging dock.
NOTE: LED indicator is on the dock, not on the headset.

CHARGING

Please charge the DELTON50X when you see the red LED flash. Charging time is about 2 hours. The solid red LED will turn off when the headset is fully charged. Two ways to charge the DELTON50X:

Charge On Dock
Use the included USB-C cable and connect the docking station into either a USB outlet/adapter or to a computer. Rest headset on the dock foritto charge.

Charge Headset Directly
Use the included USB-C cable and connect it to eithera USB outlet/adapter orto a computer. Plug the Type-C end of the cable into the headset.
