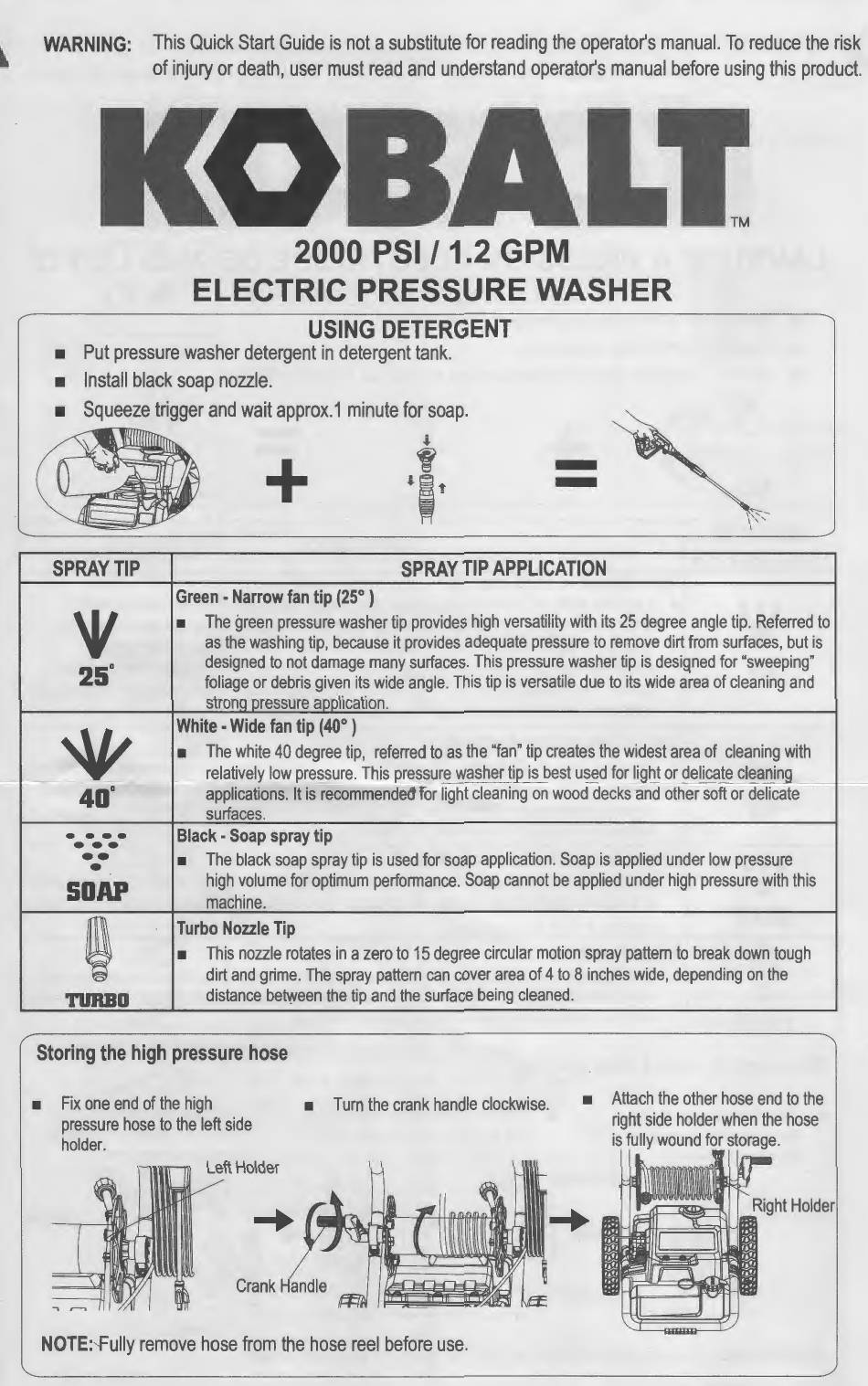

Kobalt KBT2000 Manual

-
WARNING: This Quick Start Guide is not a substitute for reading the operator's manual. To reduce the risk
of injury or death, user must read and understand operator's manual before using this product.
2000 PSI/1.2 GPM
ELECTRIC PRESSURE WASHER
USING DETERGENT
• Put pressure washer detergent in detergent tank.
• Install black soap nozzle.
• Squeeze trigger and wait approx.1 minute for soap.
+
- -
SPRAY TIP SPRAY TIP APPLICATION
Green · Narrow fan tip (25° )
'V
•
The green pressure washer tip provides high versatility with its 25 degree angle tip. Referred to
as the washing tip, because it provides adequate pressure to remove dirt from surfaces, but is
25"
designed to not damage many surfaces. This pressure washer tip is desiQned for "sweeping"
foliage or debris given its wide angle. This tip is versatile due to its wide area of cleaning and
stronq pressure application.
~
White· Wide fan tip (40° )
•
The white 40 degree tip, referred to as the "fan" tip creates the widest area of cleaning with
relatively low pressure. This pressure washer tip is best used for light or delicate cl! a.fllng
40"
applications. It is recommended for light cleaning on wood decks and other soft or delicate
surfaces.
•••• Black · Soap spray tip
•••
••
•
The black soap spray tip is used for soap application. Soap is applied under low pressure
•
SOAP
high volume for optimum performance. Soap cannot be applied under high pressure with this
machine.
~
Turbo Nozzle Tip
•
This nozzle rotates in a zero to 15 degree circular motion spray pattern to break down tough
dirt and grime. The spray pattern can cover area of 4 to 8 inches wide, depending on the
TURBO
distance between the tip and the surface being cleaned .
Storing the high pressure hose
• Fix one end of the high
pressure hose to the left side
holder.
• Turn the crank handle clockwise.
• Attach the other hose end to the
right side holder when the hose
is fully wound for storage.
NOTE:--Fully remove hose from the hose reel before use.
