Steps for getting started
with your WDT3200 mobile
device
1. Unpack
Open the box and remove all the pieces from
their protective packaging.
Parts included: 3200 Unit, Battery, Power
Adapter, Exchangeable Plug Adapters,
Recharge and Data Transfer Cable, Hand
Strap, Stylus, Stylus Holder, Stylus Retainer
Cord
2. Remove the Protective Film
Remove the protective film from the top
window and red scanner window on the front
of the unit.
3. Open the Battery Compartment
On the back of the unit, slide the battery
compartment latch toward the bottom of
the unit and lift the battery compartment
door off of the unit.
IMPORTANT: In the battery compartment,
on the left side there is an on/off switch.
Make sure it is in the on position before
inserting the battery.
On
Off
4. Install the Battery
The plastic battery removal strip should be
sticking up at the bottom of the battery
compartment and should stick out after the
battery is inserted or it will be very difficult
to remove the battery.

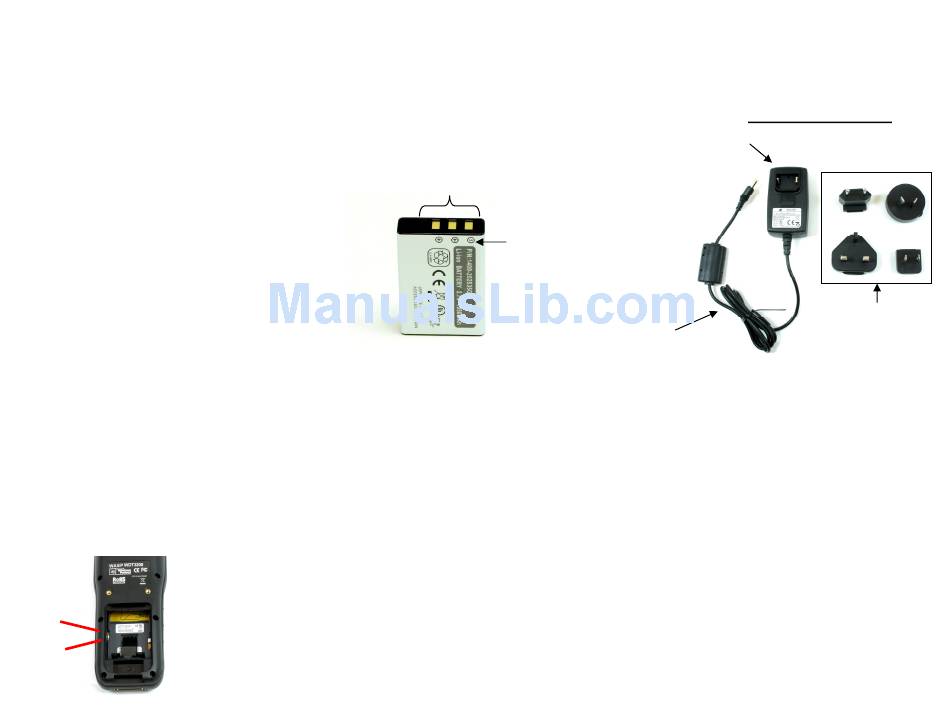

On the battery there are three gold
contacts on one of the short ends of the
battery.
Contacts
Terminal Symbols
Insert the gold contacts into the battery
compartment first. The terminal symbols
should be on top + T – when the battery is
inserted.
Slide the battery in and press down on the
back until the battery snaps into place. To
remove the battery pull the battery
removal strip toward the bottom of the unit.
Replace the battery compartment door
and hand strap.
5. Prepare the Battery Adapter
Prepare the battery adapter by removing the
black connection protector from the wall plug
adapter. The connection protector is labeled
"Please remove before use". Next, choose
the wall plug adapter that matches your
country and snap it into place on the plug
adapter.
Plug the small end of the plug adapter cord
into the Recharge and Data Transfer cable
and the plug end into a power source. Plug
the recharge cable into the 3200 unit and
charge for 12 hours before first use.
Plug
Adapter
specific wall
Recharge and
plug adapters
Data Transfer
Cable
6. Pistol Grip
If have the optional pistol grip, remove the
hand strap by grasping the strap near the
bottom of the unit. Move the strap down
and away from the unit. The hand strap
clip will come out of the unit and expose
the battery compartment. The other end of
the hand strap is connected with Velcro
and can be removed by separating the
Velcro halves.
Two screws to attach the pistol grip will
either be in a bag that came with the grip
or they will be attached to the inside of the
grip in two small screw holders. Remove
them before attaching the grip.
Country-
