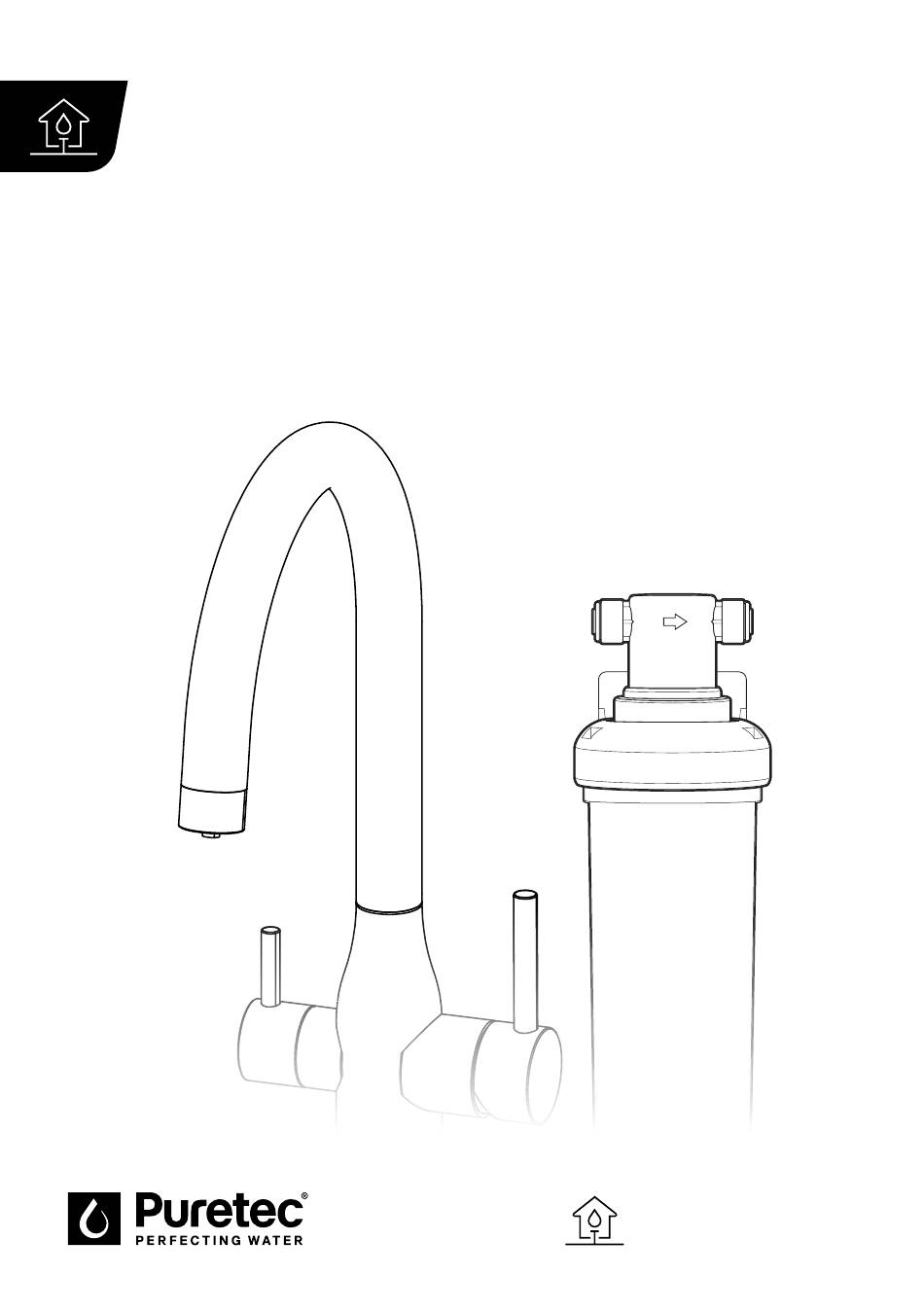

- Page 1 Z1-Tripla ™ Elite Quick Twist Filter System with a Tripla™ Elite Mixer Tap User Guide M A I N S W A T E R...
-
Page 2: Table Of Contents
Preparing Your System ........................ 13 Tap Installation ..........................14 Filter Installation ..........................15 Cartridge Installation/Changeout ..................16 Replacements ..........................17 Warranty .............................. 18 AS 3497 Licence No. WM 74617 Pro-Switch Pty Ltd Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... -
Page 3: Puretec Customer Service
Introduction Puretec Customer Service Thank you for purchasing Puretec Z1 Tripla™ Elite water filter system. Your system is a proven performer manufactured from only quality materials and components and will give years of ‘spring fresh’ water free of impurities if maintained properly. -
Page 4: Servicing
Puretec stockist. Important: We do not recommend the dismantling of any internal part of the mixer as this will breach your warranty. Tapware Technical Information Puretec mixer taps can be used in conjunction with: • Pressure storage hot water system. •... -
Page 5: Dimensions & Models
Dimensions & Models Fig. 1 - Z1 Tripla™ Elite 10 Series Dimensions Depth: 77 Model Code Colour Z1-E10-CH Chrome Z1-E10-BN Brushed Nickel Z1-E10-BG Brushed Gold Z1-E10-GM Gunmetal Z1-E10-MB Matt Black Z1 Tripla™ Elite User Guide... - Page 6 Dimensions & Models Fig. 2 - Z1 Tripla™ Elite 20 Series Dimensions Depth: 77 Model Code Colour Z1-E20-CH Chrome Z1-E20-BN Brushed Nickel Z1-E20-BG Brushed Gold Z1-E20-GM Gunmetal Z1-E20-MB Matt Black Installation & Operation Manual Copyright © Puretec Pty Ltd 2023...
-
Page 7: Tap Assembly
Tap Assembly Fig. 3 - Tap Assembly Mixer Tap Rubber O-ring Rubber Washer Sink Faucet Metal Washer Hole (Ø35mm) Retaining Plate & Screws COLD FILTER/RAIN Z1 Tripla™ Elite User Guide... -
Page 8: Parts Diagram
31. Threaded Tube 5. Hot Water Hose 32. O-ring 33. Rubber Washer 6. Cold Water 34. Metal Washer Hose 7. Filtered Water 35. Retaining Hose Plate & Screws 36. Tap Adaptor Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... - Page 9 Parts Diagram Fig. 10 Parts Diagram - Tripla Elite 20 Models 1. Spout 5. Washer 2. Washer 6. Filter Insert 3. Aerator Insert 7. Aerator Cap 4. Aerator Cap 8. Inner Tube 9. Gasket 10. Spout Spigot Assembly 11. Washer 12.
-
Page 10: Installation Diagram
For metal tube remove burrs and chamfer tube end to prevent O-Ring seal being damaged. Tube is secured in position. DISCONNECTION PROCEDURE Push collet against body and slide tube out of fitting. 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... -
Page 11: Smarttee
SmartTee™ Figure 13 - SmartTee™ Quick Connect Fitting Turn the quick connect nut on the SmartTee™ anticlockwise Cut the tube square and push into into the tube stop (inside to release the collet. the collet). For metal tube; remove burrs and chamfer tube end to prevent O-ring seal being damaged. -
Page 12: Water Connections
Alternative fittings may be required if being connected to anything other than an existing 15 mm (½”) copper pipe (copper pipe NOT included). No electrical or drainage requirements needed. 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... -
Page 13: Use Guidelines
Use Guidelines Use Guidelines • Minimum operating pressure 172 kPa. • Maximum operating pressure 500 kPa. • Do not allow exposure to temperatures below 0°C, protect from freezing. • Maximum operating temperature 38°C. • Nominal flow rate 5.5 Lpm. • This system must be installed according to local plumbing codes on the cold water line. -
Page 14: Tap Installation
5. Screw the retaining plate up hand tight to secure the tap into position. 6. Finally, tighten each retaining plate screw against the metal washer to secure tap firmly into place. Washers & Retaining Plate 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... -
Page 15: Filter Installation
Filter Installation Filter Installation This system comes complete with an installation kit enabling it to be connected to 15 mm (½”) male thread. Installation Note: A water filter system/tap, like any product, has a limited life and may eventually fail. Also sometimes failure happens early due to unforeseen circumstances. To avoid possible property damage, this product should be regularly examined for leakage and/ or deterioration and replaced when necessary. -
Page 16: Cartridge Installation/Changeout
5. Turn on the water and check for leaks. If leaks occur, repeat step 4. If leaks persist, discontinue use and call your supporting dealer. 6. Flush filter for 5 minutes before use or until water runs clear. 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2023... -
Page 17: Replacements
Replacements Replacement of Ceramic Disc Cartridge & Filter Spindle Hot/Cold Ceramic Disc Cartridge • Unscrew and remove the hot/cold water handle. Unscrew and remove the cartridge grub screw with an Allen key. • Remove the handle cap. Unscrew and remove the dome cap. •... -
Page 18: Warranty
Applicable to all above, is that the warranties need to be approved by Puretec to ensure product was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s discretion, including chargeable inspection and labour costs incurred. - Page 19 Warranty Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. This warranty is provided in addition to other rights and remedies you have under law: Our goods come with guarantees which cannot be excluded under the Australian Consumer Law.
- Page 20 Register your warranty online within 30 days of your product purchase. Simply scan the QR code or visit puretecgroup.com/warranty & complete the form. Terms and conditions apply. Proof of purchase must be retained. Go to puretecgroup.com for full details Register your warranty online within 30 days of your product purchase.
